Tigerrig manufacture Factory High End Oilfield API-6C Hard seal mud gate valve

< >

Features
Specification

Tigerrig manufacture Factory High End Oilfield API-6C Hard seal mud gate valve

Production Description：

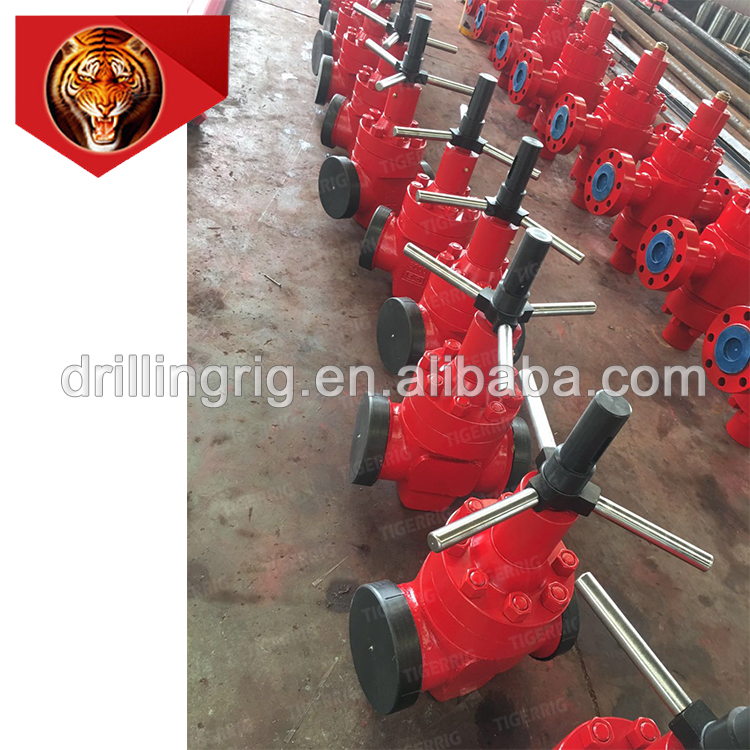

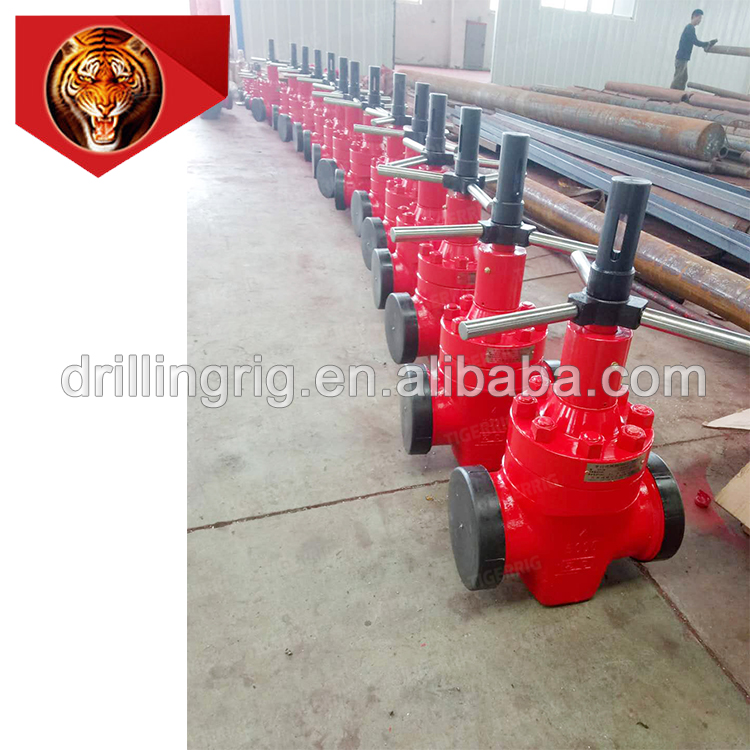

Z23Y, Z43Y, Z63Y series hard-sealed mud gate valves are mainly used for drilling fluid manifolds, petrochemicals and other industrial high-pressure pipelines

Tigerrig Metal to metal sealing gate valve (2).jpg

Tigerrig Metal to metal sealing gate valve (1).jpg

Tigerrig Metal to metal sealing gate valve (3).jpg

Tigerrig Metal to metal sealing gate valve (4).jpg

Specifications

Model	Z23Y-35-DN50	Z23Y-35-DN65	Z23Y-35-DN80	Z23Y-35-DN100	Z43Y-70-DN50	Z43Y-70-DN65	Z43Y-70-DN80	Z43Y-70-DN100
Work pressure	35	35	35	35	70	70	70	70
The way to	2 1/16	2 9/16	3 1/8	4 1/16	2 1/16	2 9/16	3 1/16	4 1/16
Working medium	mud	mud	mud	mud	mud	mud	mud	mud
Connection Type	Union	Union	Union	Union	Flange	Flange	Flange	Flange
Connector connection size	Trl1206 (Trl10012)	Trl1306 (Trl1206)	Trl150*6	Trl180*8	B*152	B*153	B*154	B*155
Structure length (L)	230	235	270	330	356	380	430	520
