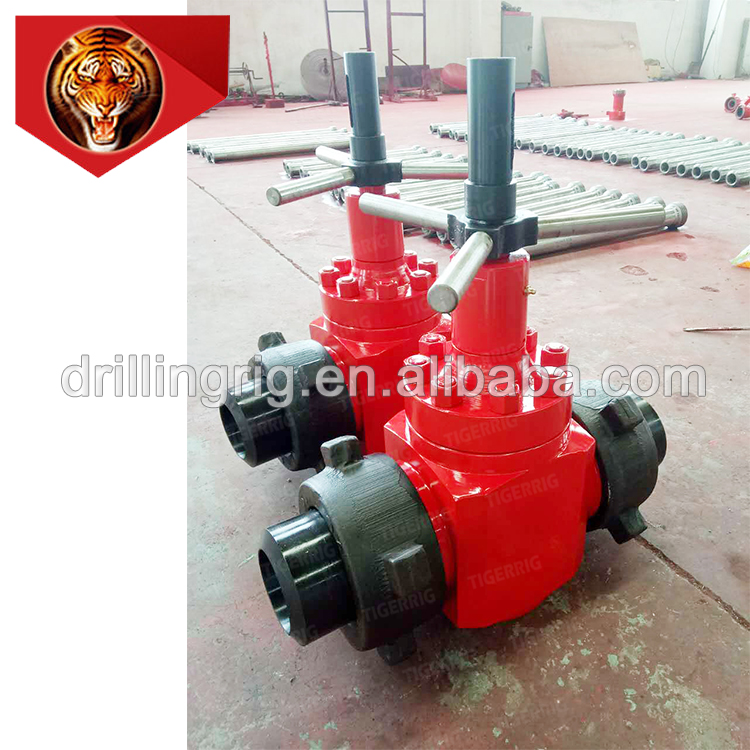

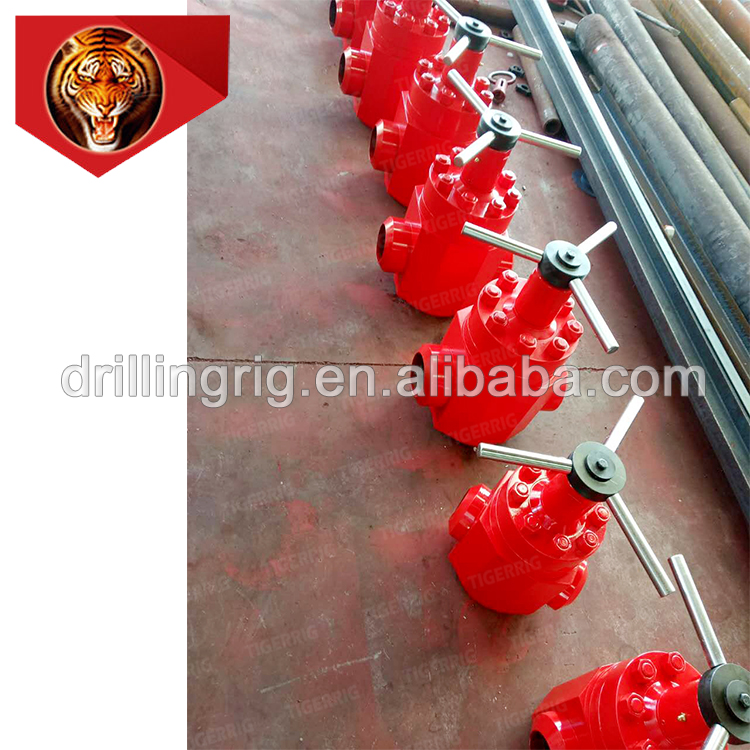

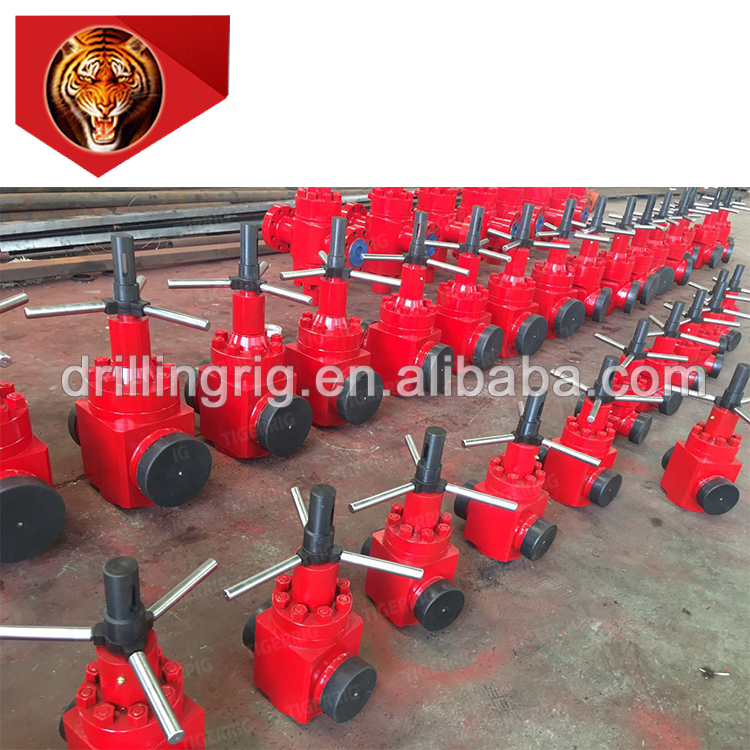

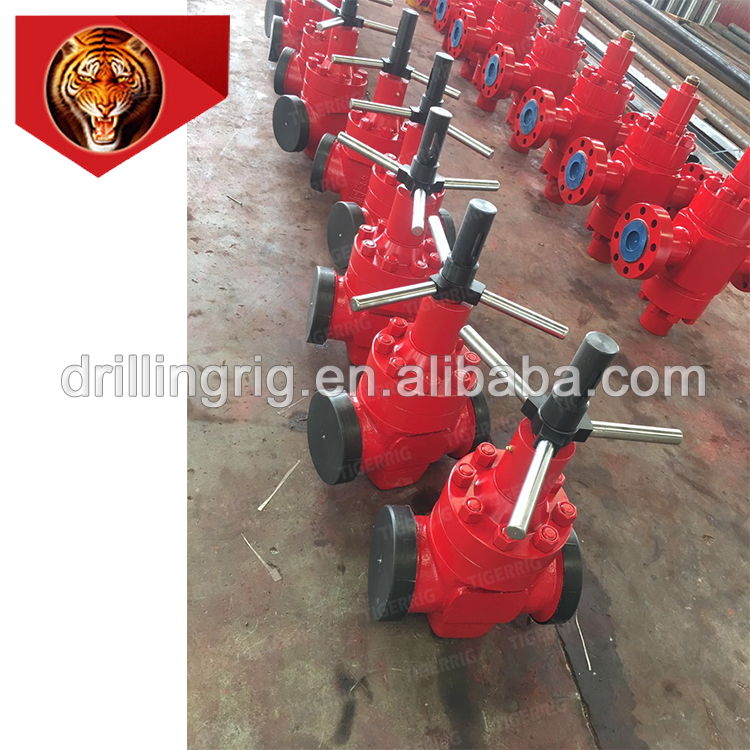

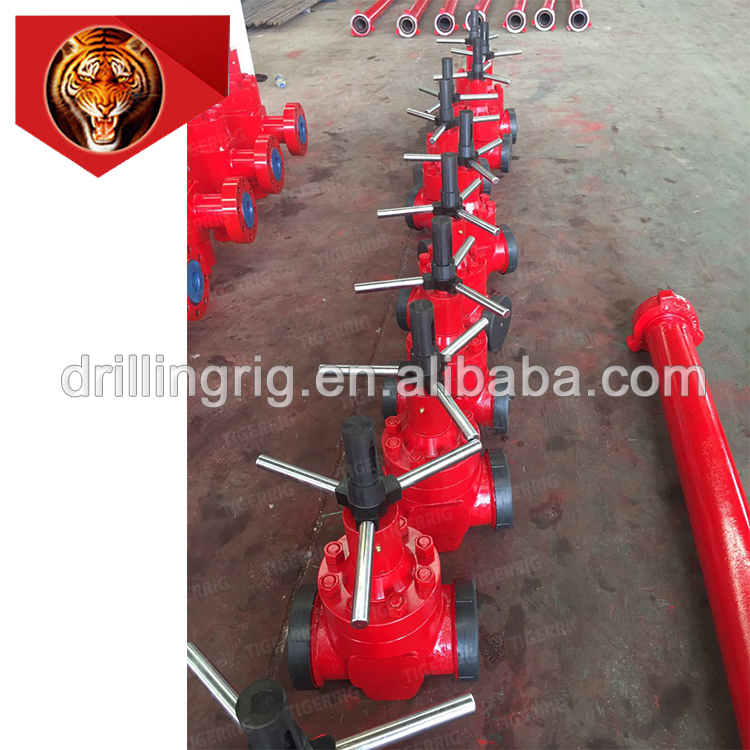

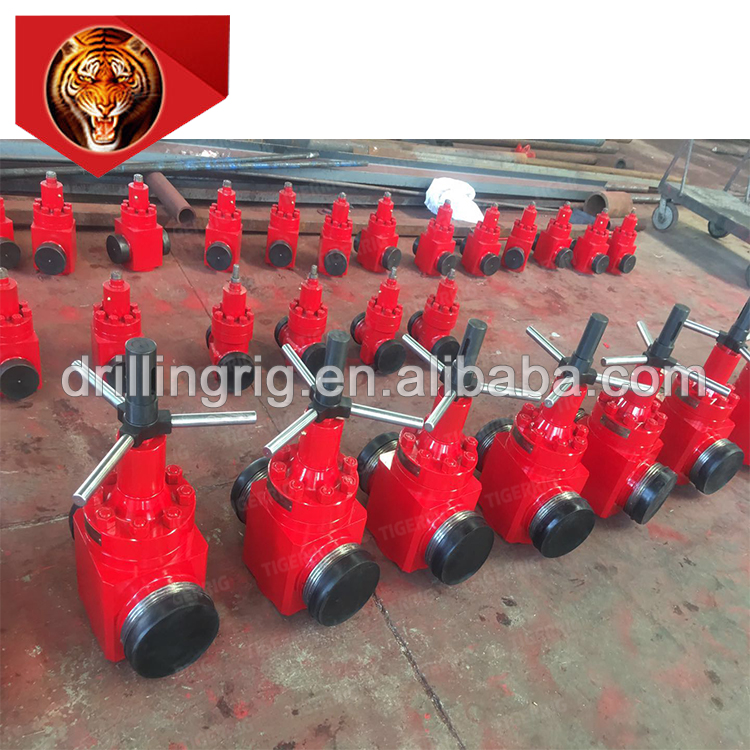

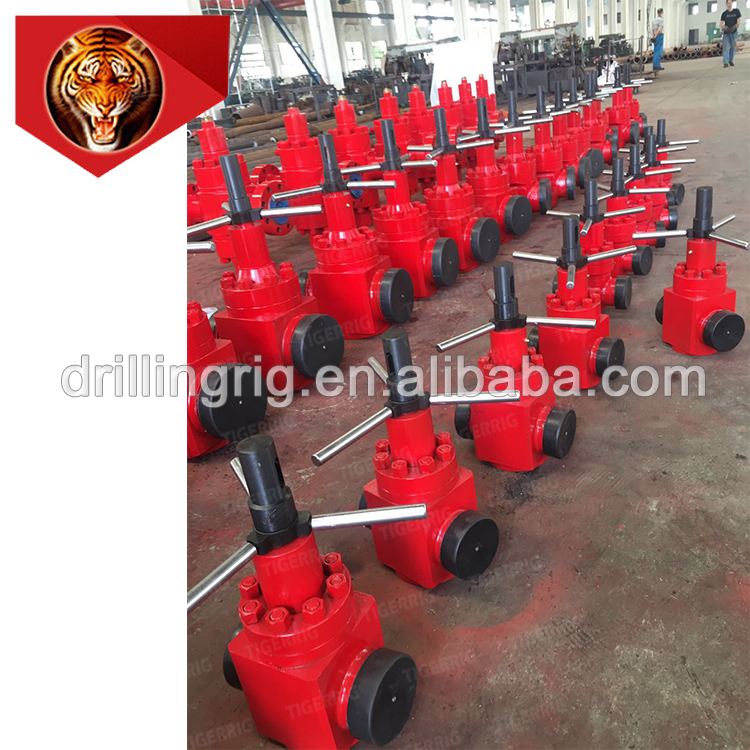

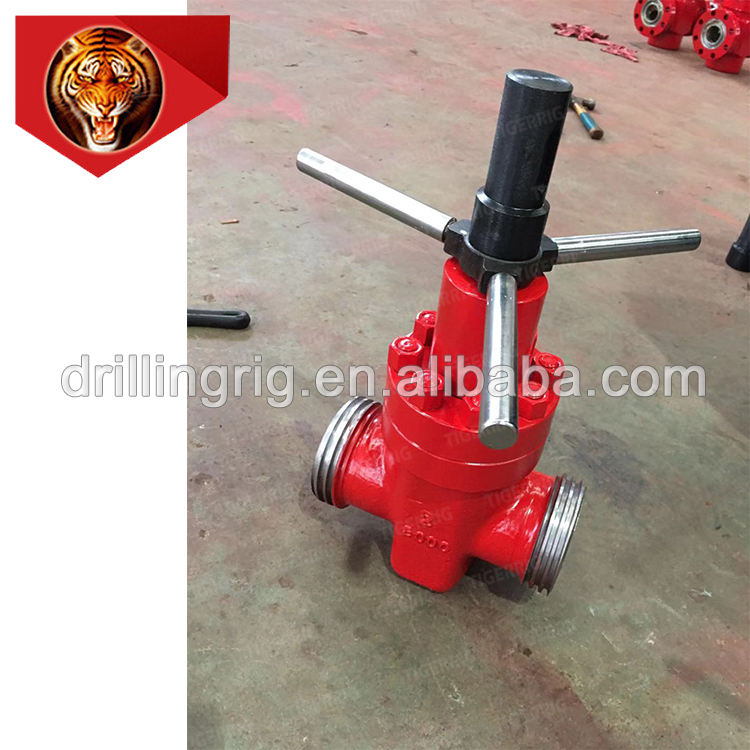

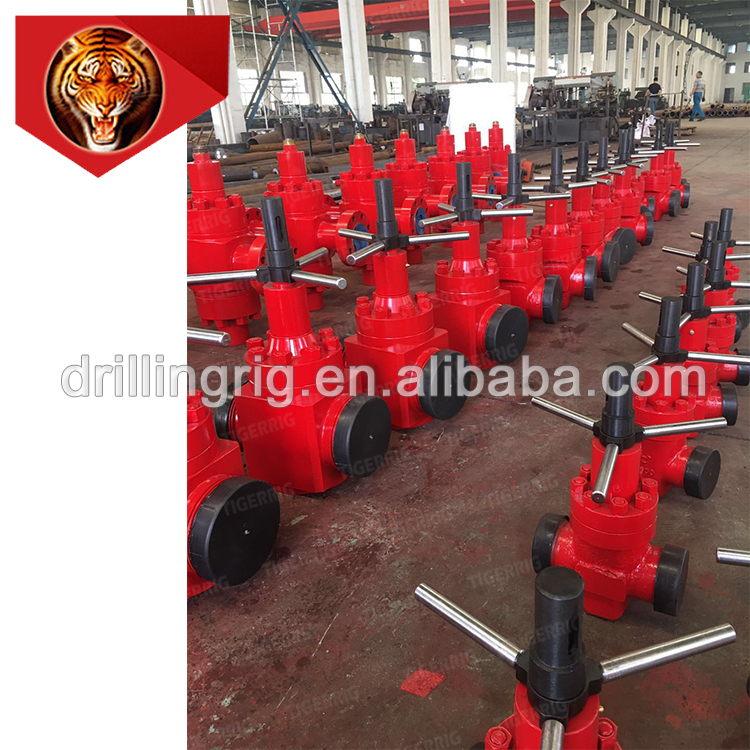

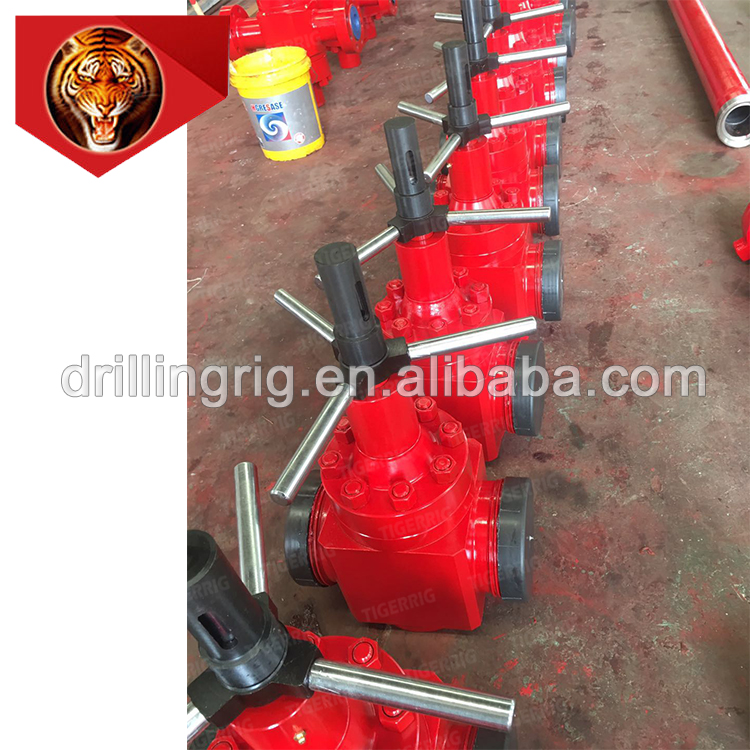

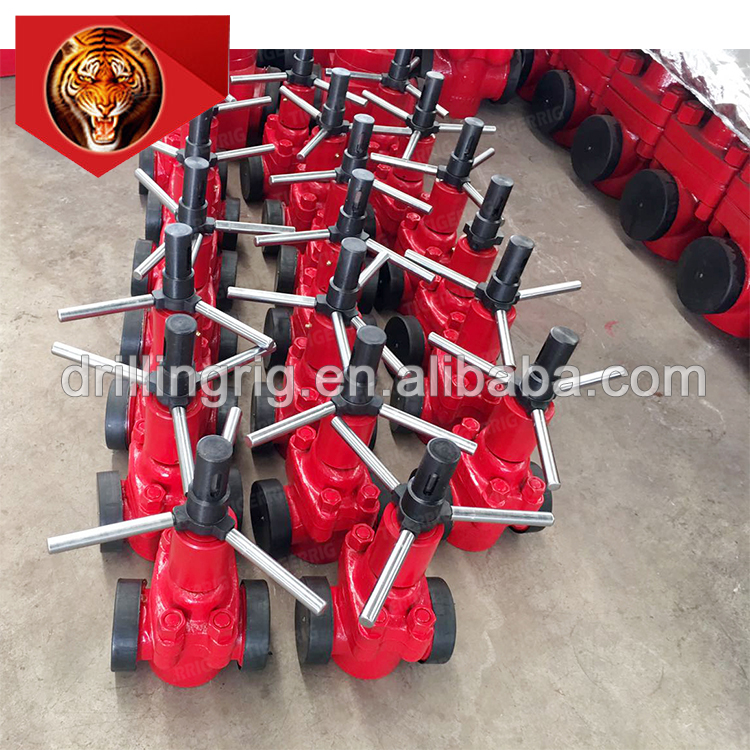

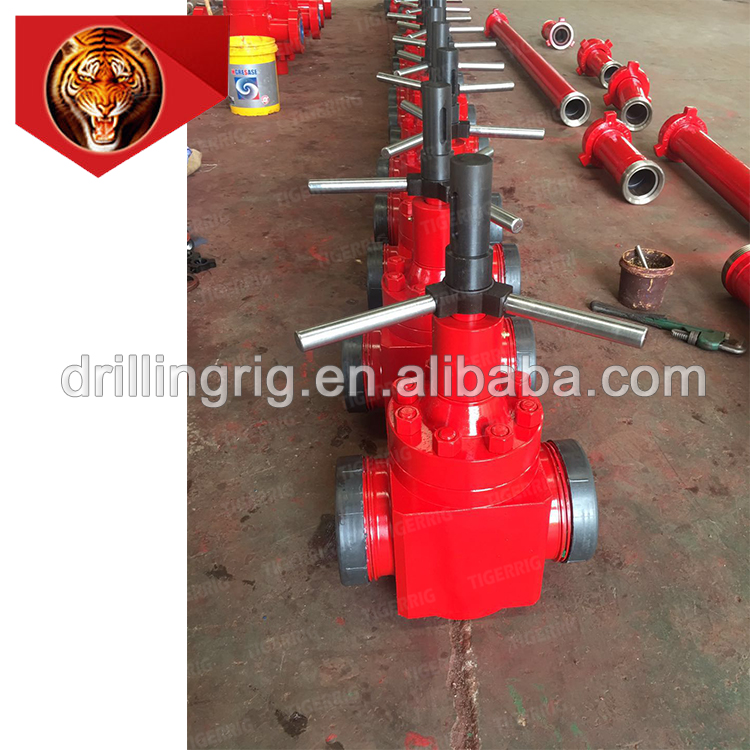

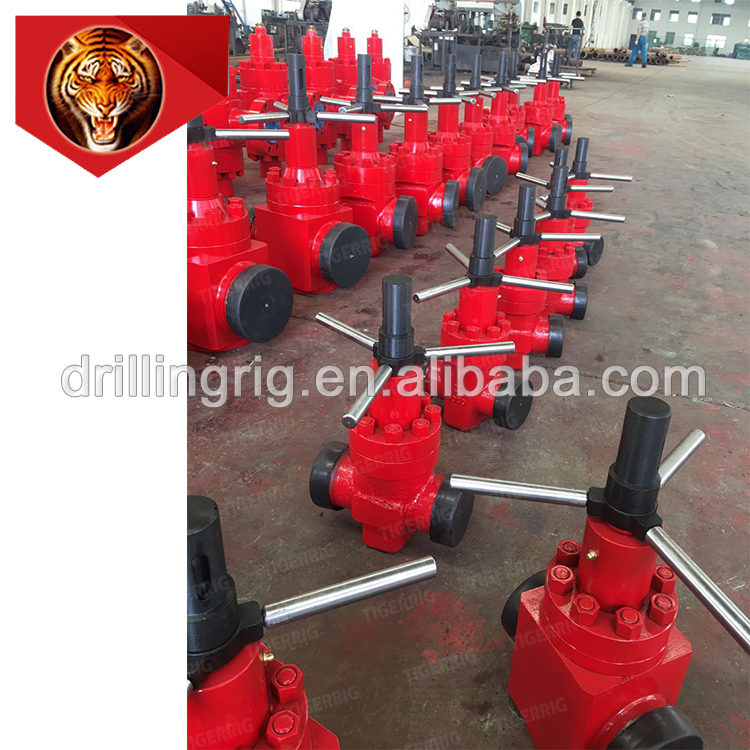

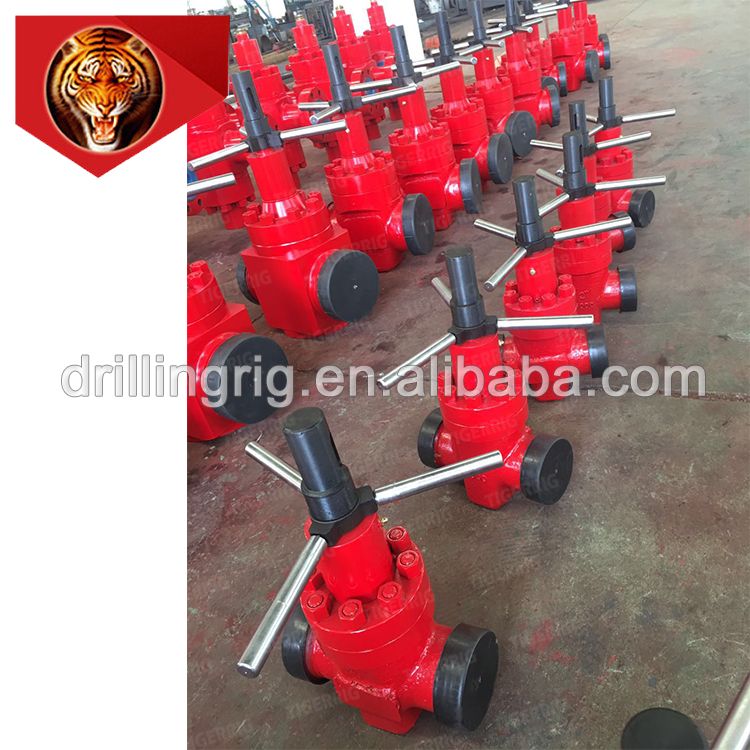

Tigerrig 25 yrs experience API 6A 2 Inch High Pressure Drilling Mud Gate Valve
Production Description:
Z23X-35 series mud gate valve is mainly used in oil mine mud circulation system equipment, used to control the flow and shut-off of mud. The connection form is trapezoidal thread connection, which is fast and convenient to install, strong in rigidity, safe and reliable, and the valve seat and gate adopt parallel elasticity. Sealing, sealing effect is good, easy to open, both ends of the valve are connected with the pipeline to be sealed, using spherical movable contact, and the movable joint combined with the "0" rubber sealing ring has low requirements for the straightness of the two ends of the pipeline during installation and is sealed Good performance.
Specifications
Model
Z23X-35-DN50
Z23X-35-DN65
Z23X-35-DN580
Z23X-35-DN100
Work pressure
5000psi
The way to
2′(20)
2 1 /2(65)
3′(80)
4′(100)
Working medium
mud
Connection Type
Thread
Connector connection size
Trl120*6
Trl130*6
Trl150*6
Trl180*8
Structure length (L)
205
235
270
330
