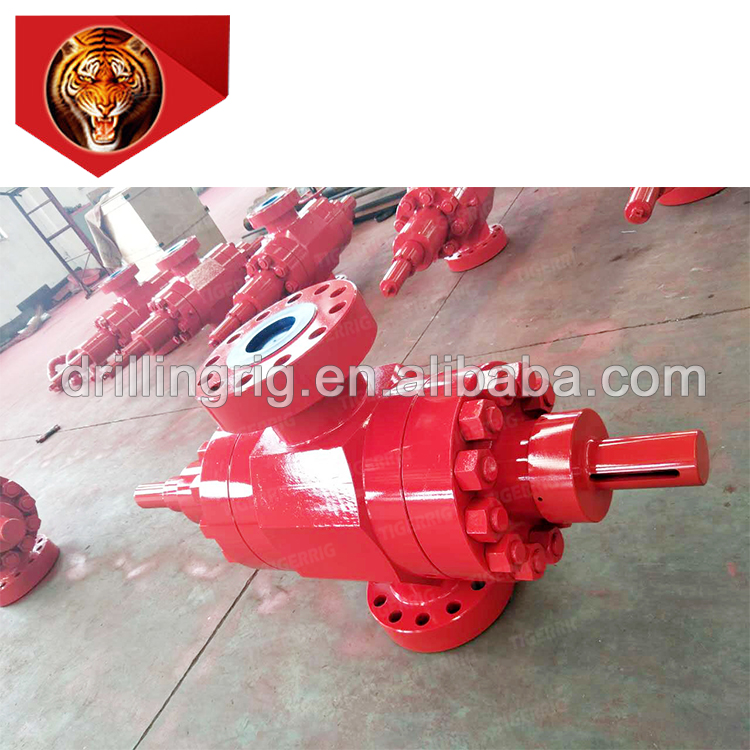

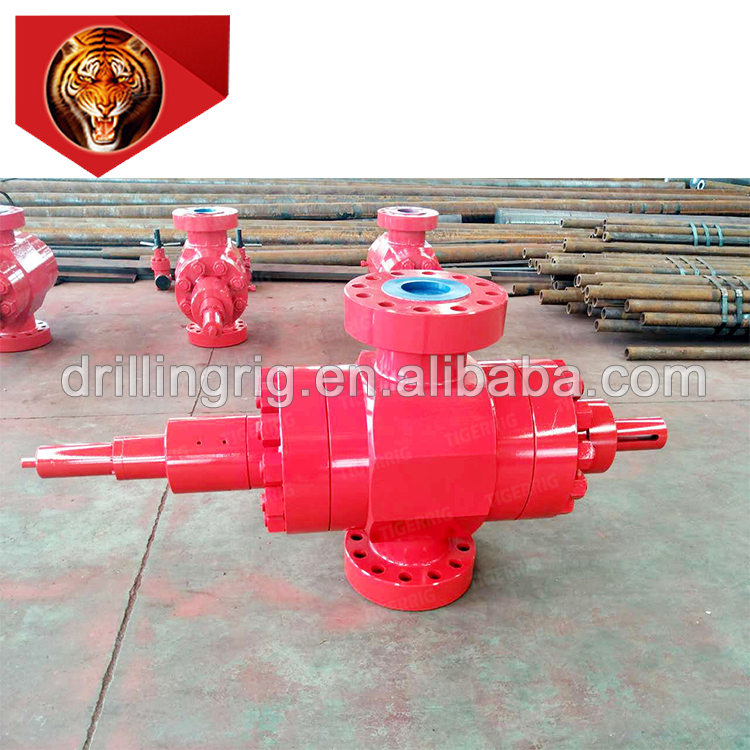

Tigerrig API 16 A, Blowout Preventer,FZ35-35 ,13 5/8" 5000psi Single Ram BOP
Production Description：
The hydraulic ram blowout preventer is an important component assembly of the well control device. It has the characteristics of flexible switch, operating table power, safe use, and simple maintenance.
Structural features
Ram structure and usage characteristics.
The double-sided shutter is symmetrical between the bottom and the bottom. Drilling tools of different sizes only need to replace the rubber sealing half ring and the ram clamp, and the rest of the parts can be interchanged; the single-sided ram cannot be turned over; the shear ram can cut the wellhead drilling tool and completely seal the wellhead; variable Diameter gate is suitable for sealing of drilling tools and casings of different sizes within a certain range.
Ram seal characteristics
Floating of the ram, automatic sand removal of the ram, well pressure sealing aid, automatic centering of the ram, and self-advance of the ram. The wellhead of the ram blowout preventer must have four seals at the same time to achieve effective well closure, namely: the top of the ram and the casing, the front end of the ram and the pipe, the casing and the side door, the piston rod and the side door The seal.
Ram locking device
The manual locking device is to close or lock the gate by rotating the hand wheel manually. It should be noted that the manual locking device is only used to close the gate and cannot open the gate. To open the ram after use, the manual locking device must be reset and unlocked, and then the ram is opened by hydraulic pressure.
Specifications
Condition
New
Warranty
1 Year
Applicable Industries
Machinery Repair Shops, Energy & Mining, Advertising Company
Certification
API
Machinery Test Report
Provided
Showroom Location
Egypt, Canada, Turkey, United Kingdom, United States, Italy, Fran
Brand Name
Tigerrig
Marketing Type
New Product 2020
Machine Type
Drilling Equipment
Place of Origin
Sichuan, China
Processing Type
Forging
Type
Bop
Use
Well Drilling
Material
Stainless Steel
Product name:
Single Ram BOP
