Tigerrig top quality long and short radius chiksan swivel joint 2000psi~20000psi for oilfield
Production Description：

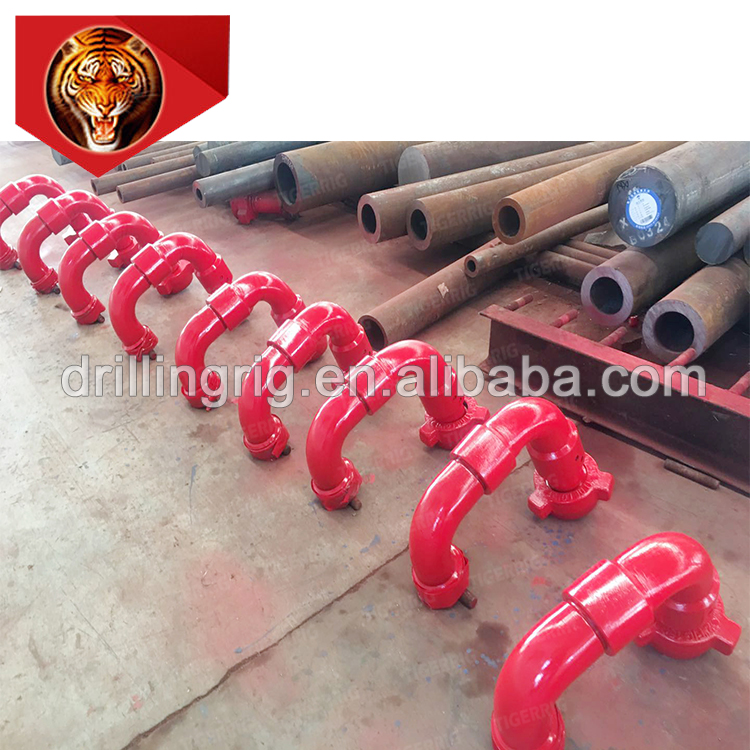

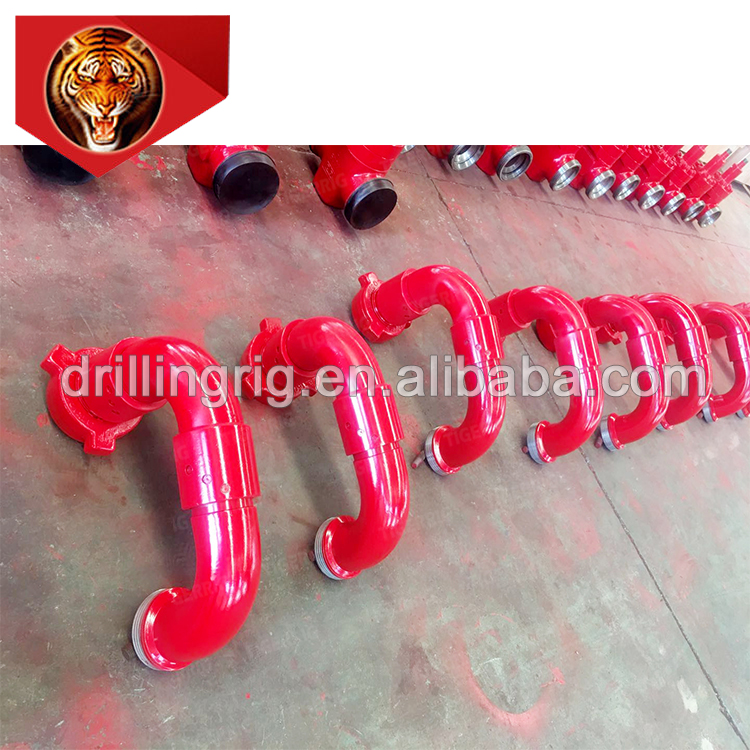

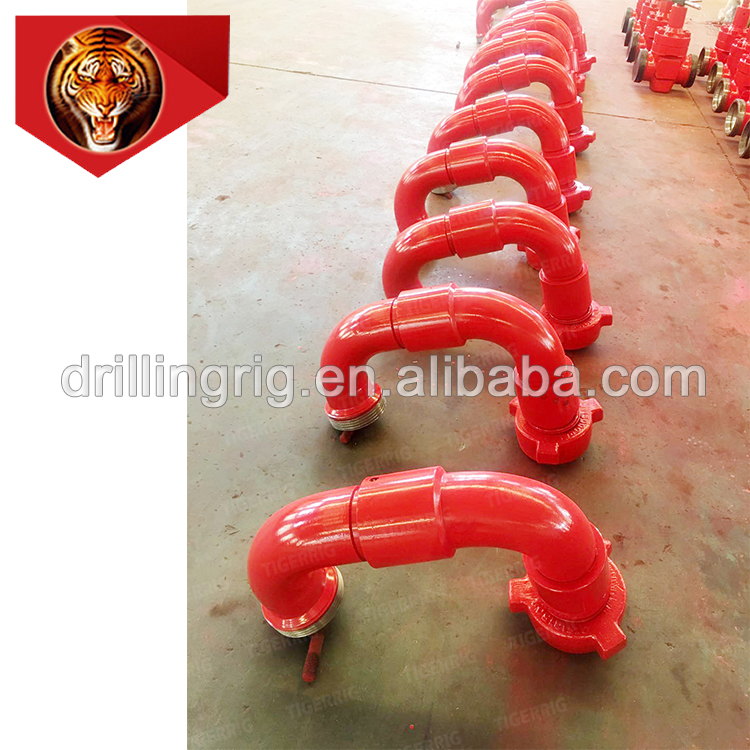

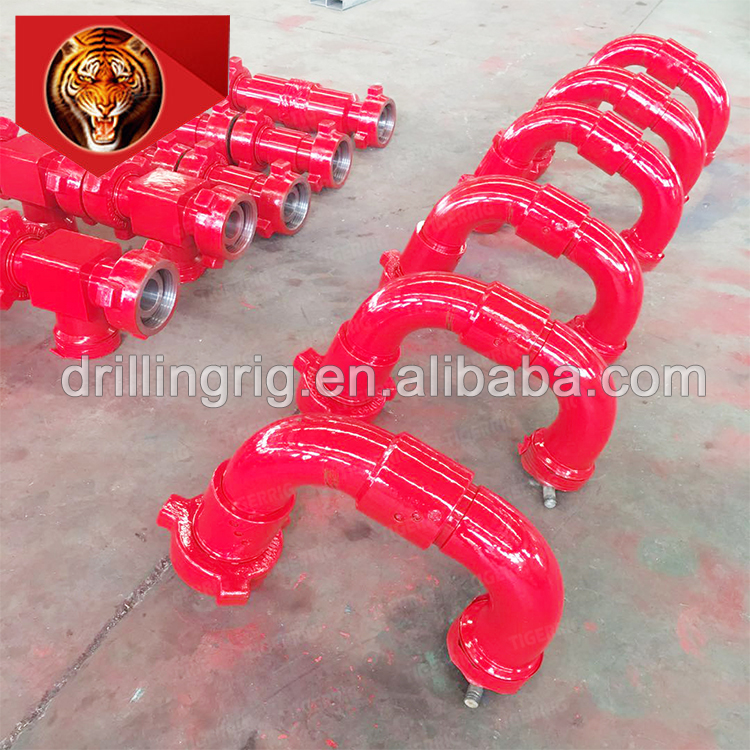

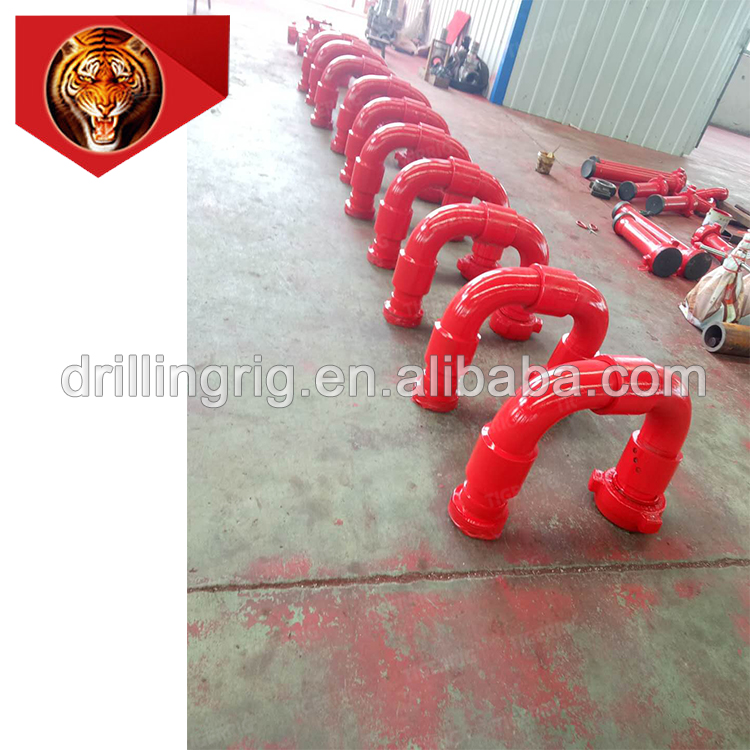

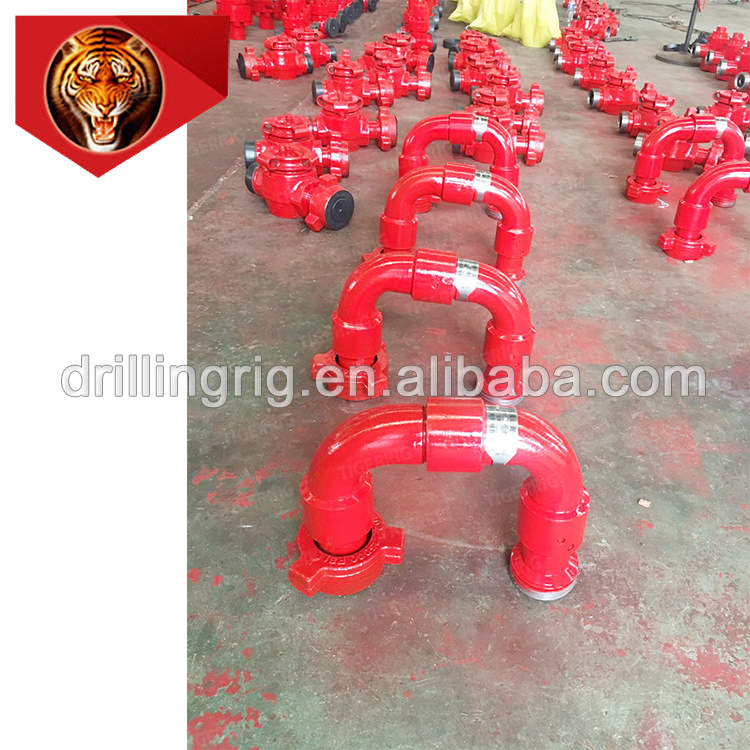

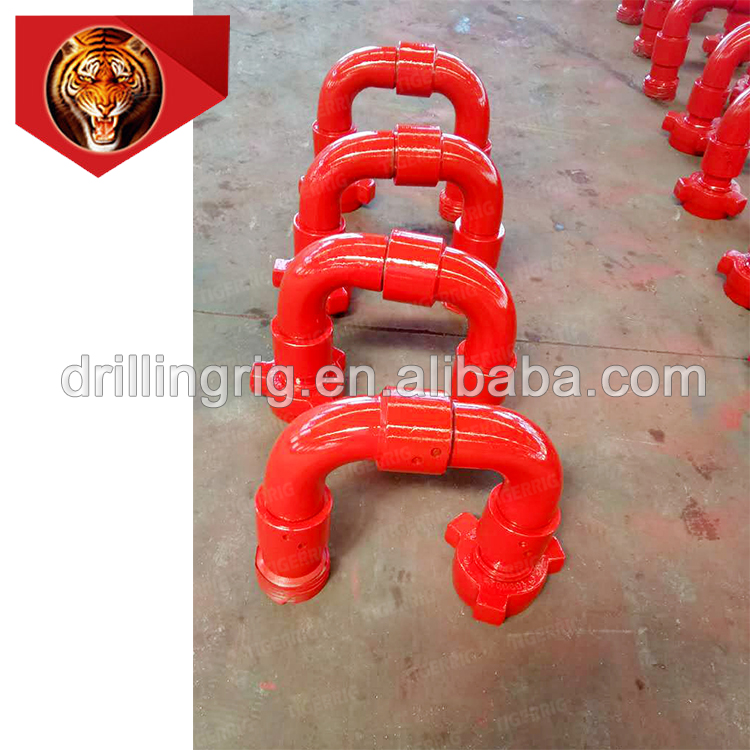

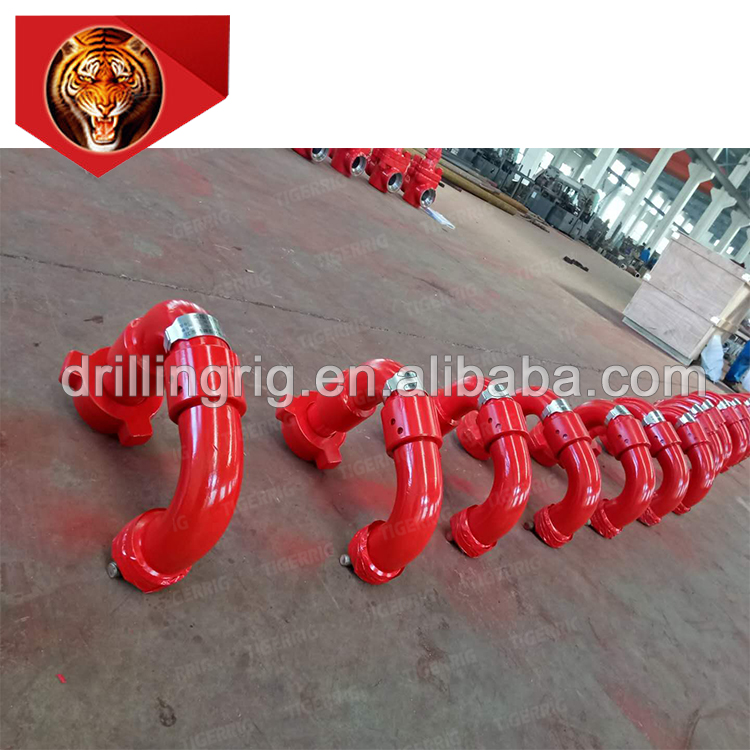

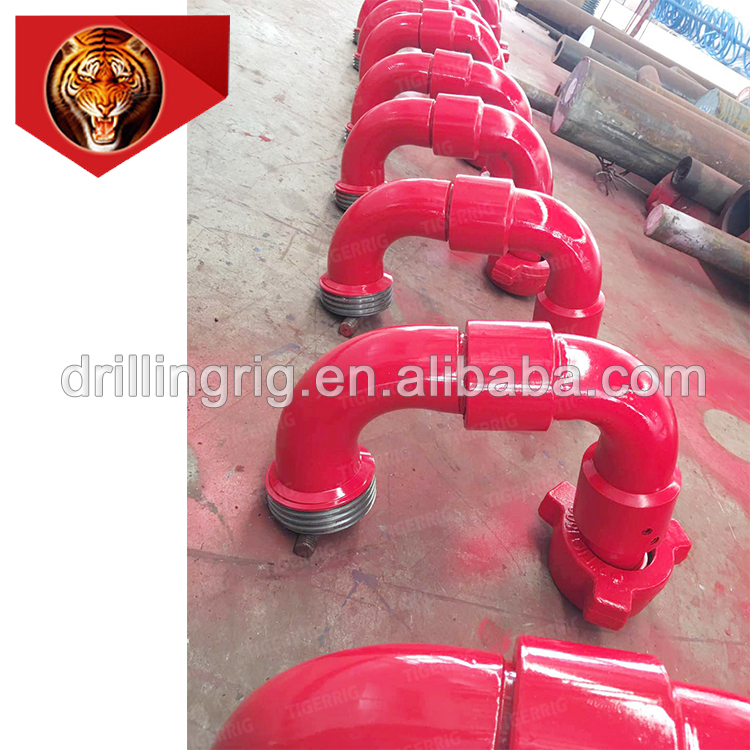

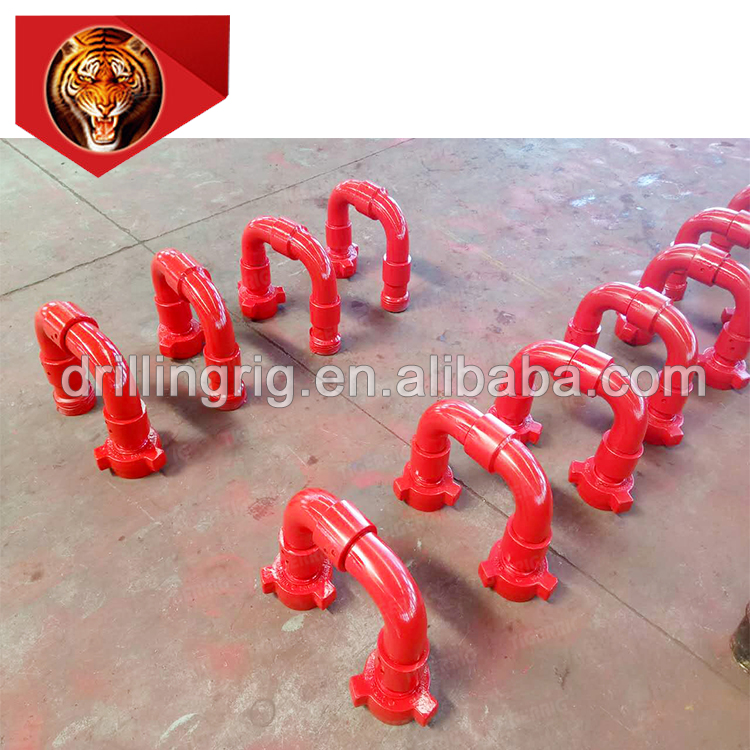

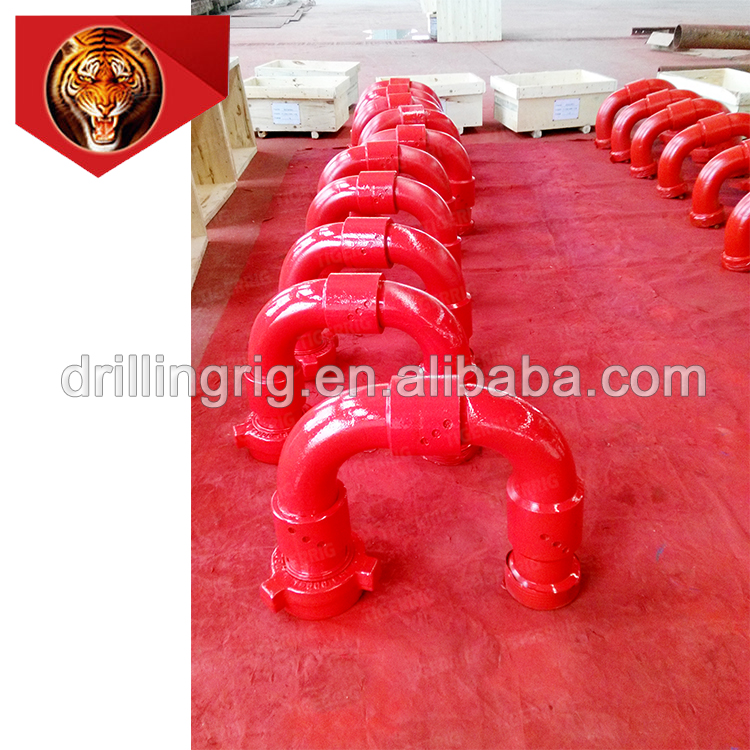

The movable elbow produced by our company is a metal pipeline joint equipped with ball bearings. Its specifications are 1′-4′, and the rated working pressure is 14-140MPa (2000psi-20000psi). It can provide normal temperature, low temperature and sulfur-containing gas conditions. Various types of movable elbows and repair kits used under.
There are two types of movable elbows, long radius and short radius. The long radius movable elbow has a smooth diameter, which can minimize the resistance when the liquid passes. The erosion and corrosion resistance of the fluid to the turning wall is better than the short radius. But sometimes due to the limitation of on-site installation space or when the pressure is low, a short radius is also used.
Specifications
Number
Model
Working pressure
Diameter
External connection size
External sealing form
1
2WT*35.1
5000(35)
2（50）
Trl100*12
Spherical hard seal
2
2WT*35.2
Face seal
3
2WT*70.1
10000(70)
4
2WT*70.2
U-shaped seal
5
2WT*70.3
Spherical seal
6
2WT*70.4
4 1/8-3ACME-2G
7
2 1/2WT*35.1
2 1/2（65）
Trl120*12
87
5000（35））
