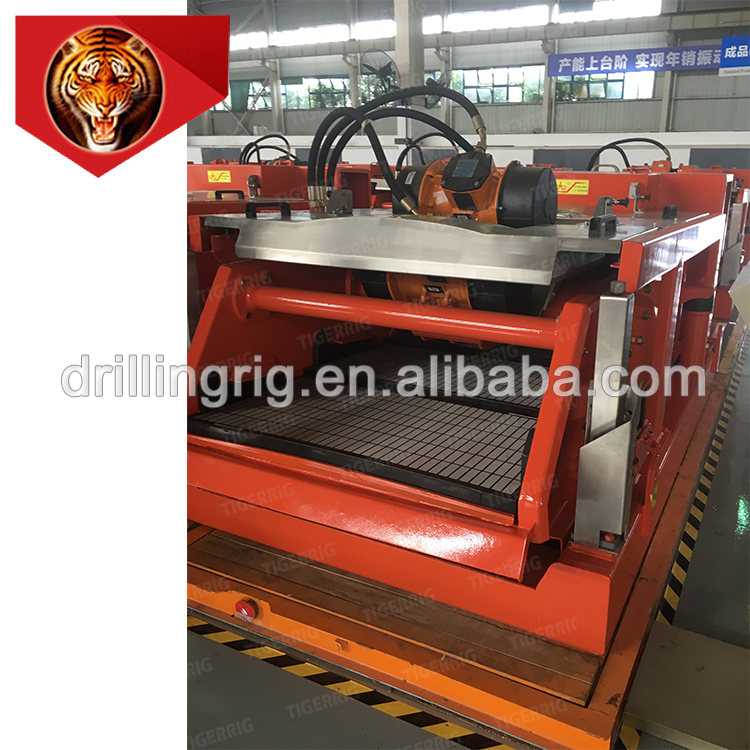

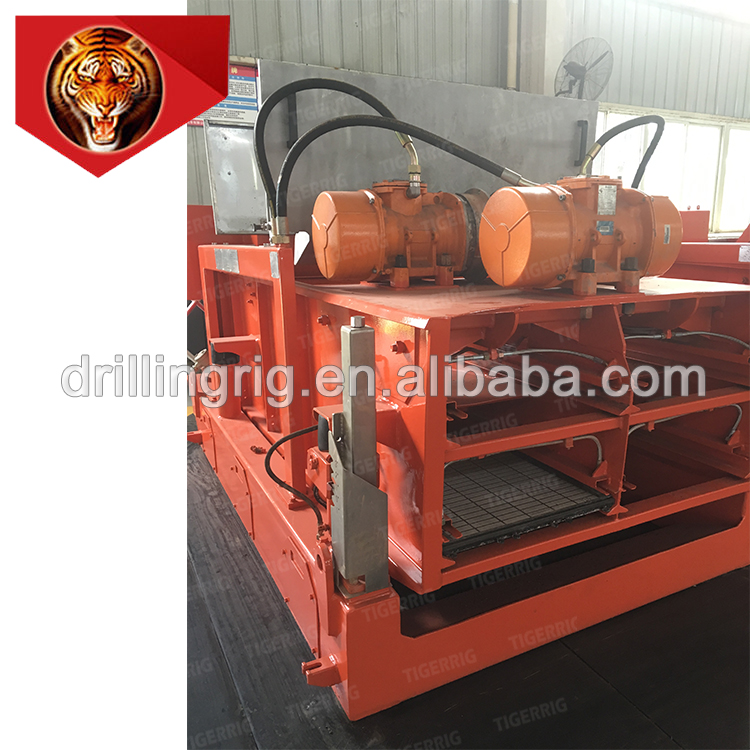

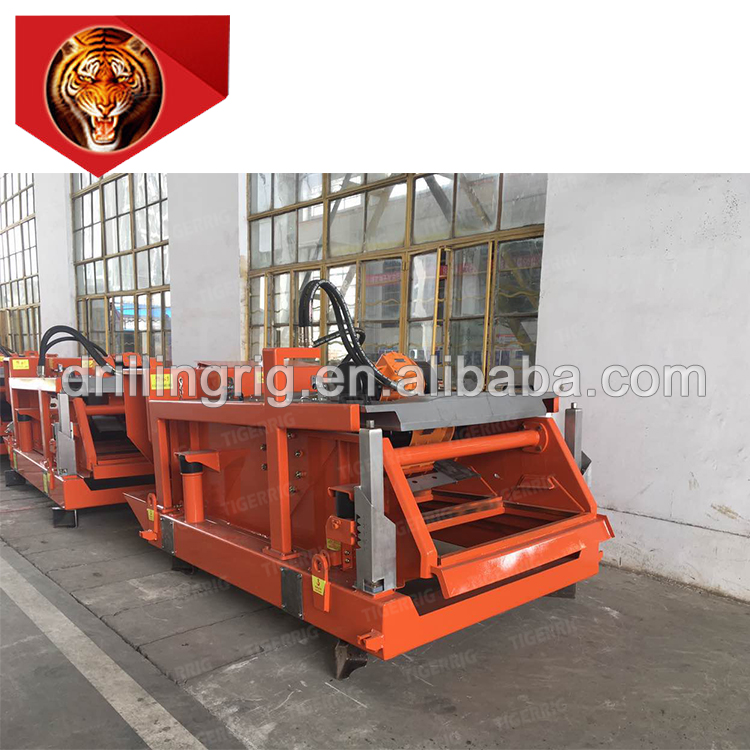

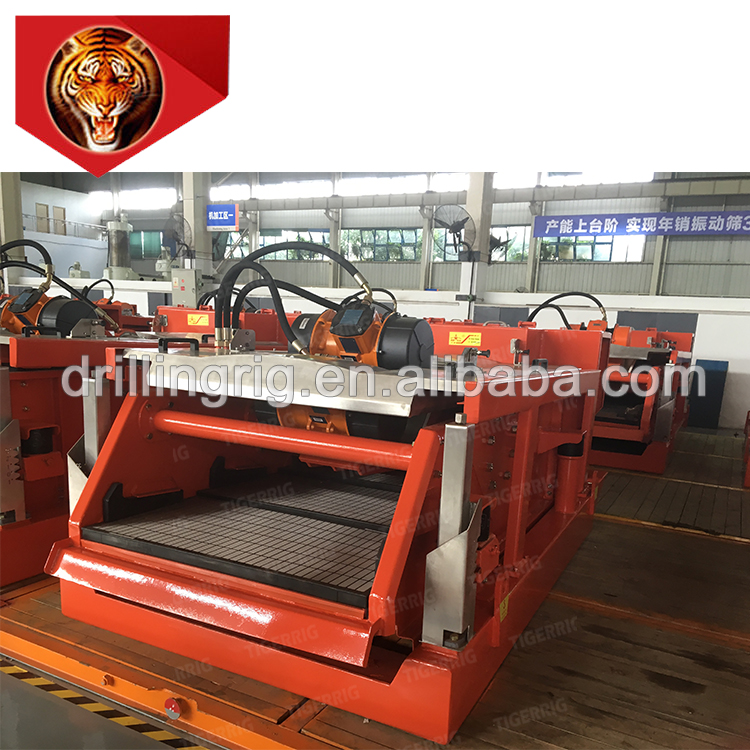

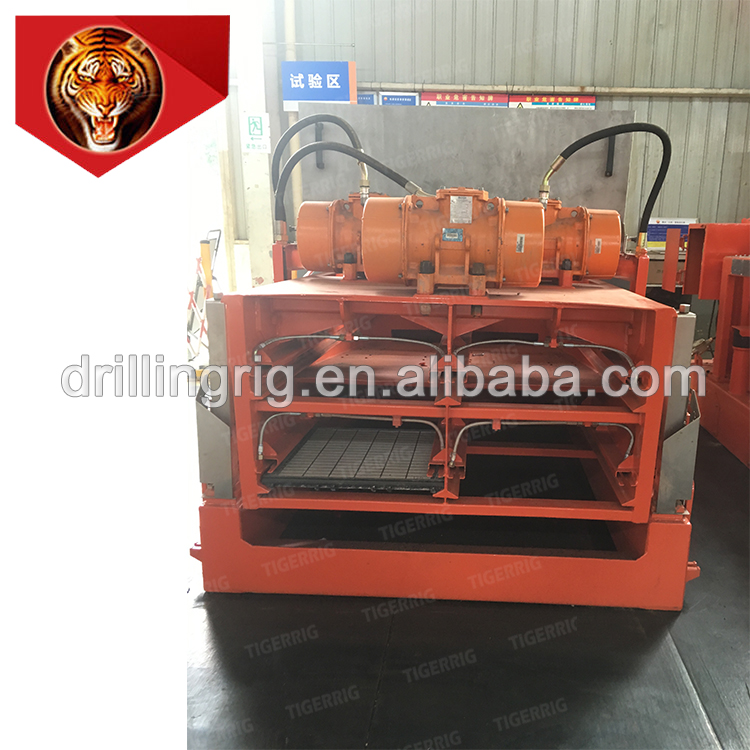

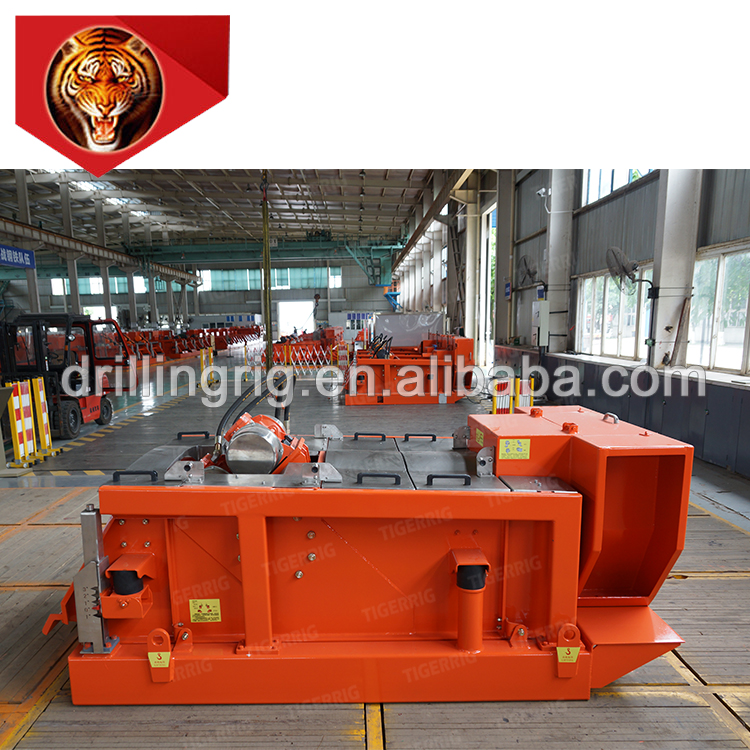

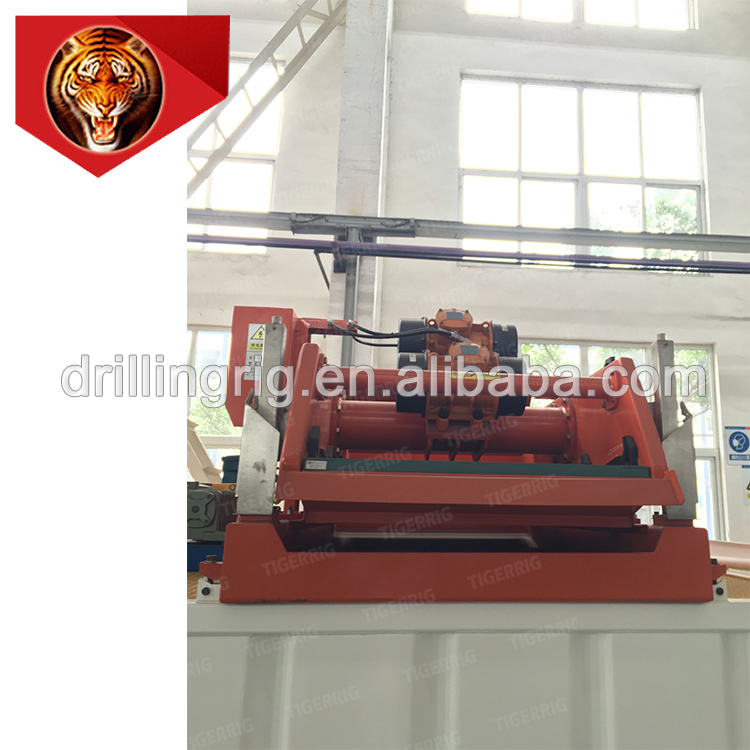

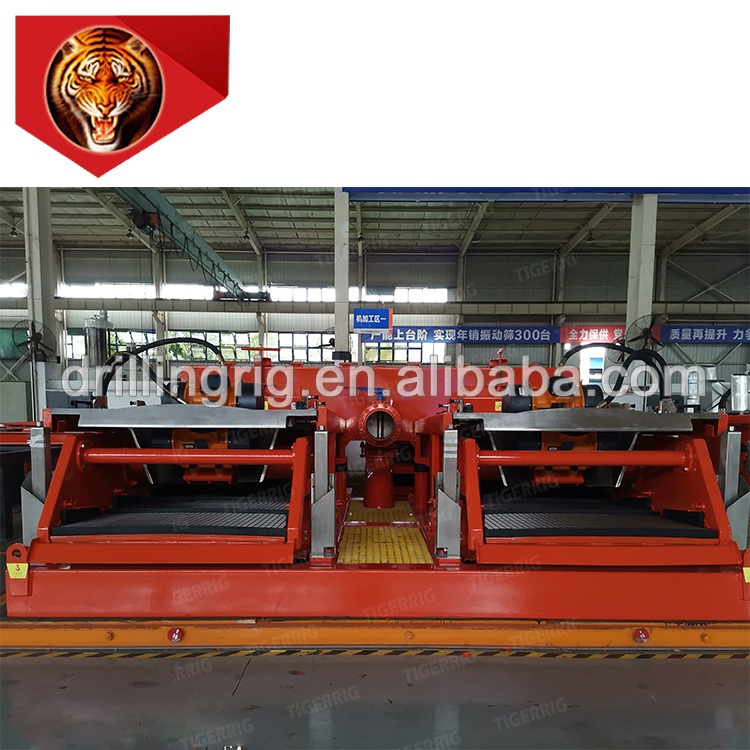

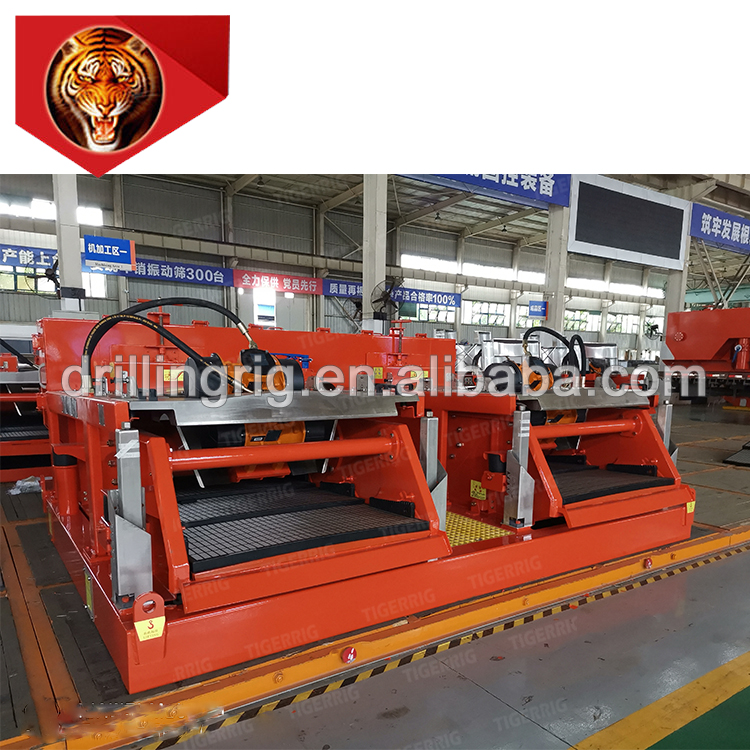

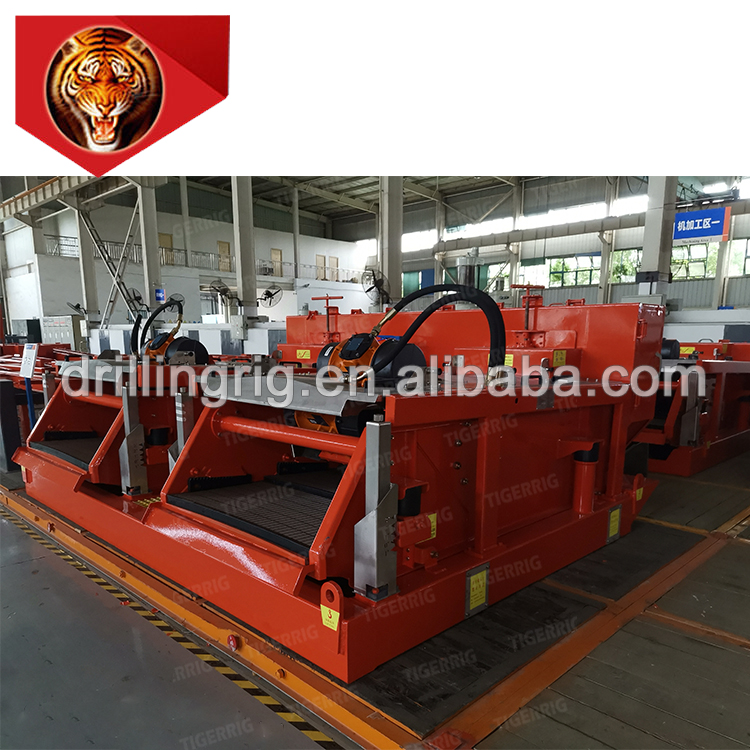

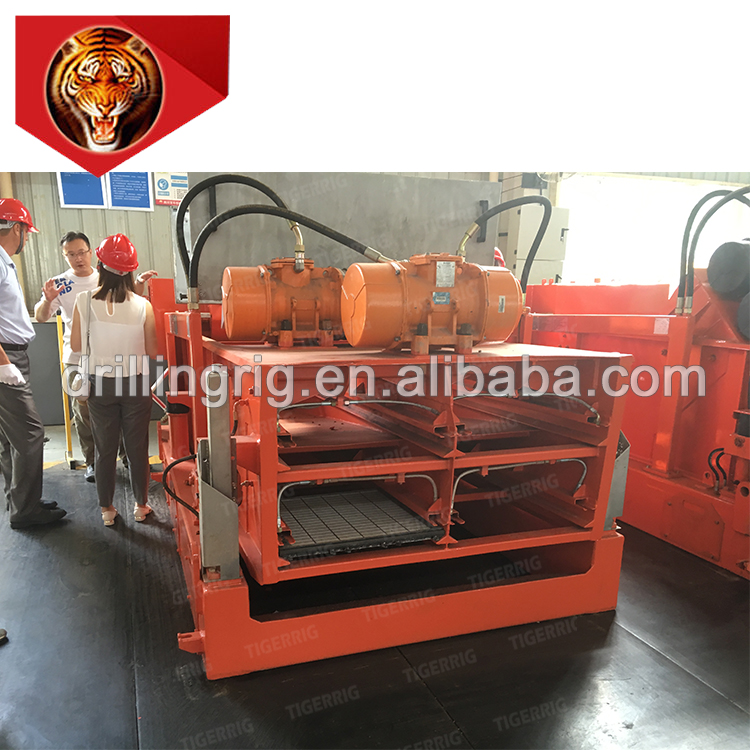

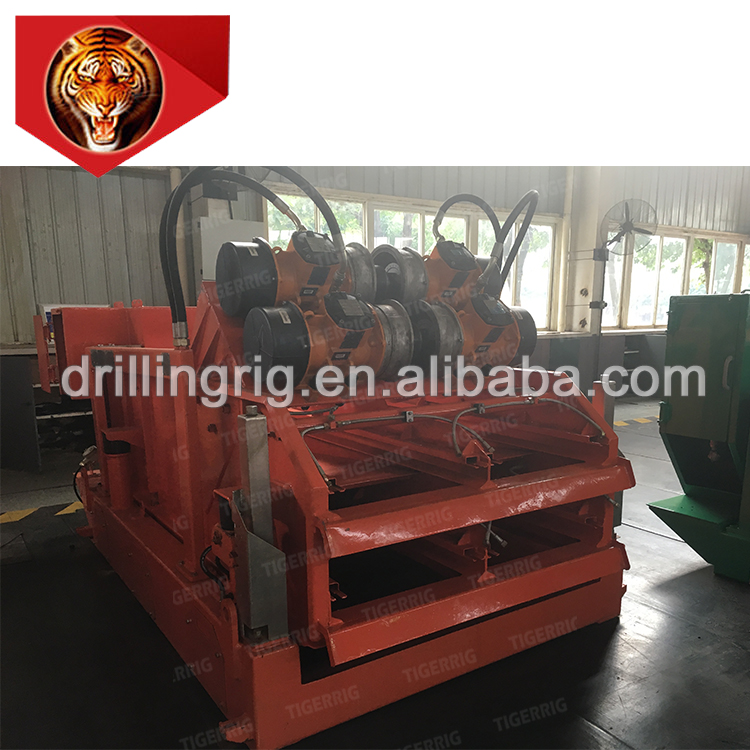

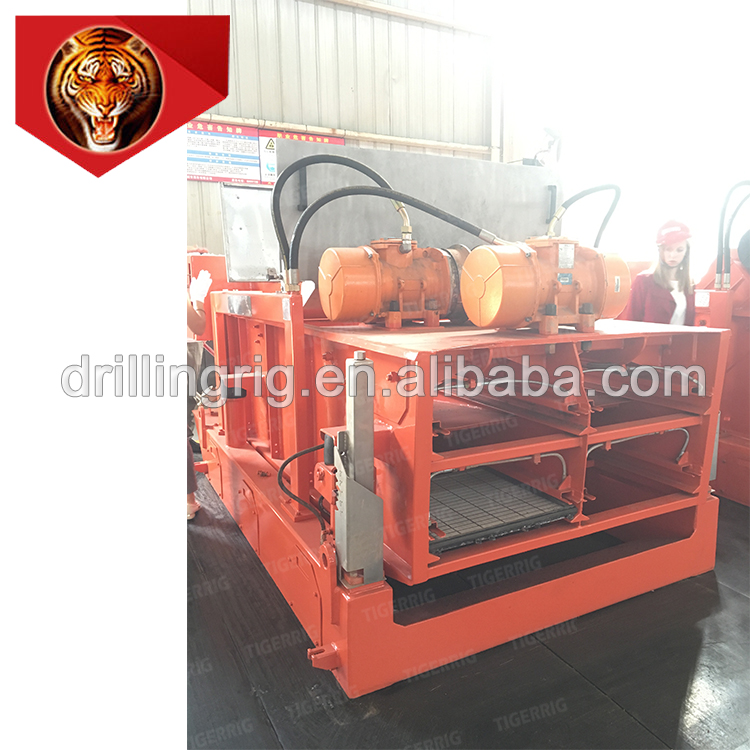

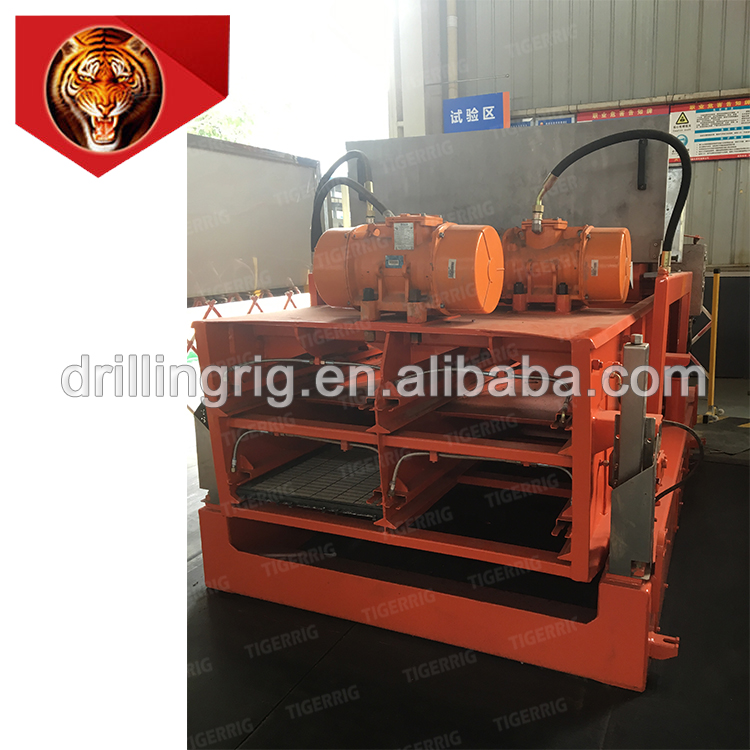

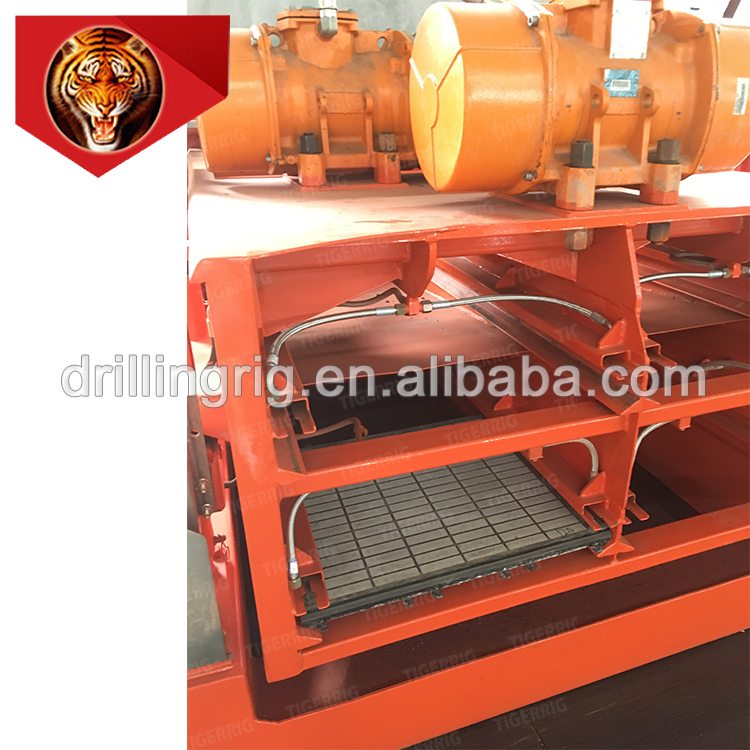

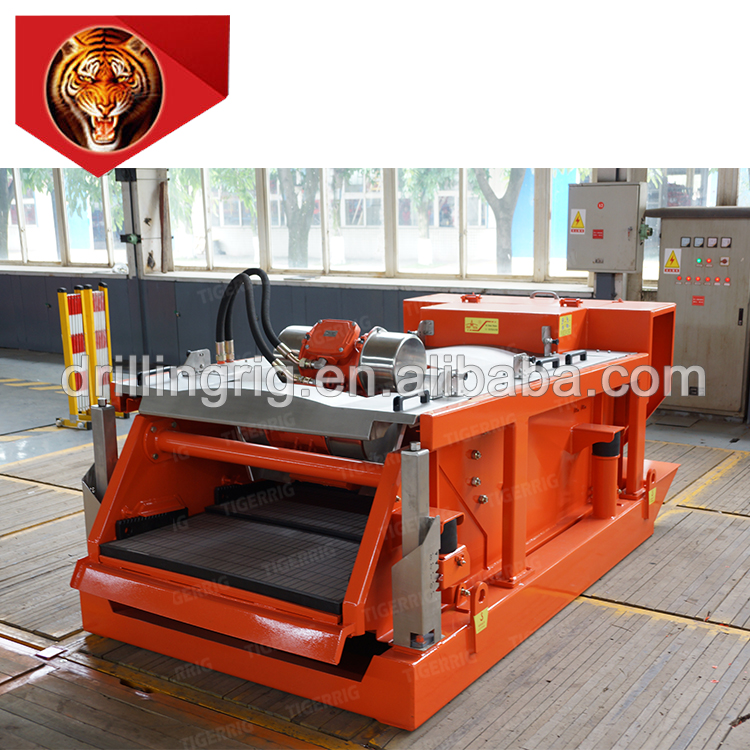

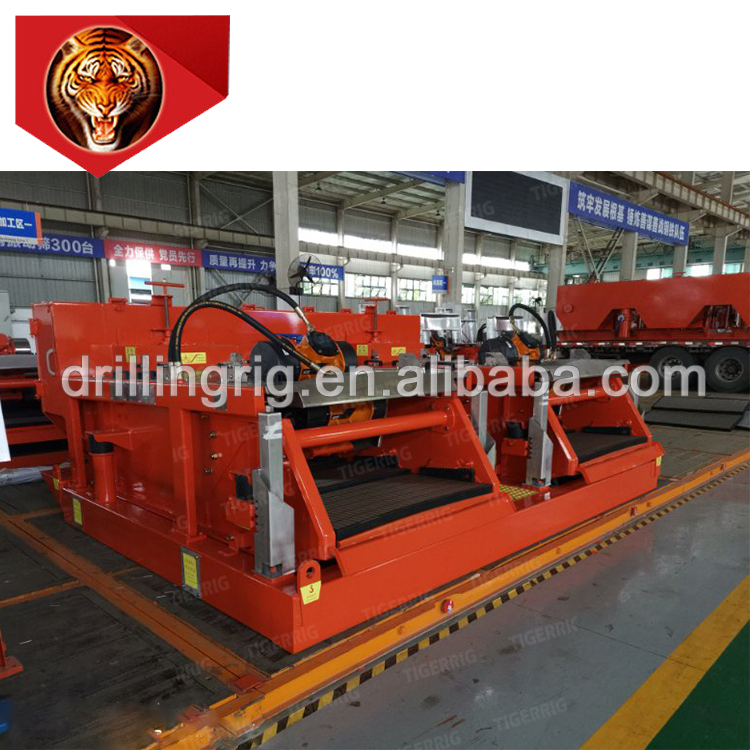

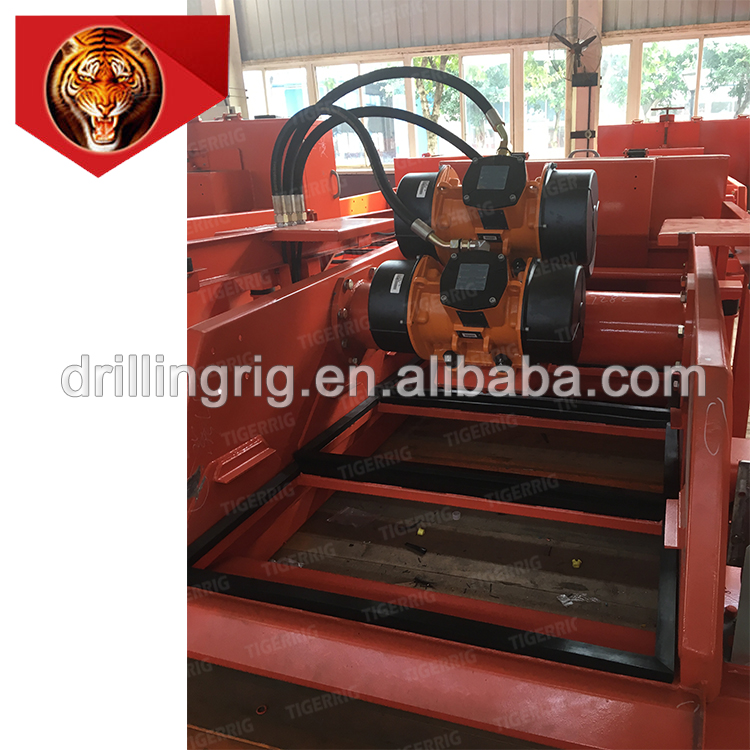

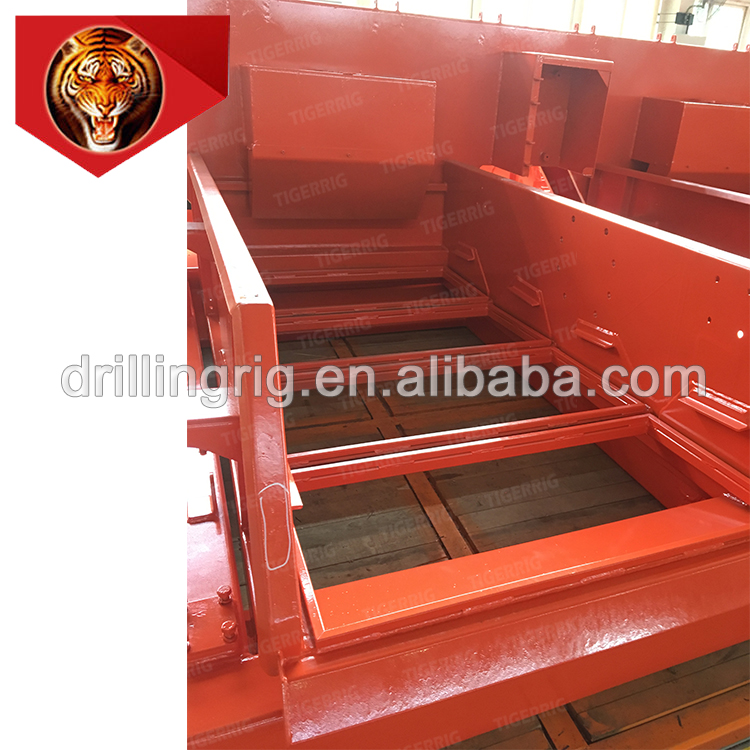

Gamboss New Design Large Discharge Capacity Shale Shaker for Oil Well Drilling Rig
Main Characteristics:
1. Large mesh number, huge capacity. Screens have 360h’s working life.

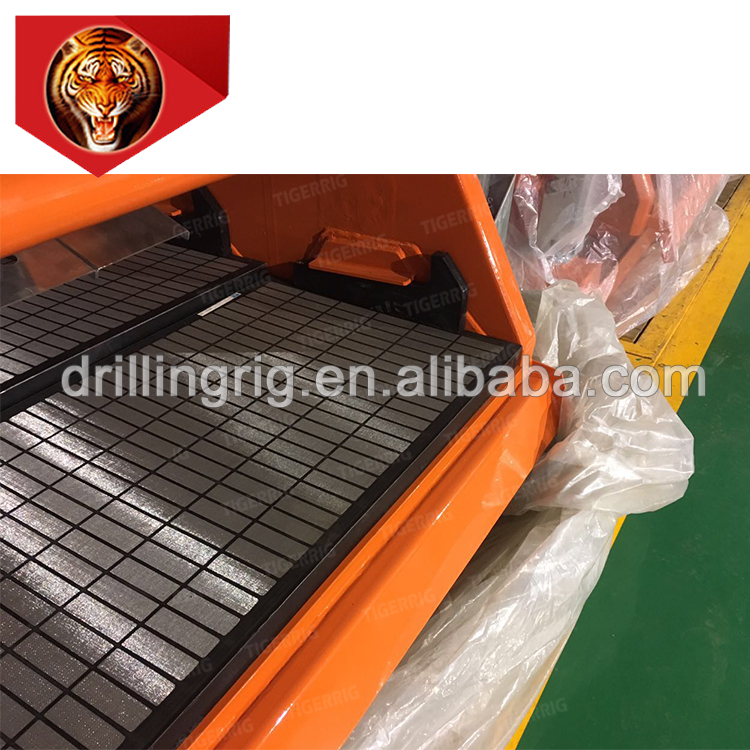

2. Install screen quickly by wedge device. Lower noise, longer life.
3. Use protective metal cover and stainless-steel device.
4. Protection functions as over-current, short circuit, over voltage, under voltage, overload and overheat, etc.

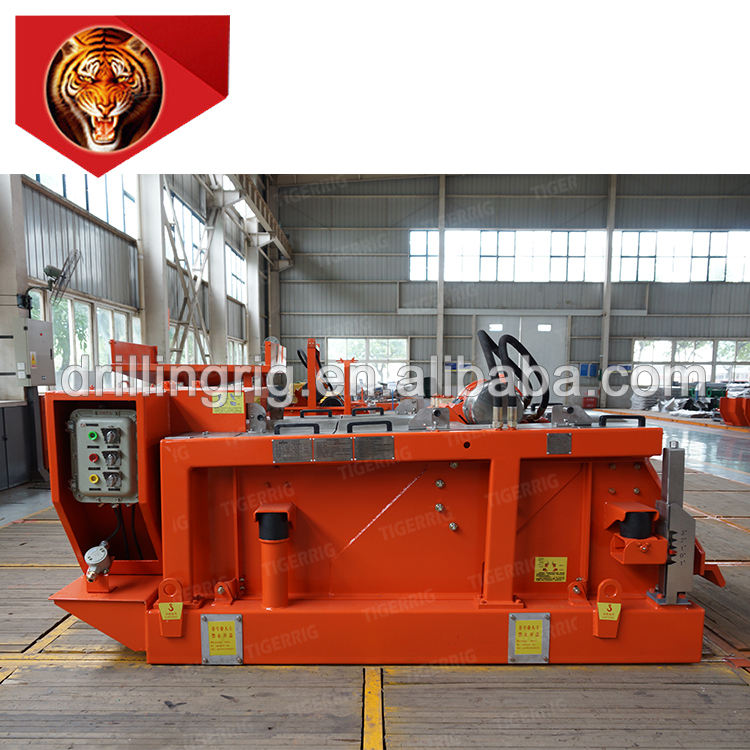

5. Electric control cabinet is placed at the back to elude the splash.
Specifications
Type
GX/S-I
GX/S-II
GX/Z 1×2
Vibration Types
Linear/Ellipse Motion
Max. Vibration Amplitude(mm)
≤6.8
≤6.5
≤6.85

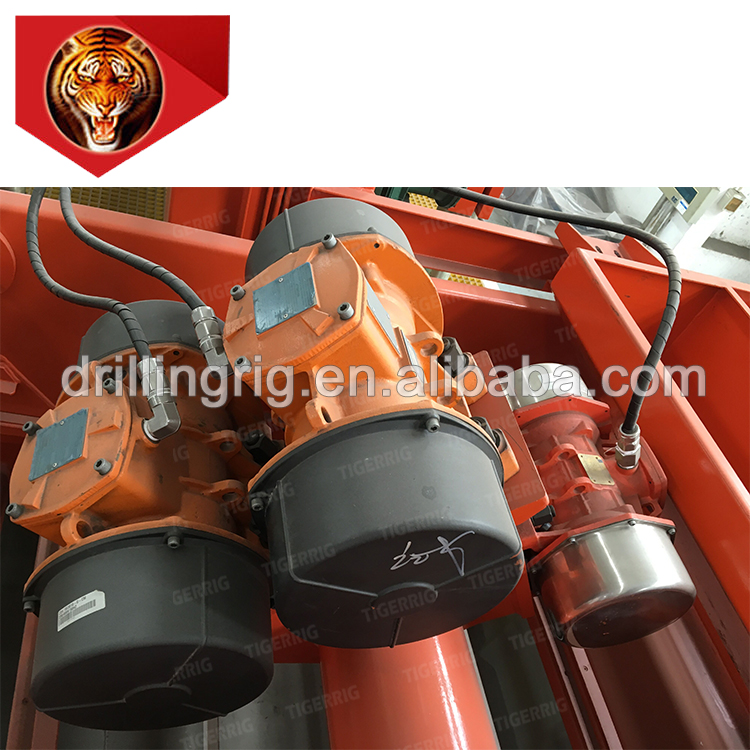

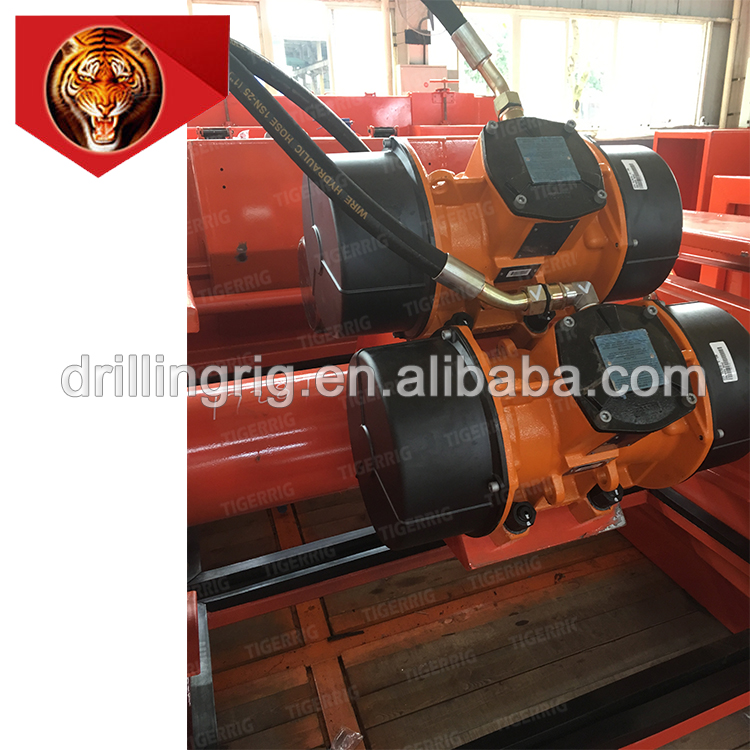

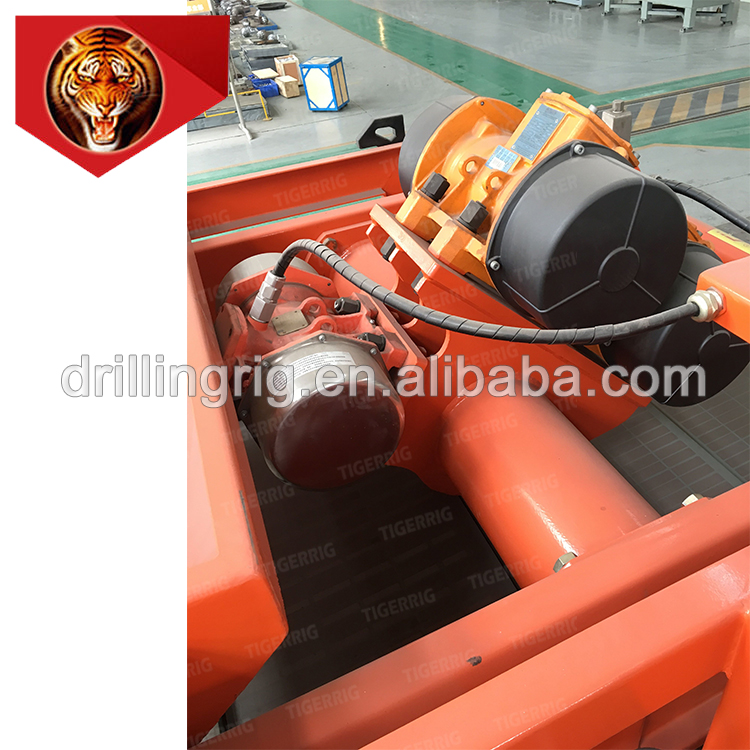

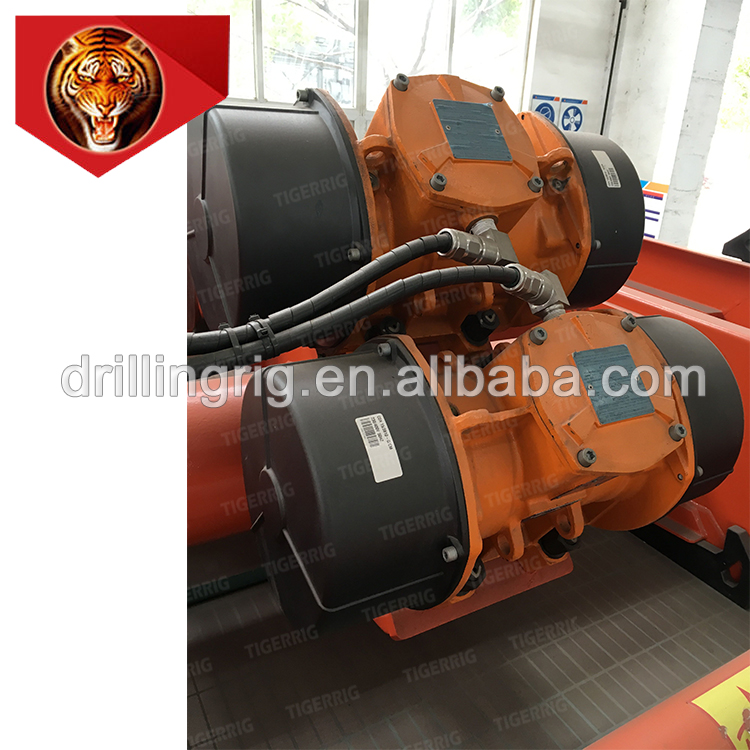

Vibration motor power (kw)
2×1.72+1×0.75
2×1.72kw(martin)
4ea×1.84kw(martin)
Screen Size (mm)
1165×585×40
650×600×40
Screen Qty.
4
16
Screen Area(m2)
2.73
6.24
Screen Mesh Number
80~320
90~120
Max. Capacity(m3/h)
216
Max. Capacity (L/S)
60
55
Vibration Intensity(G)
≤8.2
≤7.8

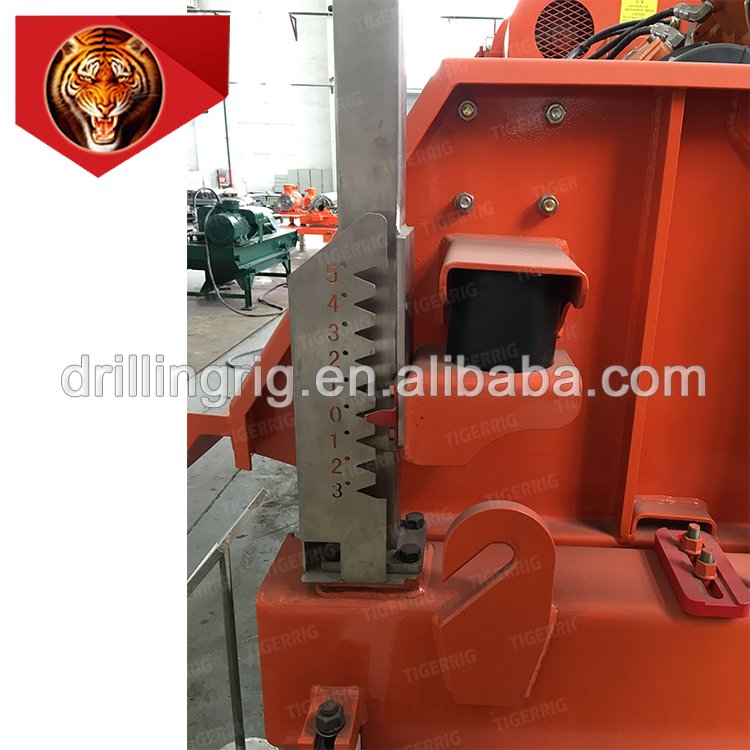

Obliquity Adjustment
-3°~+5°
Rated Voltage(V)
380/460
Rated Frequency (Hz)
50/60
Explosion-proof Grade
ExdIIBT4
Protection Grade
IP55
Weight(kg)
2000
3050
Overall Dimension(L×W×H)
2976×1680×1233
3170×1850×1585
