Gamboss API High Performance Old Design Shale Shaker for Oil Well Drilling Rig

< >

Features
Specification

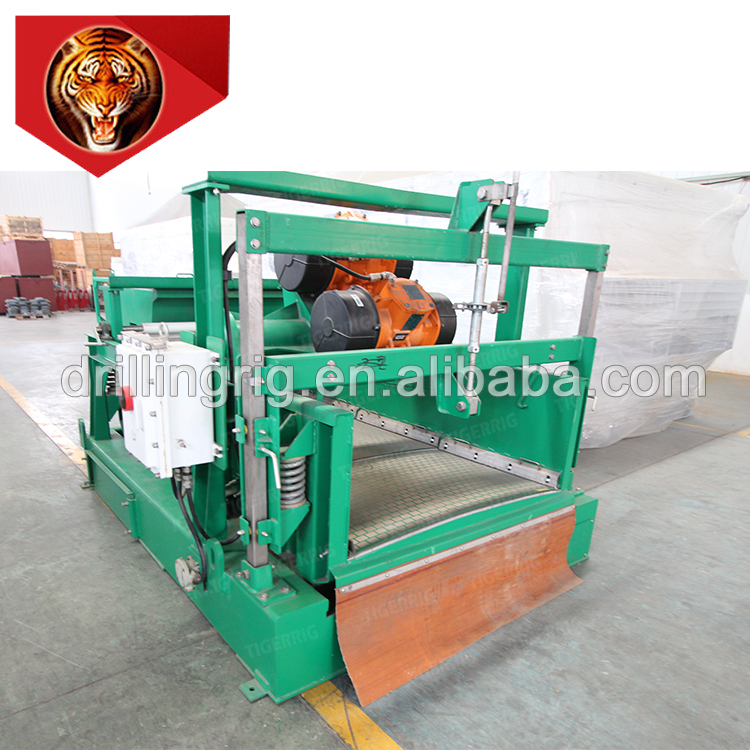

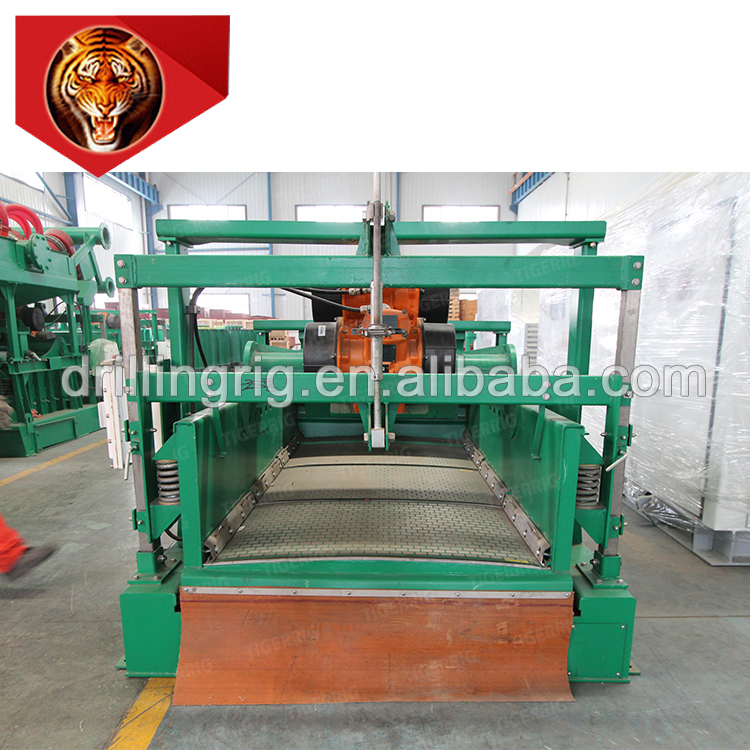

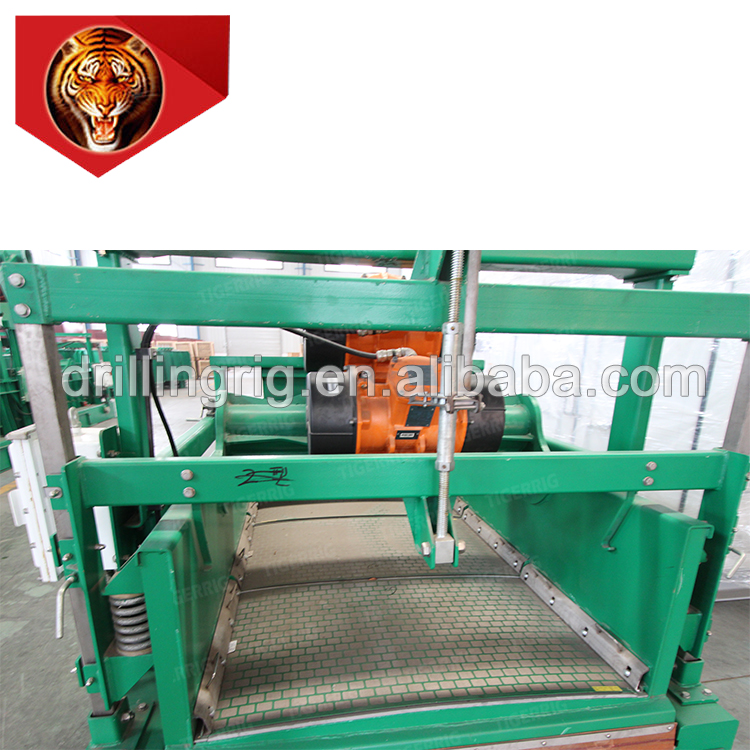

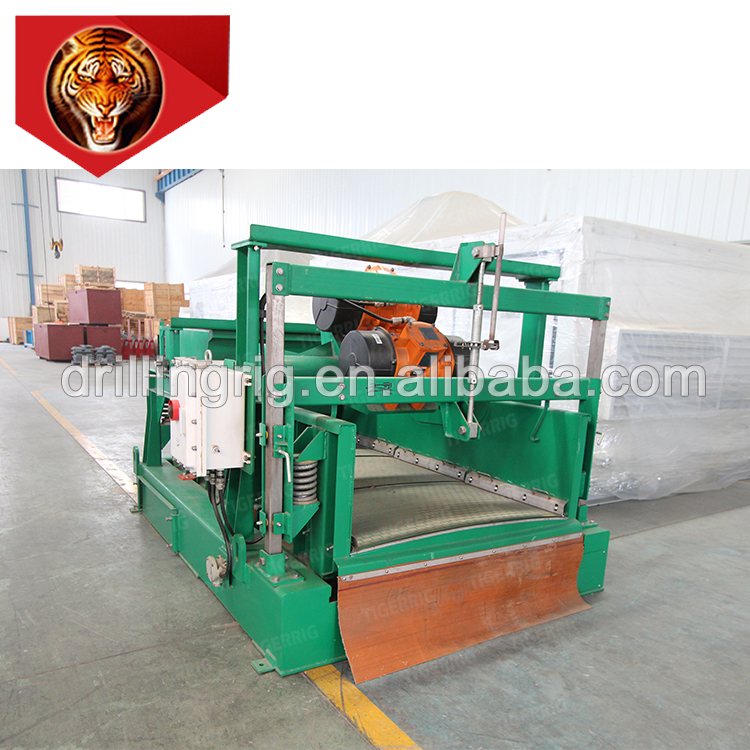

Gamboss API High Performance Old Design Shale Shaker for Oil Well Drilling Rig

Main characteristics:

1. Made by alloy steel metal material

2. Heat treatment of screen box eliminate internal stress completely

3. Coating material with high corrosion resistance

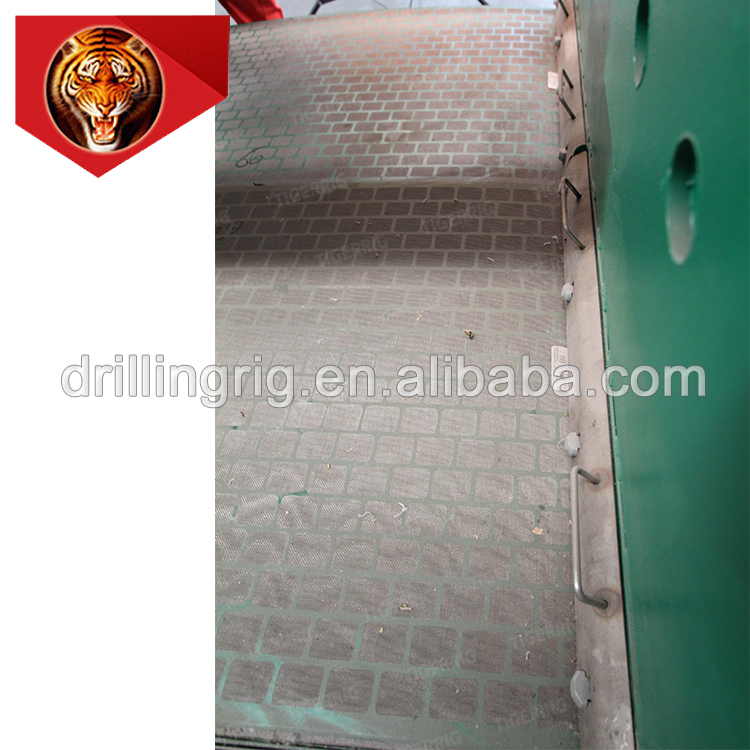

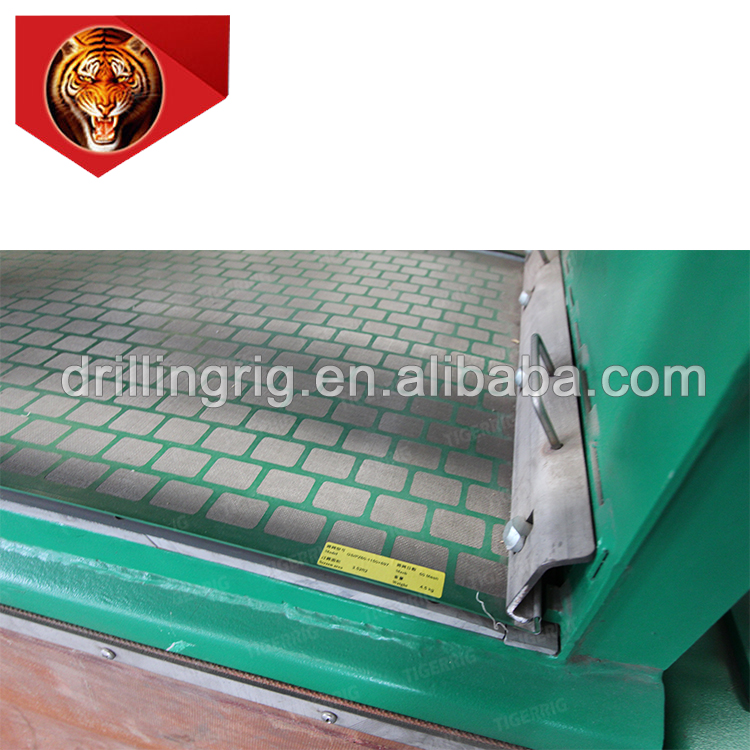

4. Crochet screen

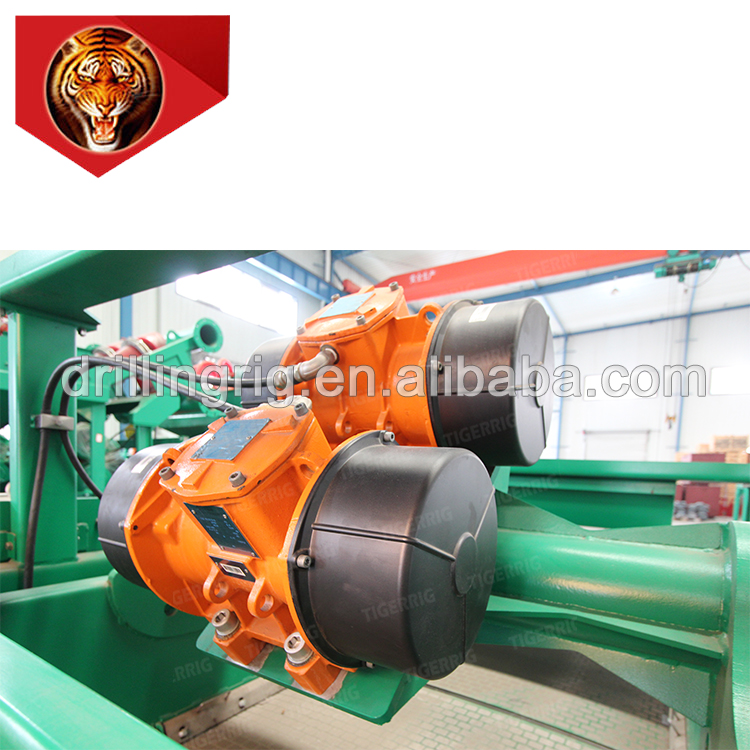

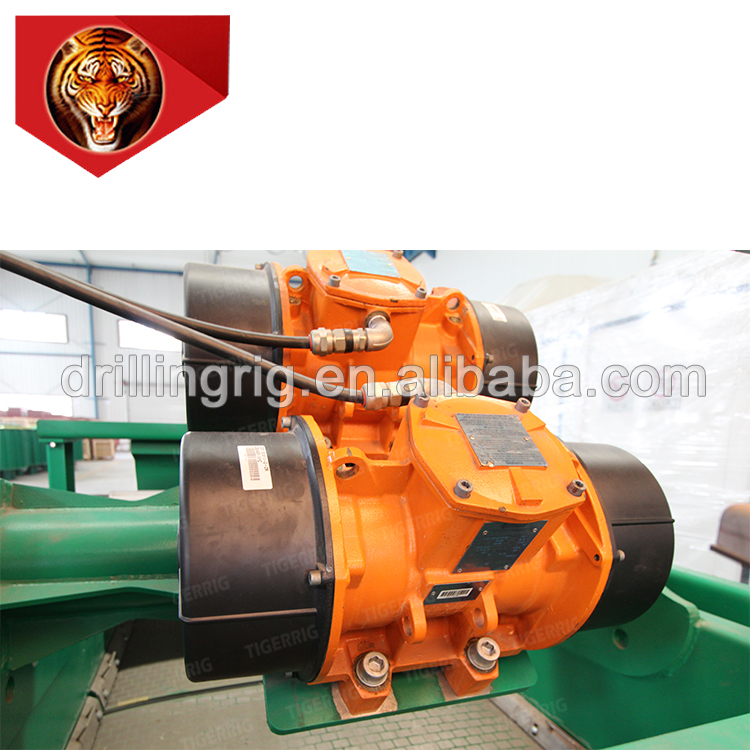

5. Martin motor or OLI motor

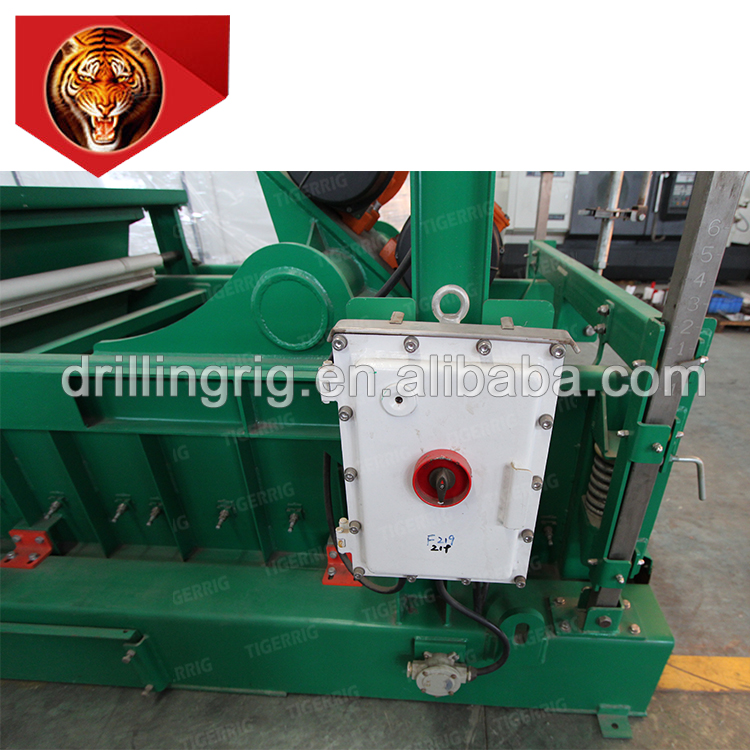

6. Siemens or Schneider electrical components

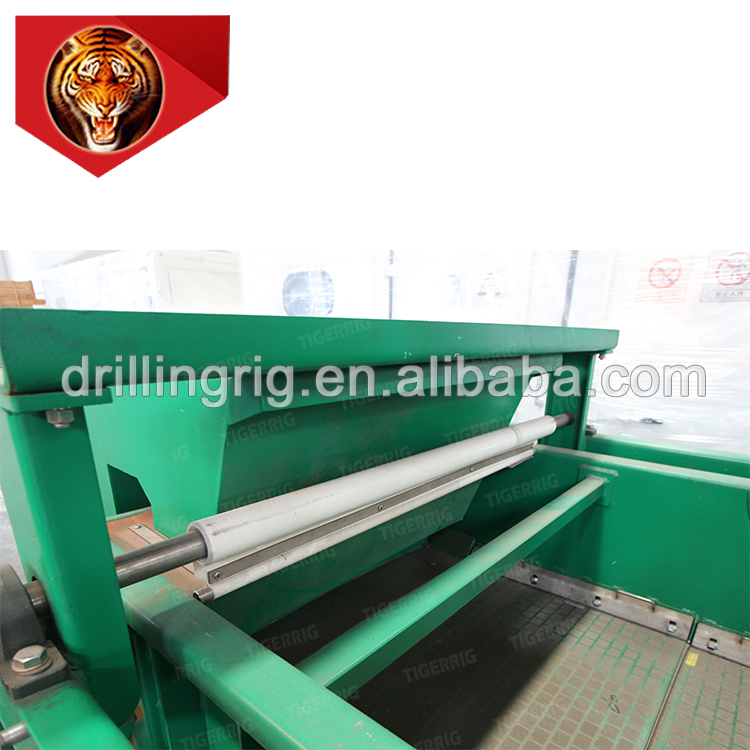

7. Splash prevention device by rolling soft cloth material

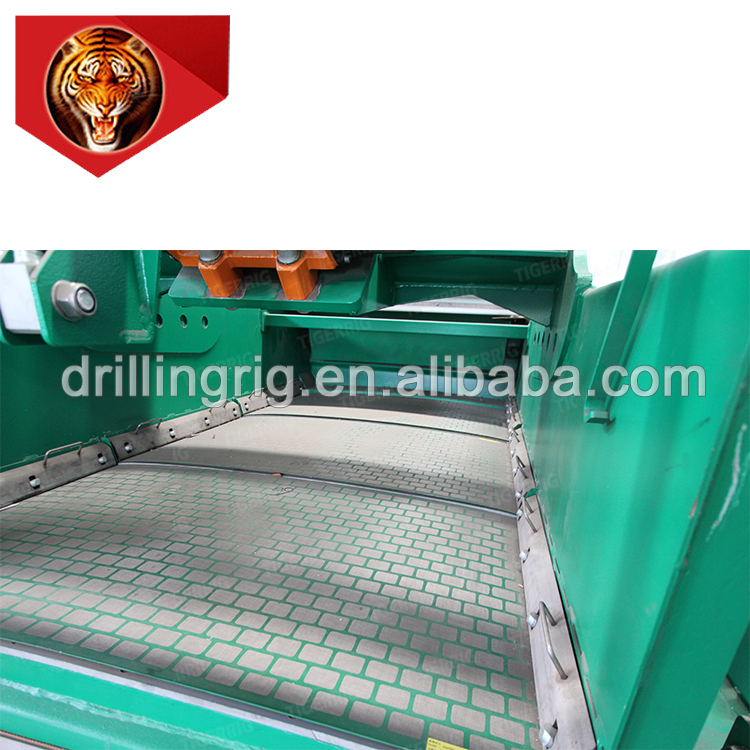

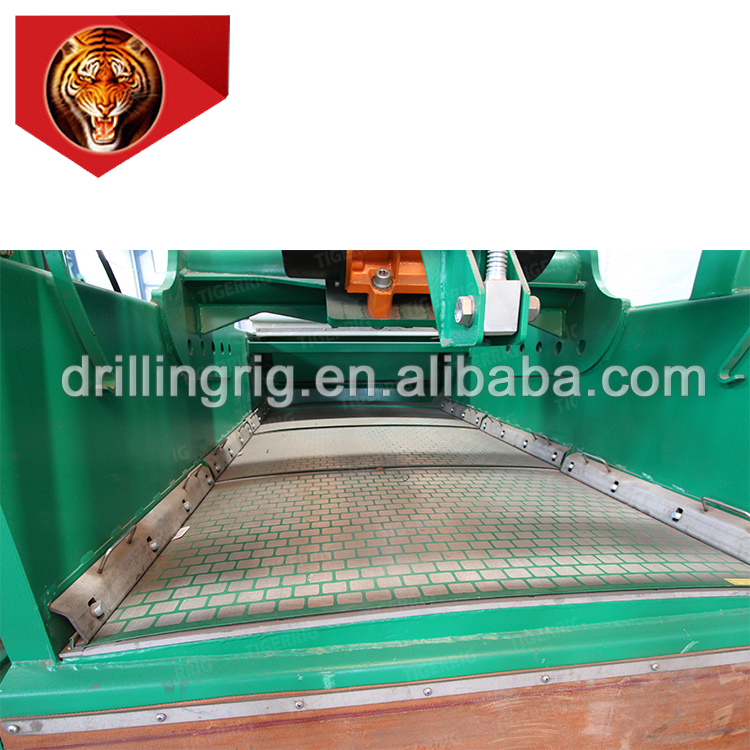

8. Change screen quickly by wedge device.

9. Good sealing effect

10. Martin motor or OLI motor

11. Siemens or Schneider electrical components

12. Splash prevention device cover plate which can be opened

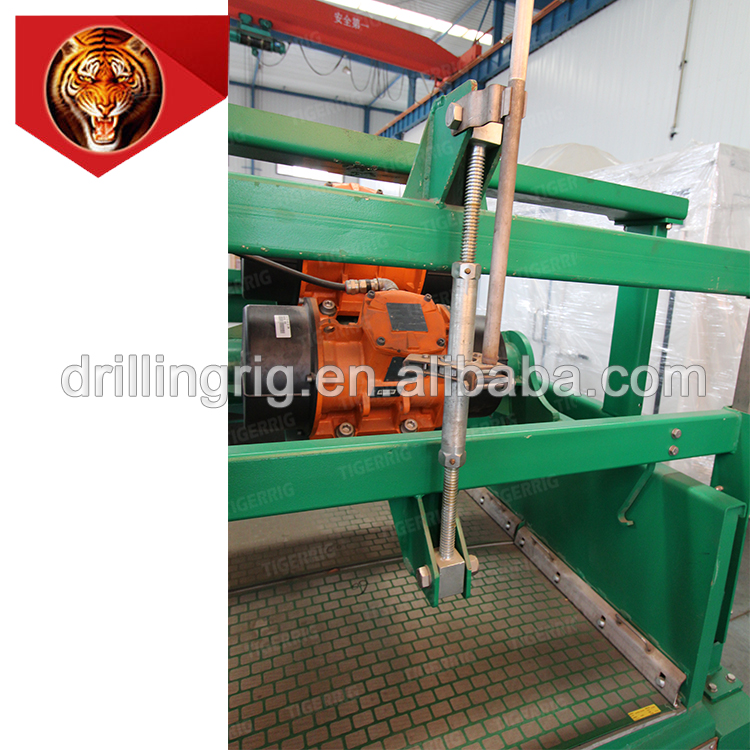

13. Adjust obliquity safely by ratchet gear

14. Empty valve, uniform flow battle plate

15. Change screen quickly by wedge device.

16. Good sealing effect

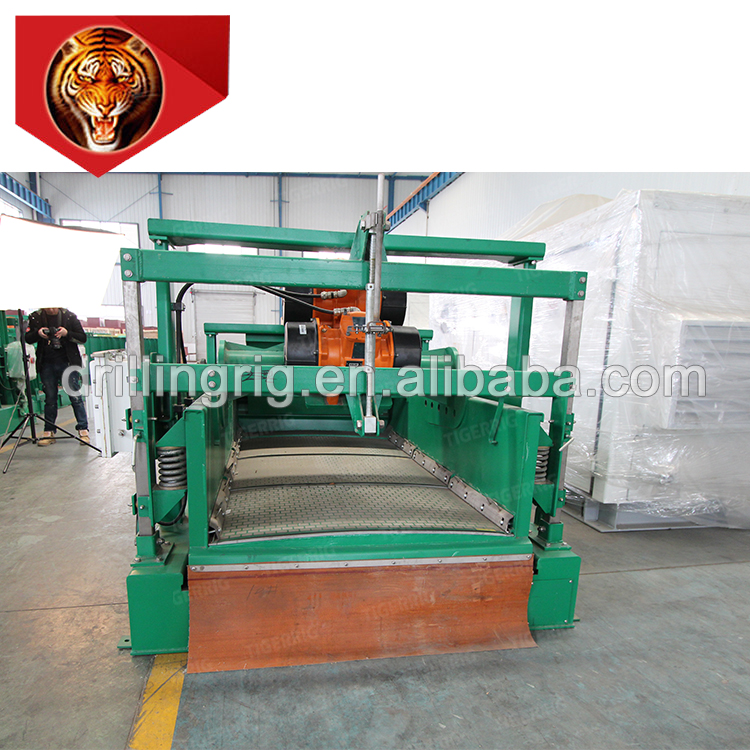

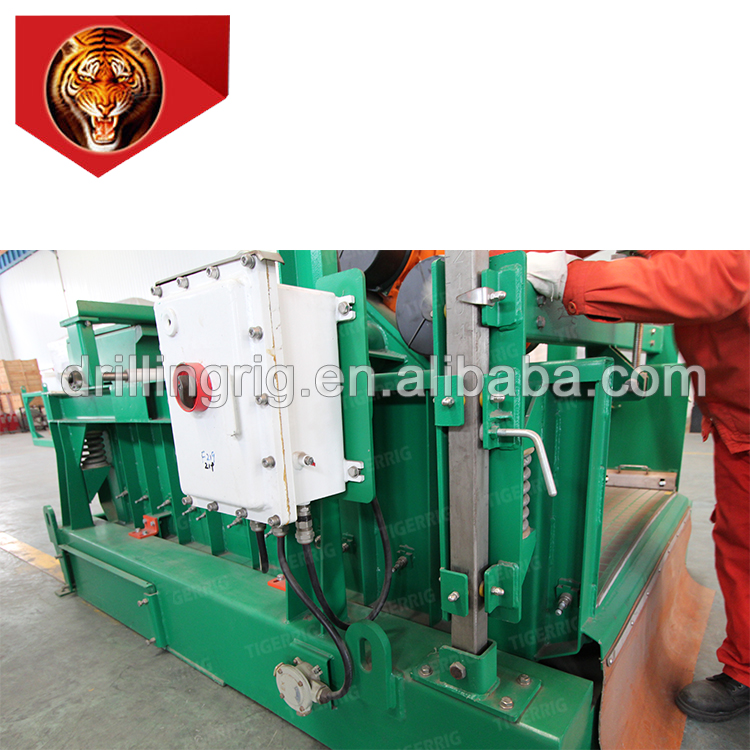

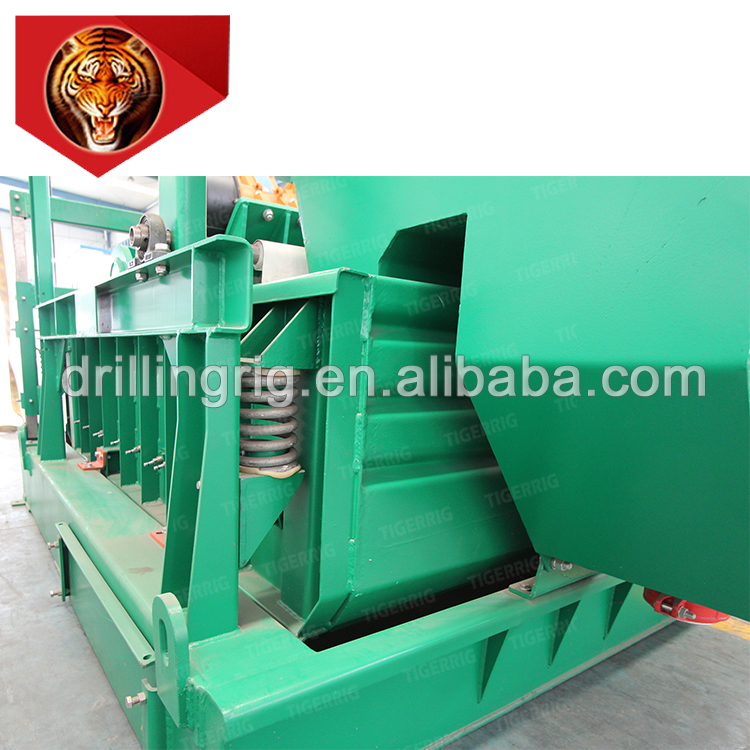

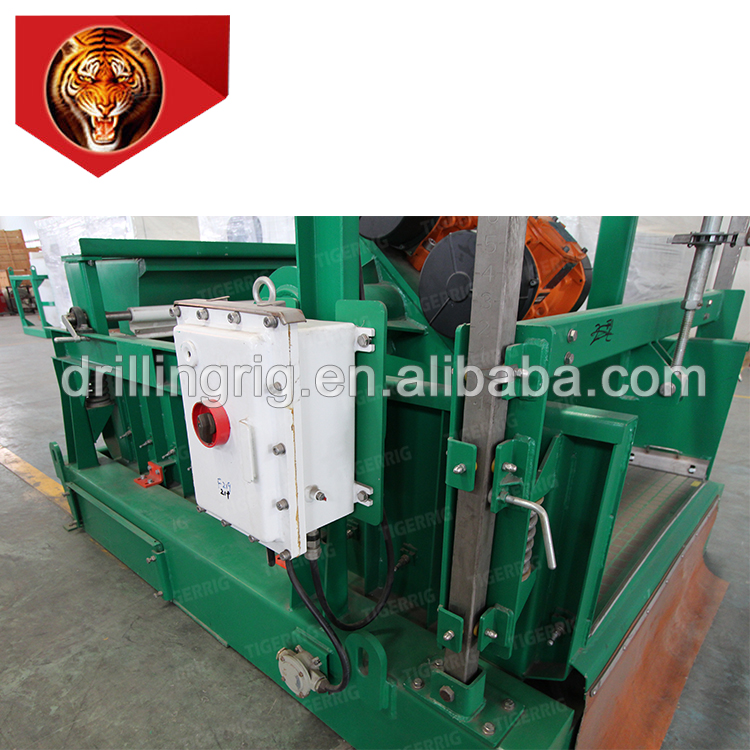

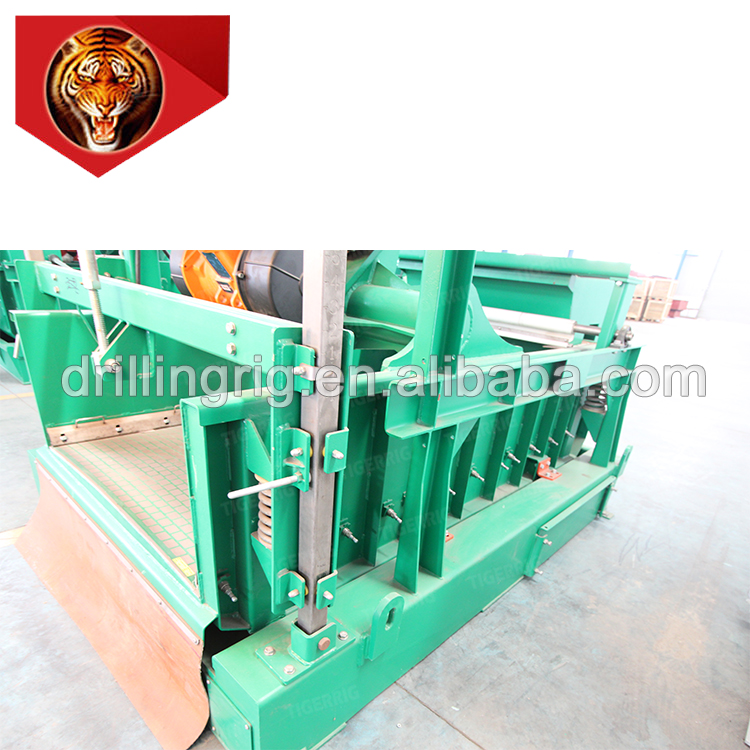

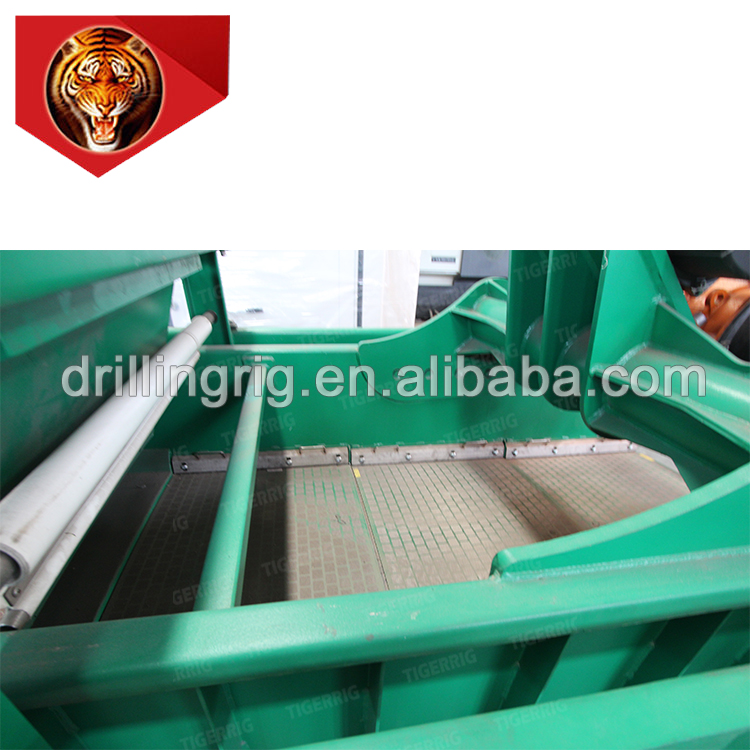

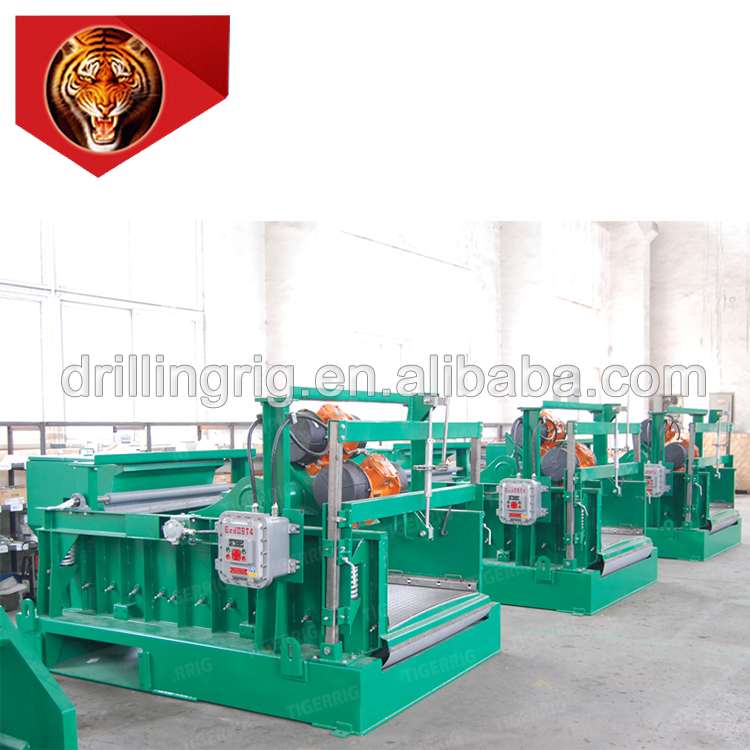

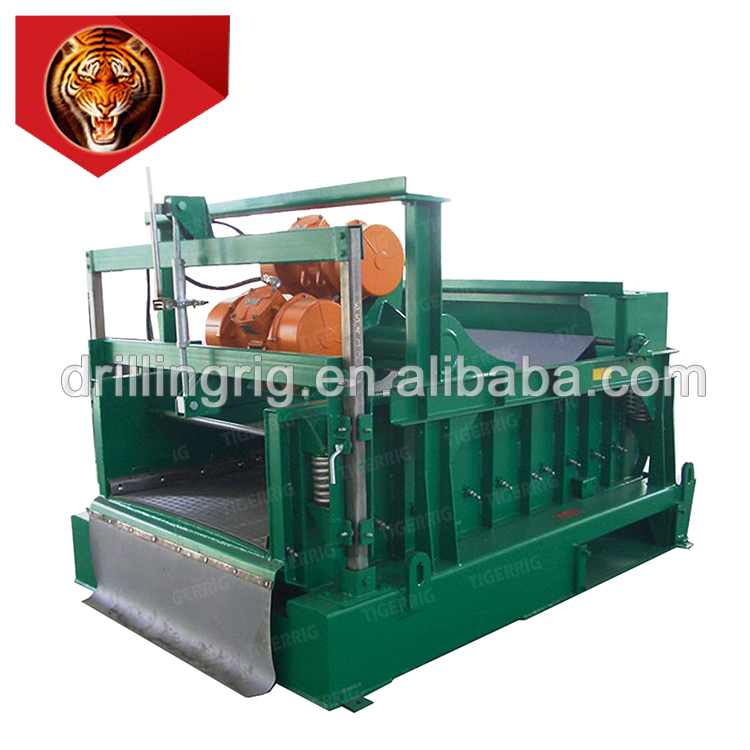

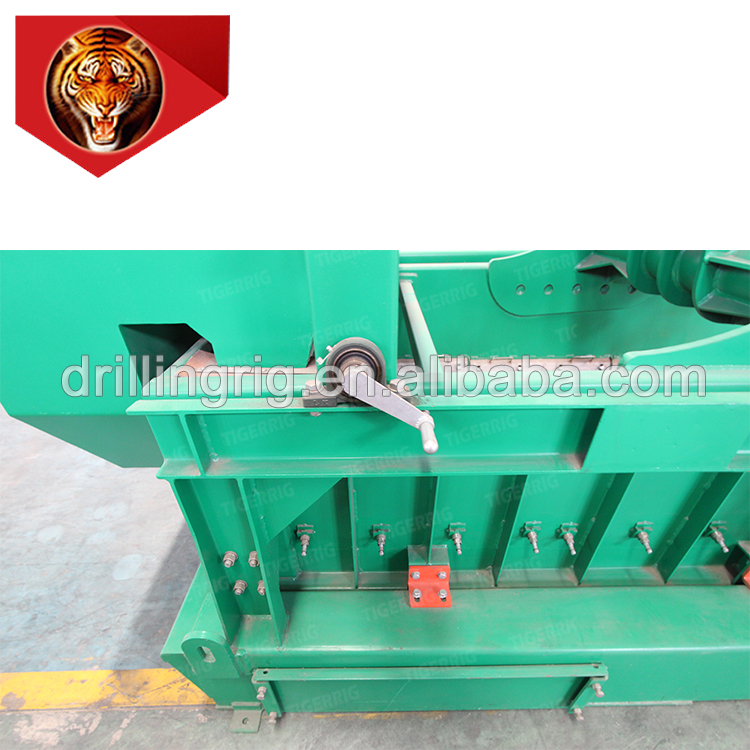

Tigerrig ZSZ-1 Shale shaker(2)(1).jpg

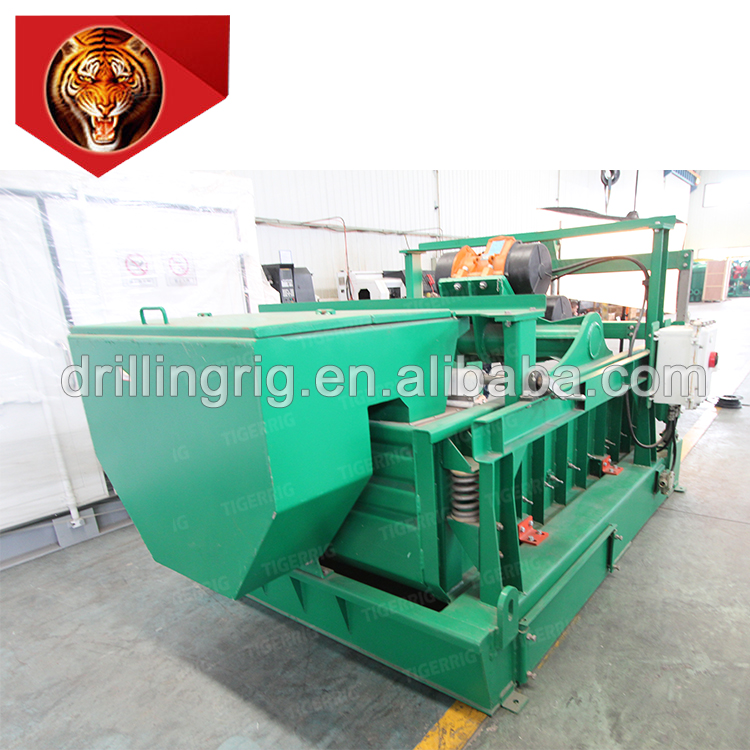

Tigerrig ZSZ-1 Shale shaker(1)(1).jpg

Tigerrig ZSZ-1 Shale shaker(3)(1).jpg

Tigerrig ZSZ-1 Shale shaker(4)(1).jpg

Tigerrig ZSZ-1A Shale shaker(1).JPG

Tigerrig ZSZ-1A Shale shaker(2).JPG

Tigerrig ZSZ-1A Shale shaker(3).JPG

Tigerrig ZSZ-1A Shale shaker(4).JPG

Tigerrig ZSZ-1A Shale shaker(5).JPG

Tigerrig ZSZ-1A Shale shaker(6).JPG

Tigerrig ZSZ-1A Shale shaker(7).JPG

Tigerrig ZSZ-1A Shale shaker(8).JPG

Tigerrig ZSZ-1A Shale shaker(9).JPG

Tigerrig ZSZ-1A Shale shaker(10).JPG

Tigerrig ZSZ-1A Shale shaker(11).JPG

Tigerrig ZSZ-1A Shale shaker(12).JPG

Tigerrig ZSZ-1A Shale shaker(13).JPG

Tigerrig ZSZ-1A Shale shaker(14).JPG

Tigerrig ZSZ-1A Shale shaker(15).JPG

Tigerrig ZSZ-1A Shale shaker(16).JPG

Tigerrig ZSZ-1A Shale shaker(17).JPG

Tigerrig ZSZ-1A Shale shaker(18).JPG

Tigerrig ZSZ-1A Shale shaker(19).JPG

Tigerrig ZSZ-1A Shale shaker(20).JPG

Tigerrig ZSZ-1A Shale shaker(21).JPG

Tigerrig ZSZ-1A Shale shaker(22).JPG

Tigerrig ZSZ-1A Shale shaker(23).JPG

Tigerrig ZSZ-1A Shale shaker(24).JPG

Tigerrig ZSZ-1A Shale shaker(25).JPG

Tigerrig ZSZ-1A Shale shaker(26).JPG

Tigerrig ZSZ-1A Shale shaker(27).JPG

Tigerrig ZSZ-1A Shale shaker(28).JPG

Specifications

Type	ZS/Z-1	ZS/Z-1A	ZS/Z-1-4P	ZS/Z-2
Screen Qty	3	3	4	3
Screen Size L×W（mm）	1053×697	1150×760	1053×697	1181×712
Vibration Motor（Kw）	2-1.865	2-1.865	2-1.865	2-1.865kw
Vibration Mode	Linear Motion			Linear Motion
Vibration Frequency（Hz）	25	25	25	25Hz
Vibration Intensity	6~8G	6~8G	6~8G	6~8G
Obliquity Adjustment	-1°~+6°	-1°~+6°	-1°~+6°	-3°~+5°
Explosion-proof Grade	ExdⅡBT4/IECEX/A-TEX			ExdIIBT4
Protection Grade	IP55			IP55
Dimension: L×W×H(mm)	2945×1920×1680	2945×1920×1680	2945×1920×1680	2936×1810×1460
Weight	1850kg	1850kg	1850kg	2100kg
