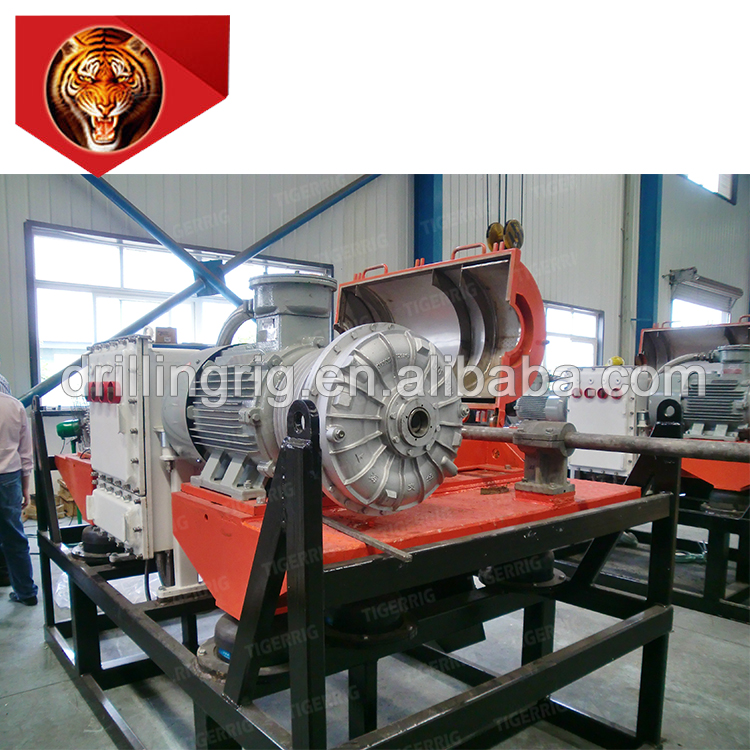

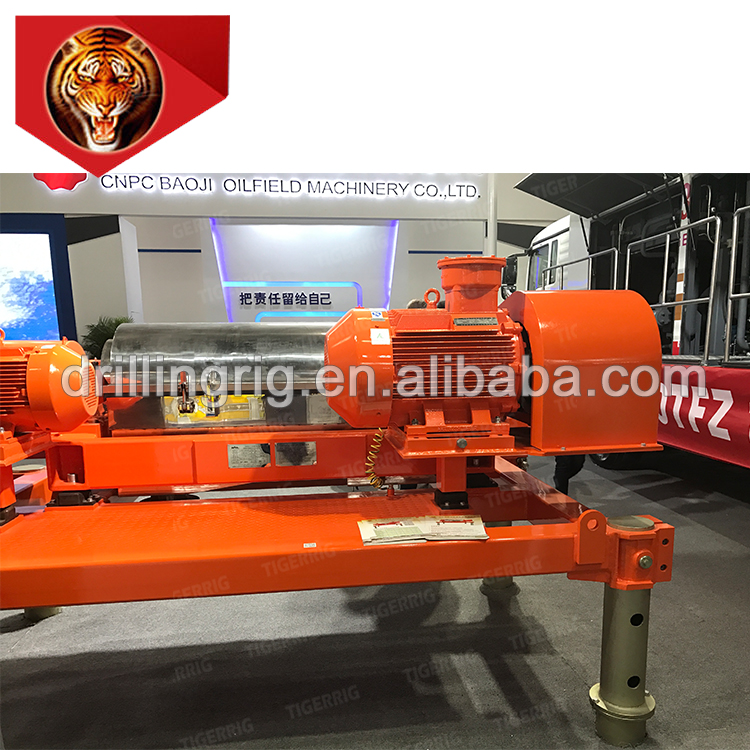

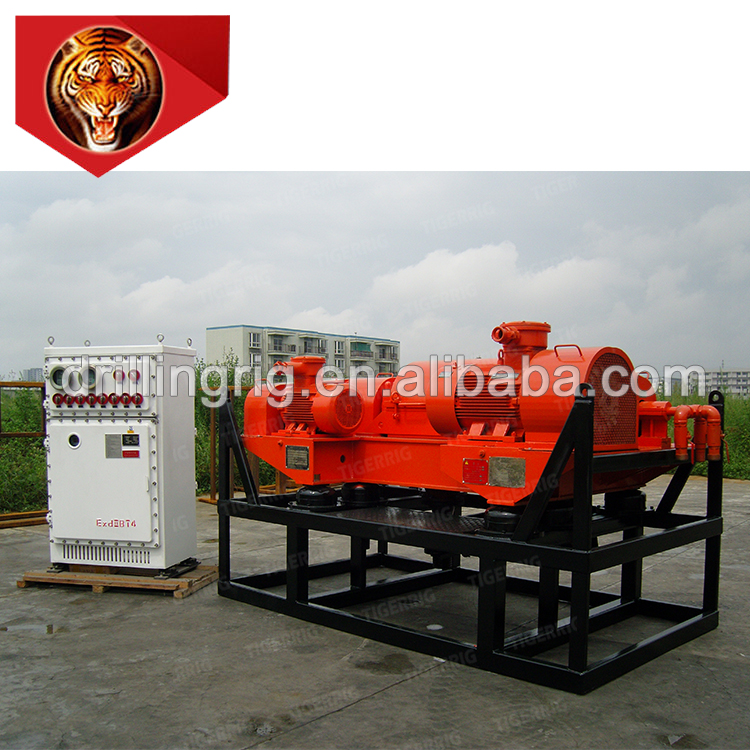

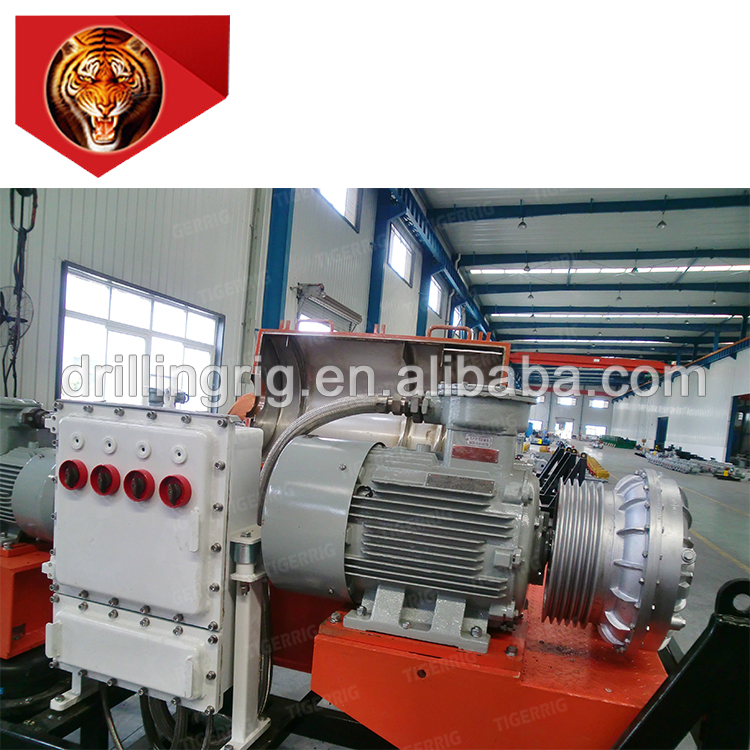

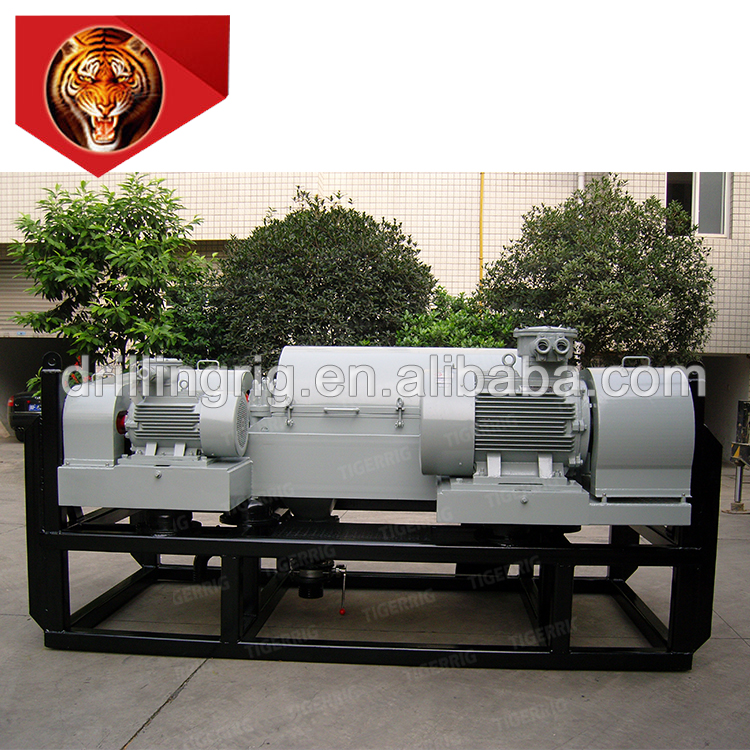

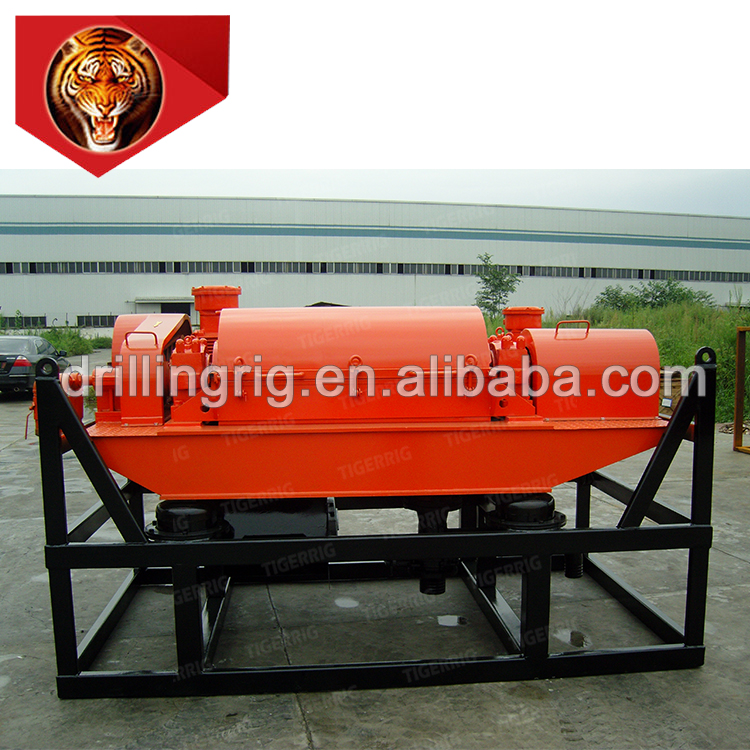

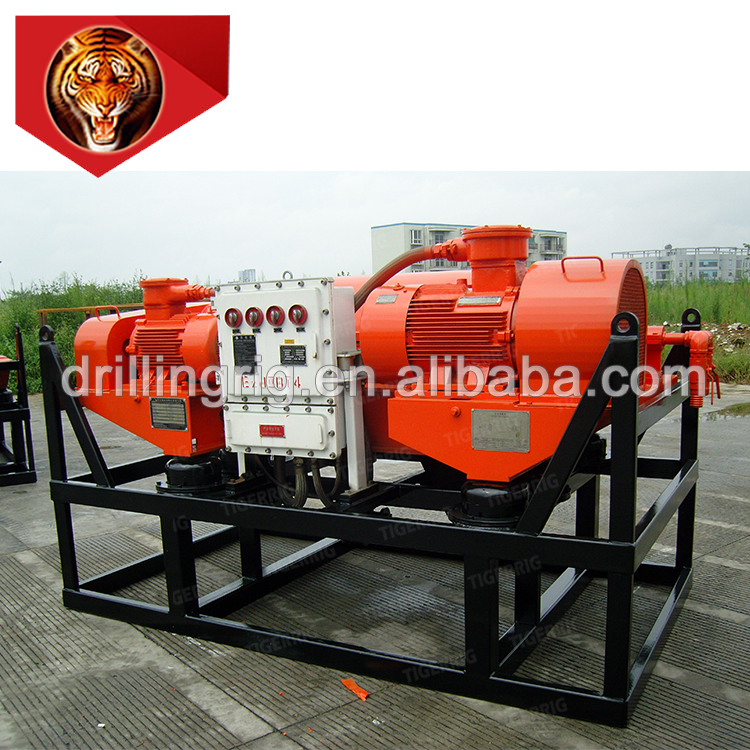

Gamboss Lw355x1257 Easily Adjustable Horizontal Oilfield Horizontal Decanter Centrifuge of Solid Control System
Main charactristics
1. Variable speed
2. The bowel and screw conveyer are made of stainless steel (American Steel No.:304)
3. Suitable for grids of 50Hz and 60Hz
4. The gyrator has the resistance to wearing and erosion, and the bowel cover, reset assembly; main transmission cover and auxiliary transmission cover are all made of stainless steel.
5. Double overload protection
6. Easily adjustable liquid discharge weir height

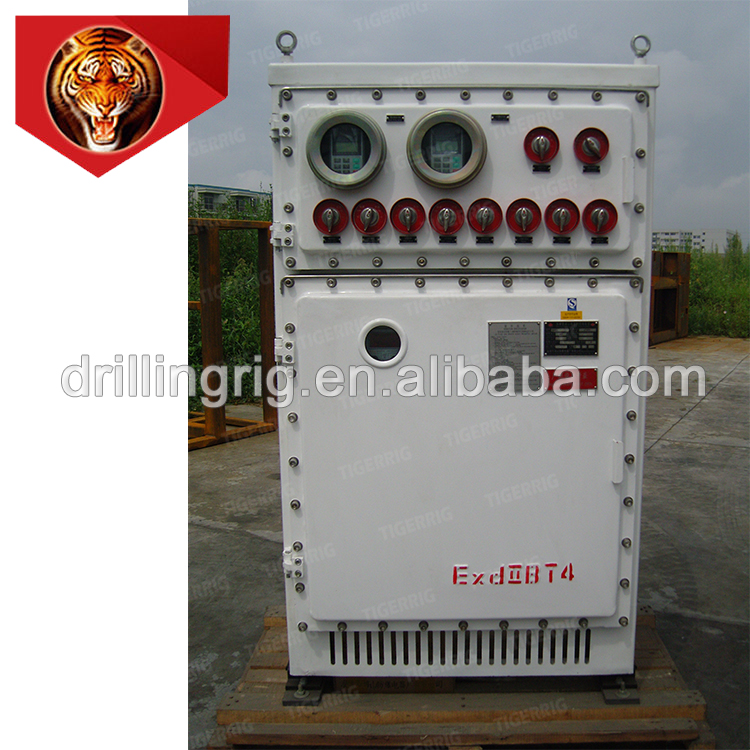

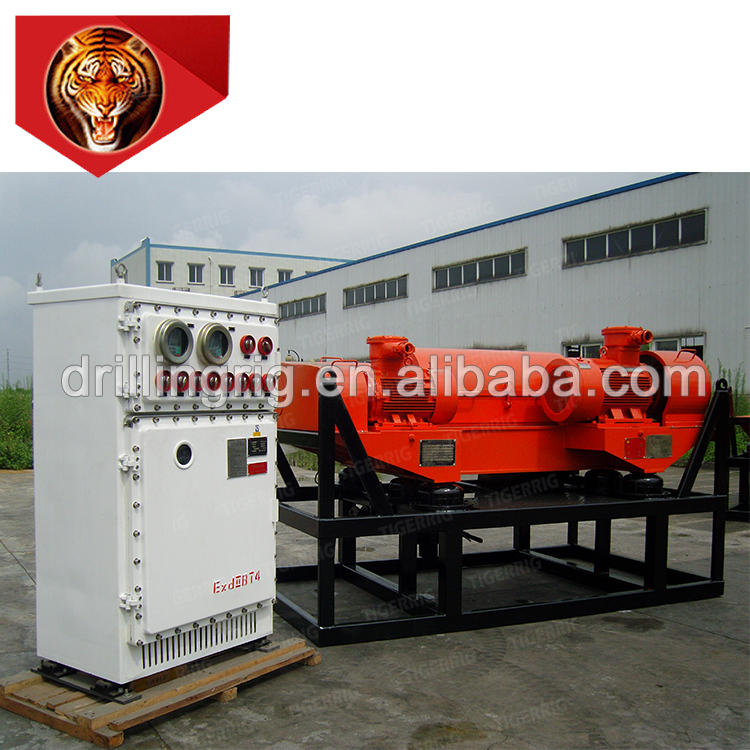

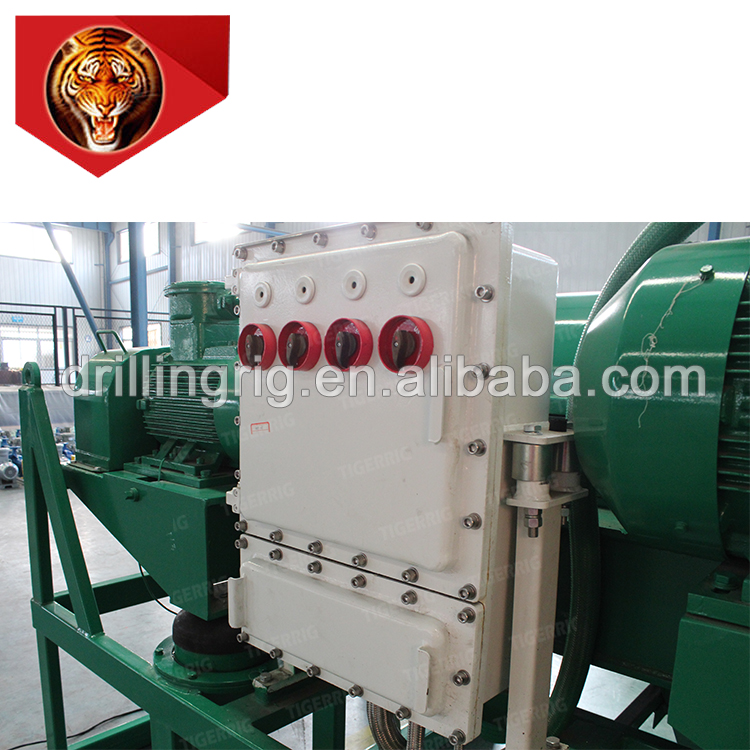

7. Pressurized EX Proof VFD control cabinet with PLC controlled.
SKF bearing
Specifications
Technical Parameters
Unit
Rated freq.
LW355×1257-N
Variable freq.
LW355×1257BP-N
Inner Diameter of Bowel
mm
355
Active Length of Bowel
1257
Max. Rotation Speed of Bowel
r/min
3400
Active Rotation Speed of Bowel
2800
3000
≤3200
G-force
1558
1789
≤2035
Differential Speed of Conveyor
27~52
≤60
Rotation Direction of the Bowel and the Pulley of the Gear Box
To be clockwise when observed from the small end of bowel.
Characteristics of Conveyor Flight
Double-ended, Left-rotated
Max. Throughput
(special gravity<1.1g/cm3)
m3/h
22~30
≤36
Main Motor
Model
YB200L-4
Rated Power
KW
30
Rated Speed
1470
Back Motor
YB160M-6
7.5
970
Model of Feed Pump
Centrifugal Pump LSB23J, SB23J or Screw Pump
Overall Dimension(L×W×H)
3000×1476×1620
Overall Weight
(including feed pump)
Kg
3300
3900
（including control cabinet）
