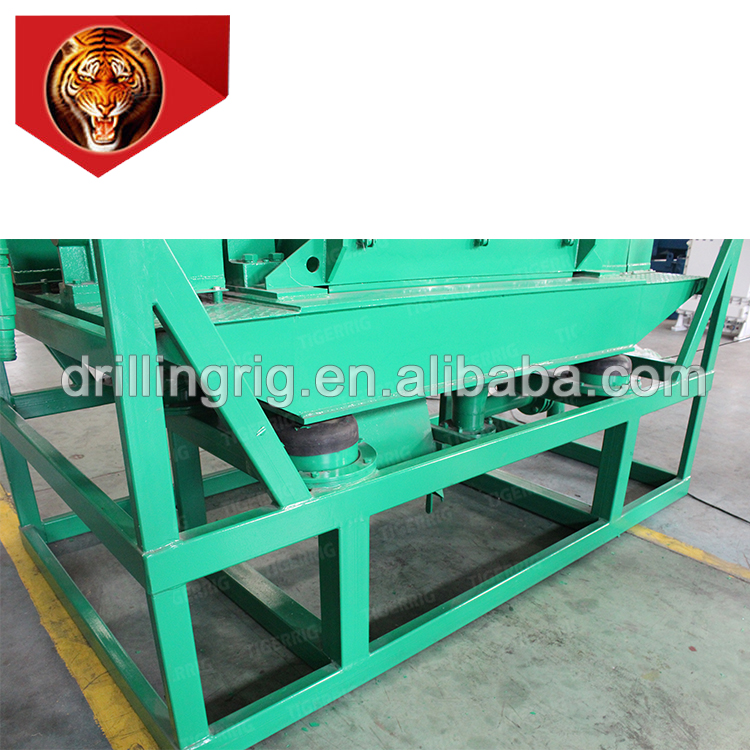

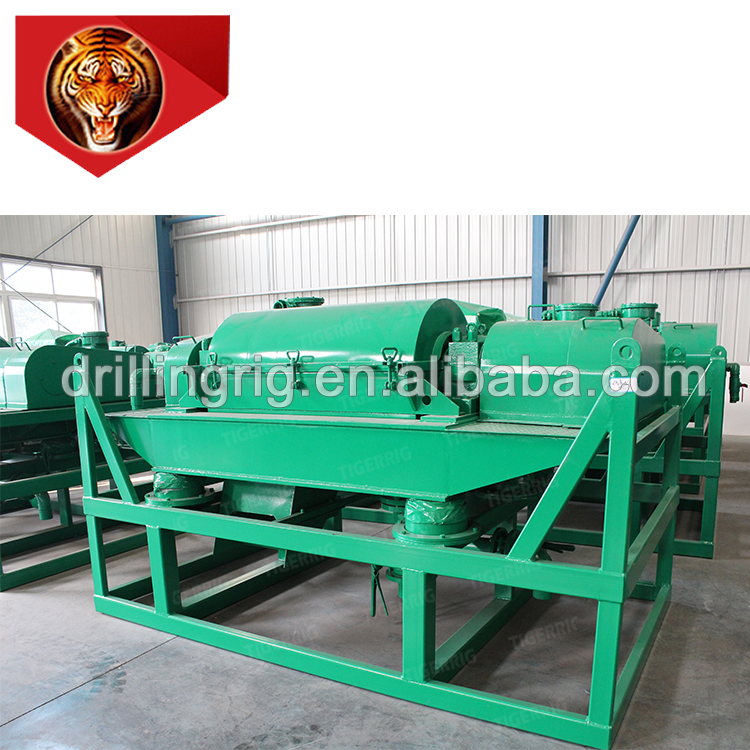

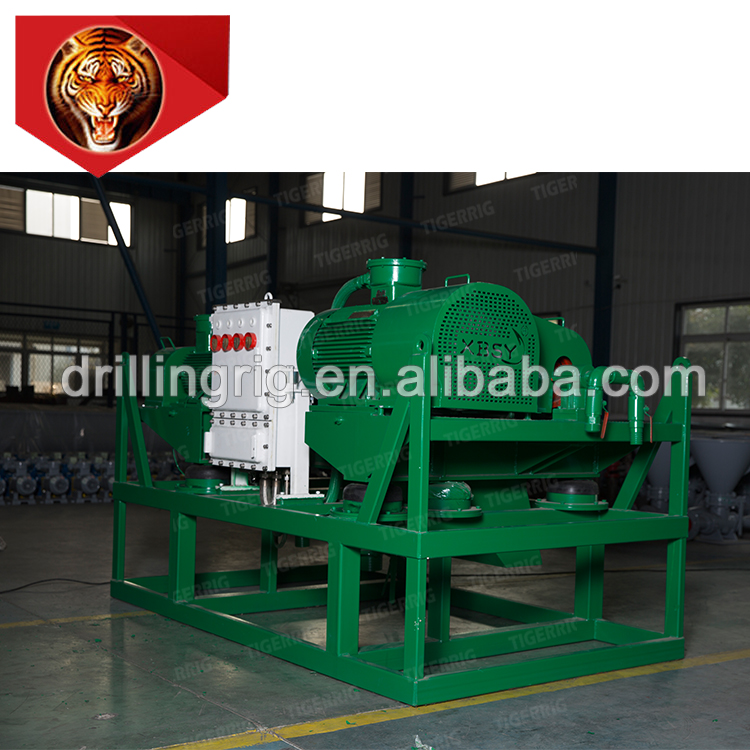

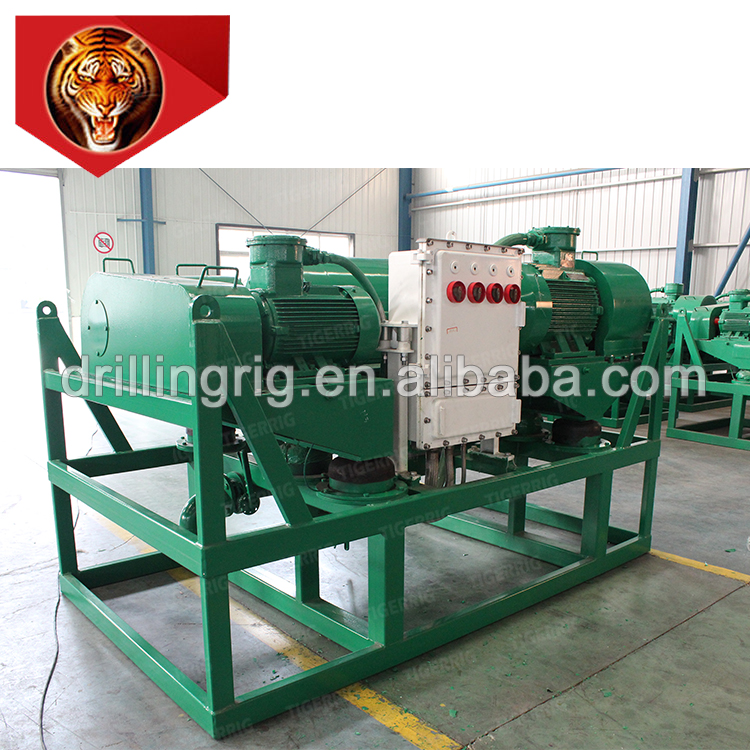

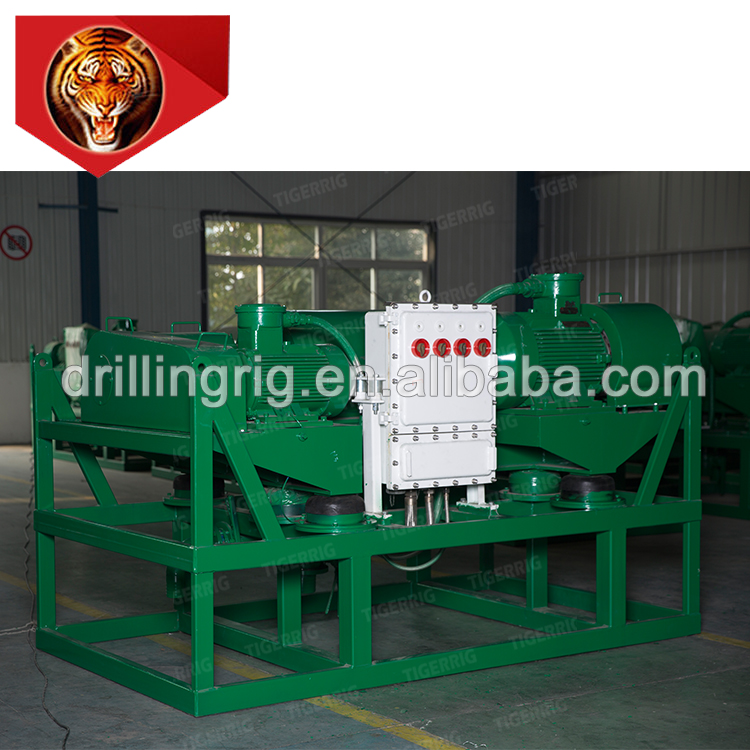

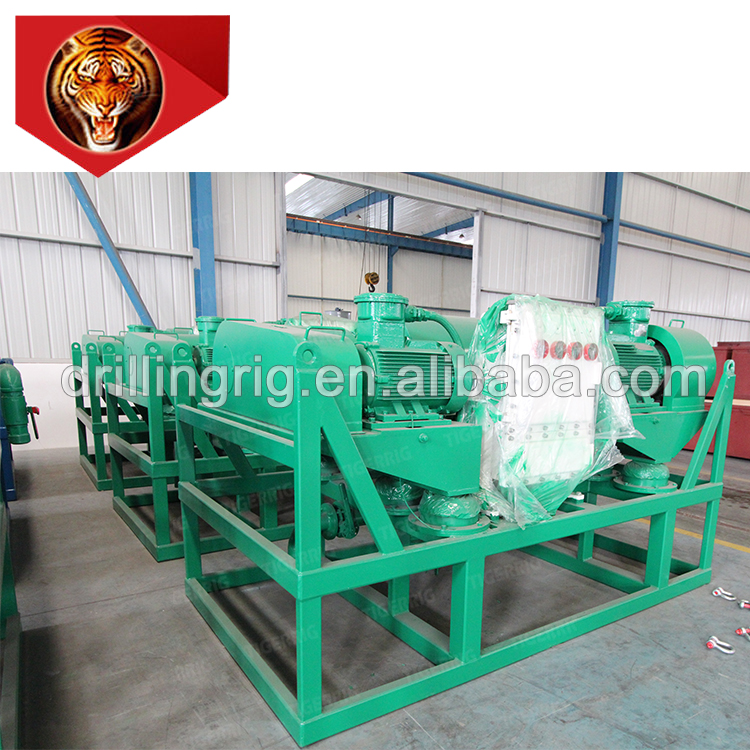

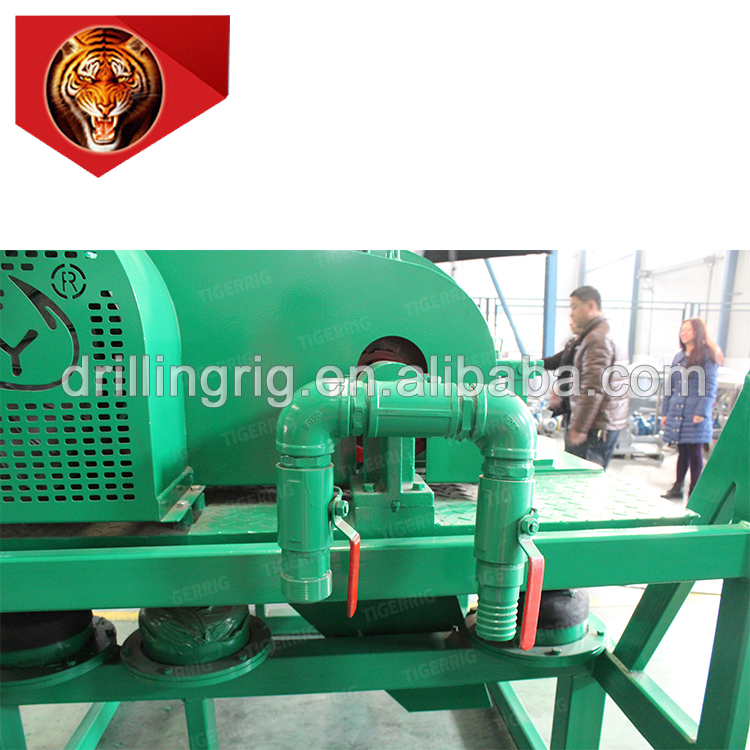

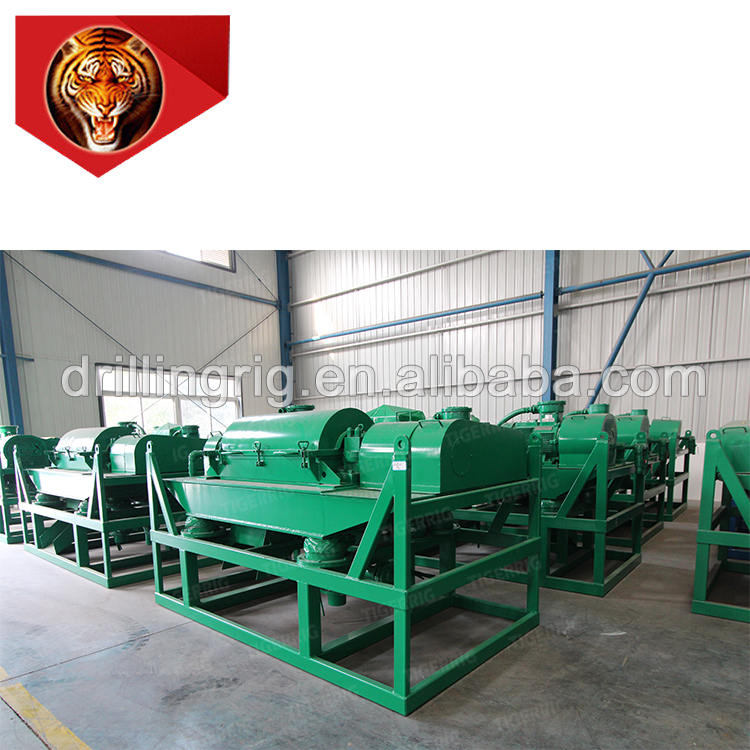

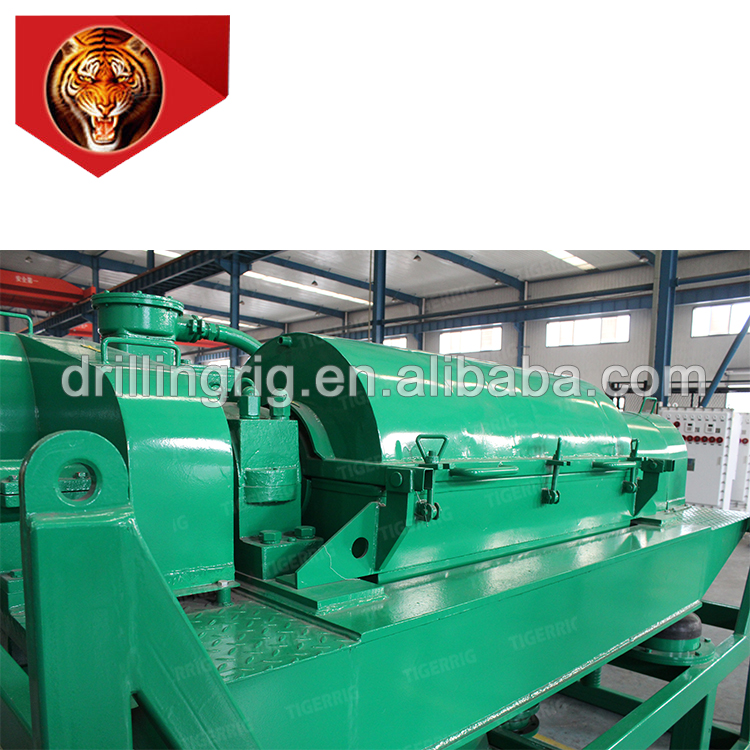

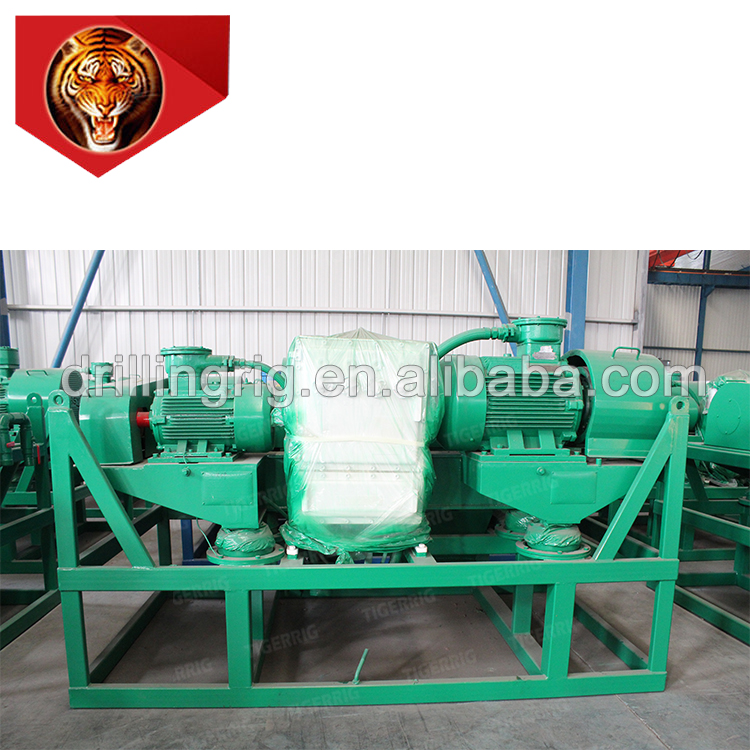

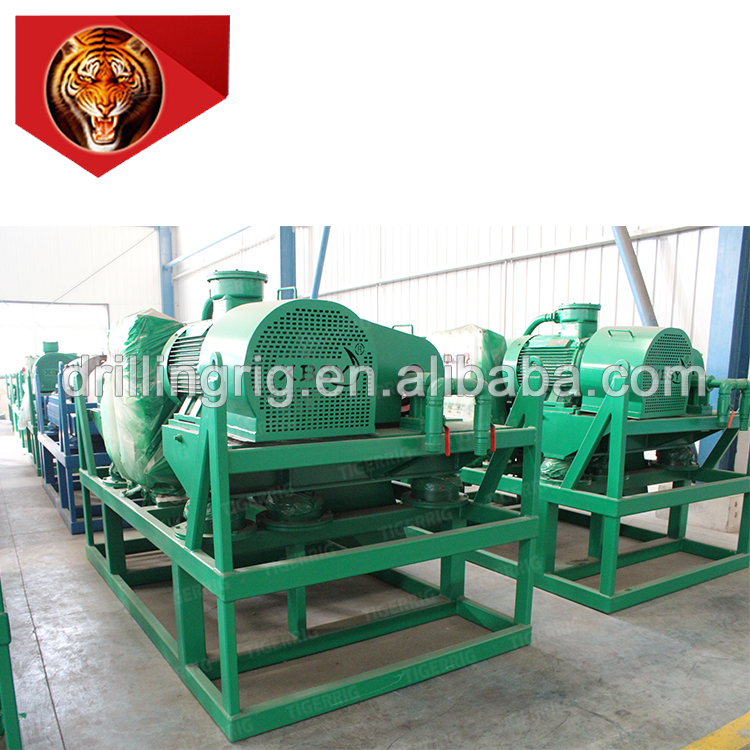

Tigerrig Lw450 Variable Speed Superior Quality Oil Well Drilling Mud Decanter Centrifuge Separator
Main charactristics
1. Occupy smallmain charactristics
2. Variable speed
3. Suitable for grids of 50Hz and 60Hz
4. The gyrator has the resistance to wearing and erosion, and the bowel cover, reset assembly; main transmission cover and auxiliary transmission cover are all made of stainless steel.
5. Double overload protection

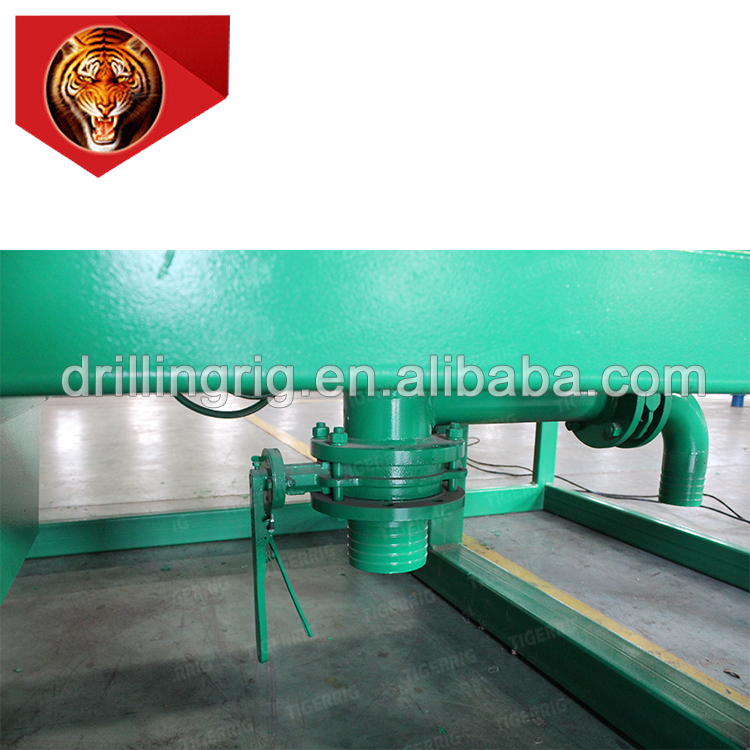

6. Easily adjustable liquid discharge weir height

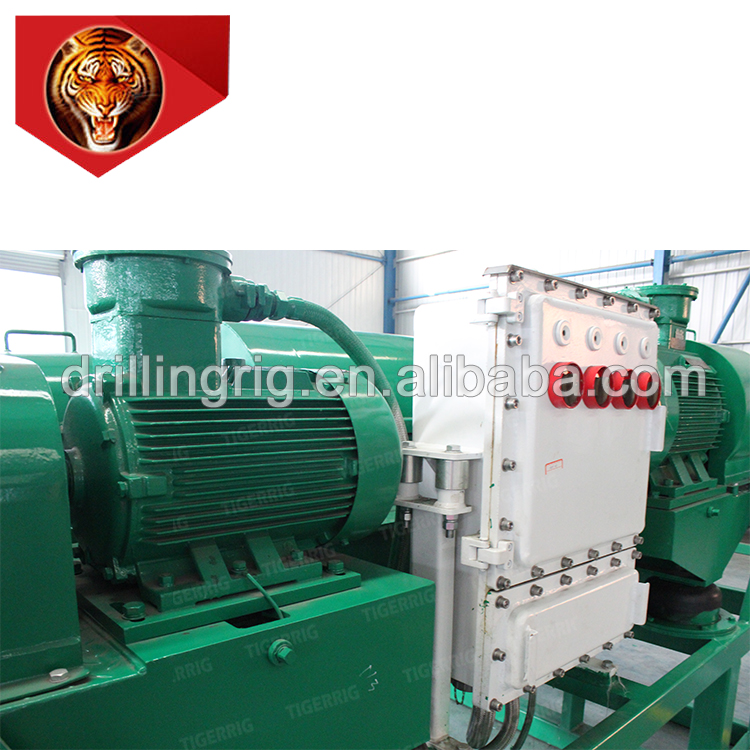

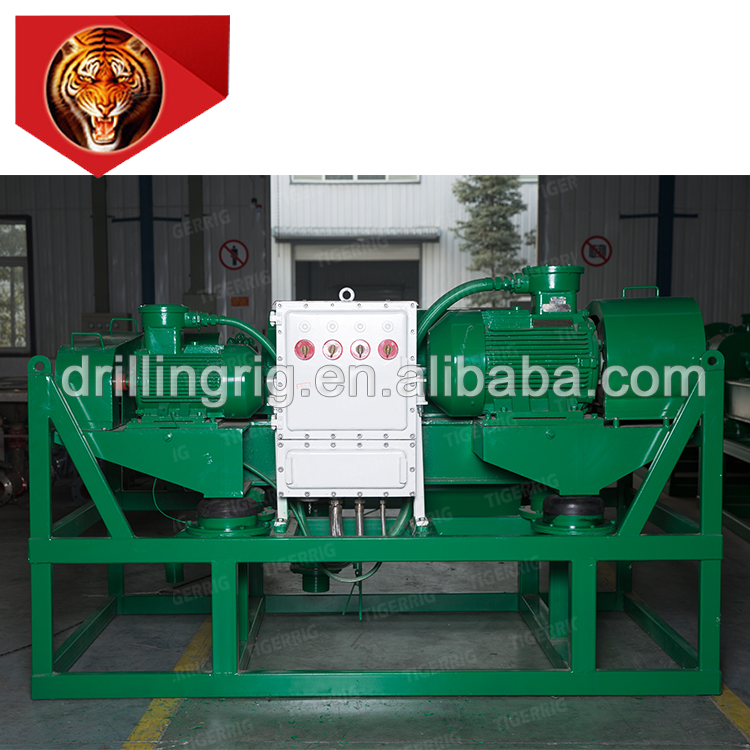

7. Pressurized EX Proof VFD control cabinet with PLC controlled.
SKF bearing
Specifications
Technical Parameters
unit
Rated freq.
LW450×1000-N
Variable freq. LW450×1000BP-N
N1
N2
N3
Inner Diameter of Bowel
mm
450
Active Length of Bowel
1000
Max. Rotation Speed of Bowel
r/min
2500
Active Rotation Speed of Bowel
1800
2000
2200
≤2200
G-force
815
1007
1219
≤1219
Differential Speed of Conveyor
17~36
≤44
Rotation Direction of the Bowel and the Pulley of the Gear Box
To be clockwise when observed from the small end of bowel.
Characteristics of Conveyor Flight
Double-ended, left-rotated
Max. Throughput
(special gravity<1.1g/cm3)
m3/h
40
45~50
50~60

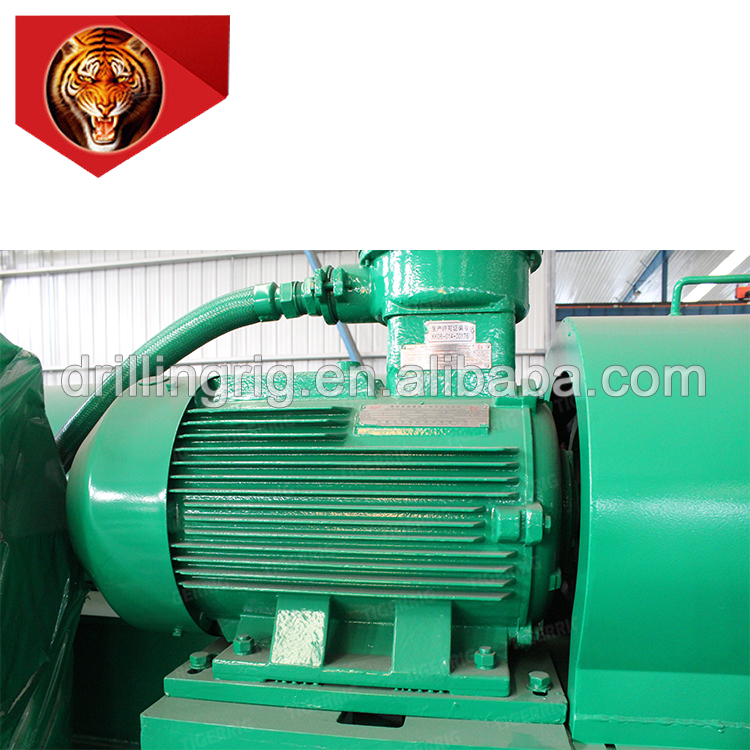

Main Motor
Model
YB200L-4
YB225S-4
Rated Power
KW
30
37
Rated Speed
1470
1480
Back Motor
YB160M-6
7.5
970
Model of Feed Pump
Centrifugal pump LSB23J, SB23J or screw pump
Overall Dimension(L×W×H)
2750×1580×1720（YB200L-4）
2750×1580×1780（YB225S-4）
Overall Weight
(including feed pump)
Kg
3400
3500
4000
（including control cabinet）
