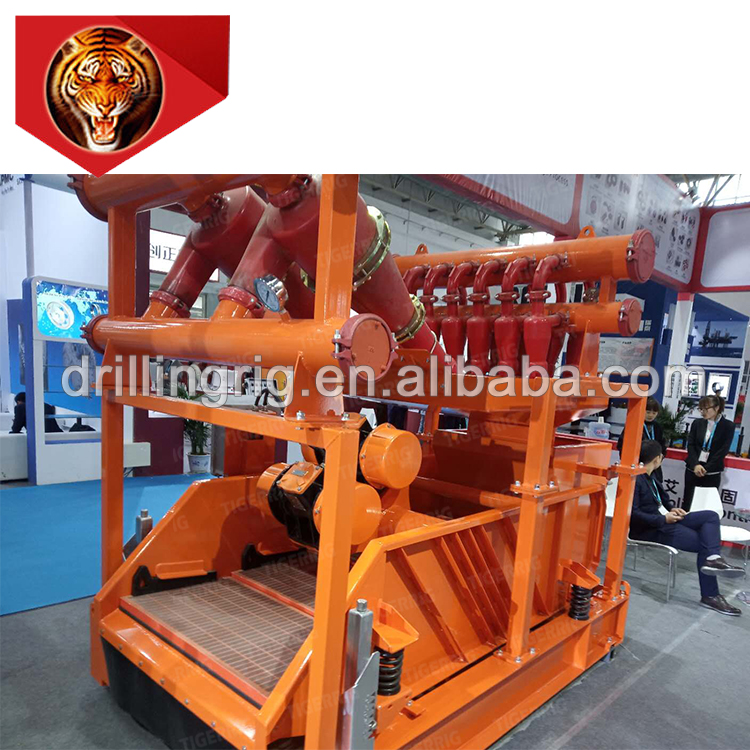

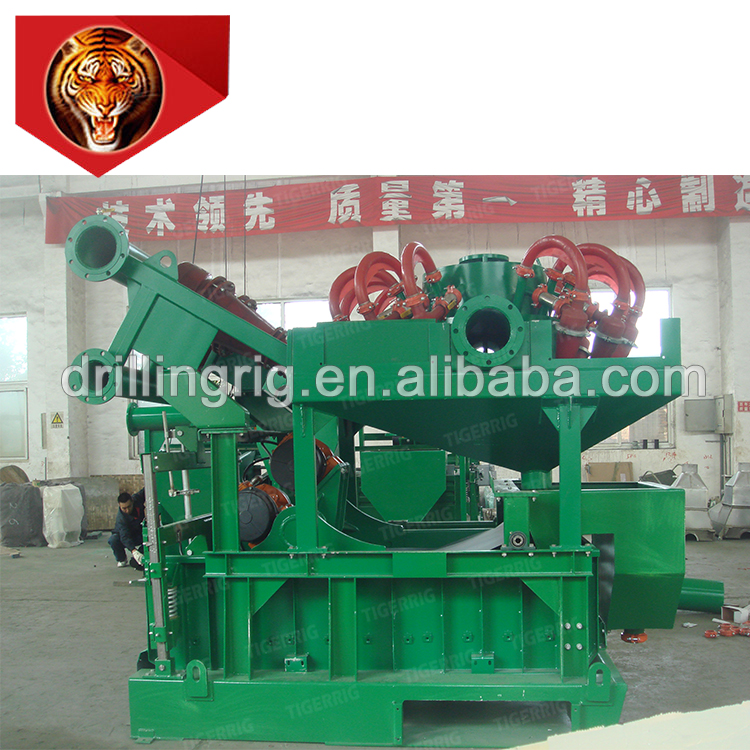

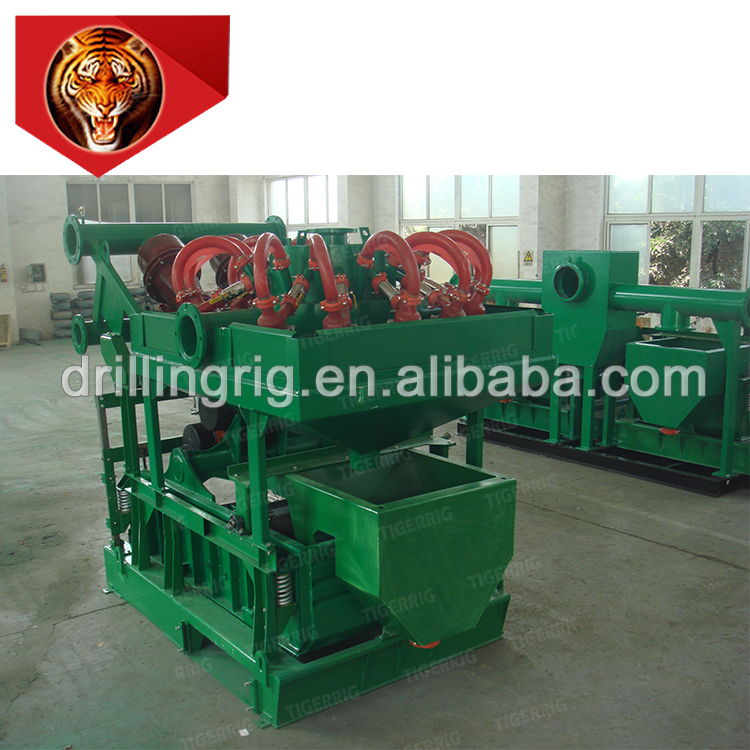

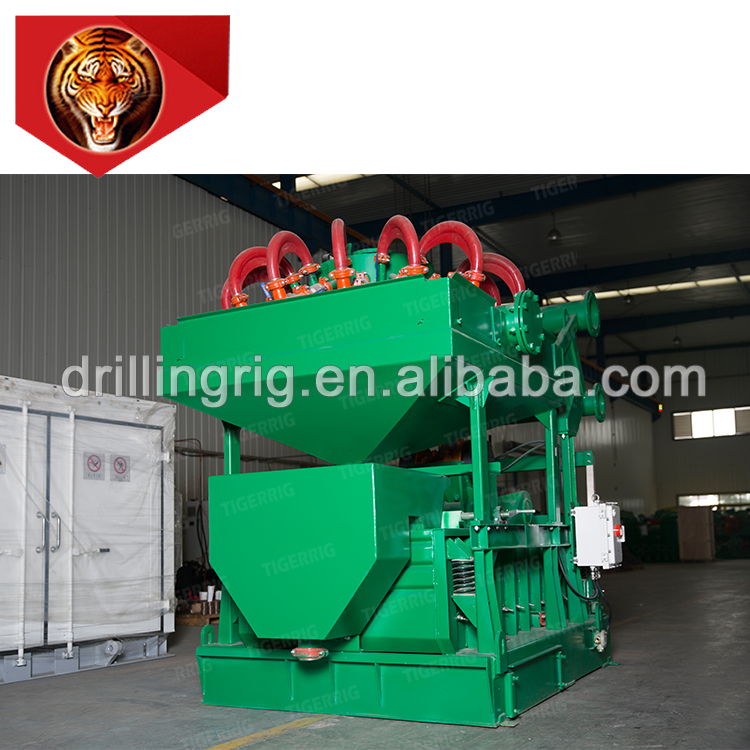

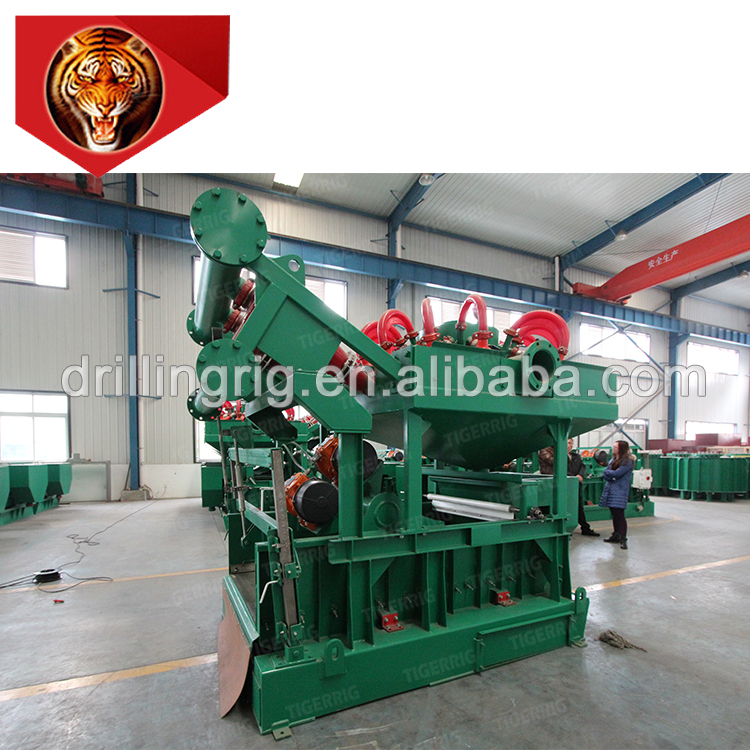

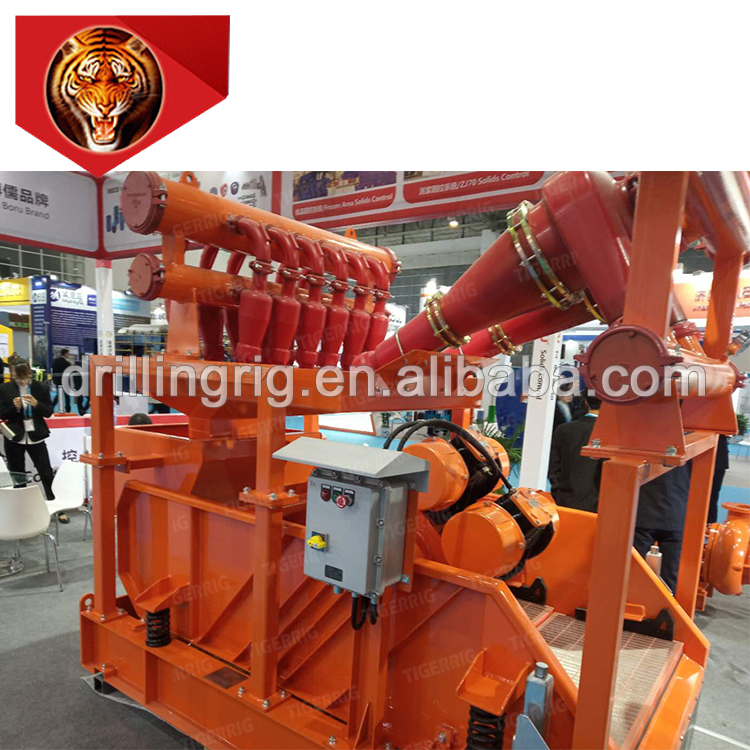

Gamboss API New Design High Quality Solid Control System Mud Cleaner For Oil Well Drilling Rig

< >

Features
Specification

Gamboss API New Design High Quality Solid Control System Mud Cleaner For Oil Well Drilling Rig

Product information:

The Drilling Fluid Shear Pump reduces the cost of mixing polymers and clays while improving mud properties. Shearing the polymers eliminates fish eyes and prevents polymer chaining (long strings), which cannot pass through the shaker screens. The Drilling Fluid Shear Pump is available as a belt-driven or diesel-driven package including a hopper, mud gun, and transfer line orifice plate. A complete system with skid, tanks, and piping are also available.

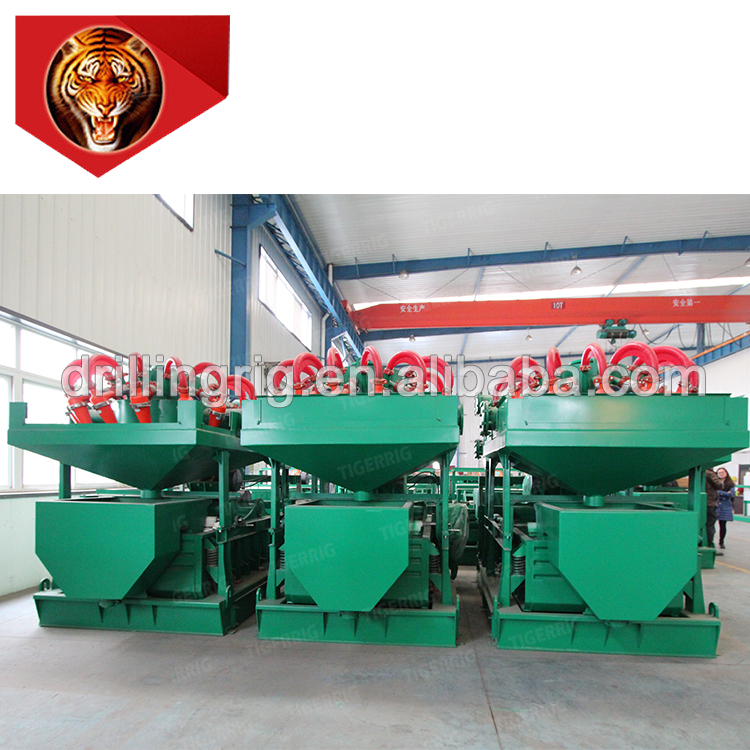

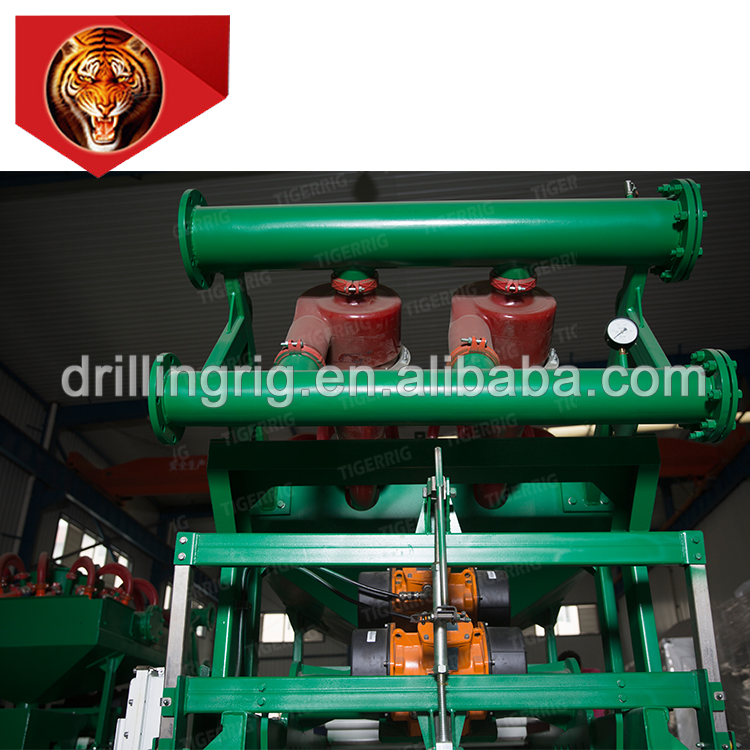

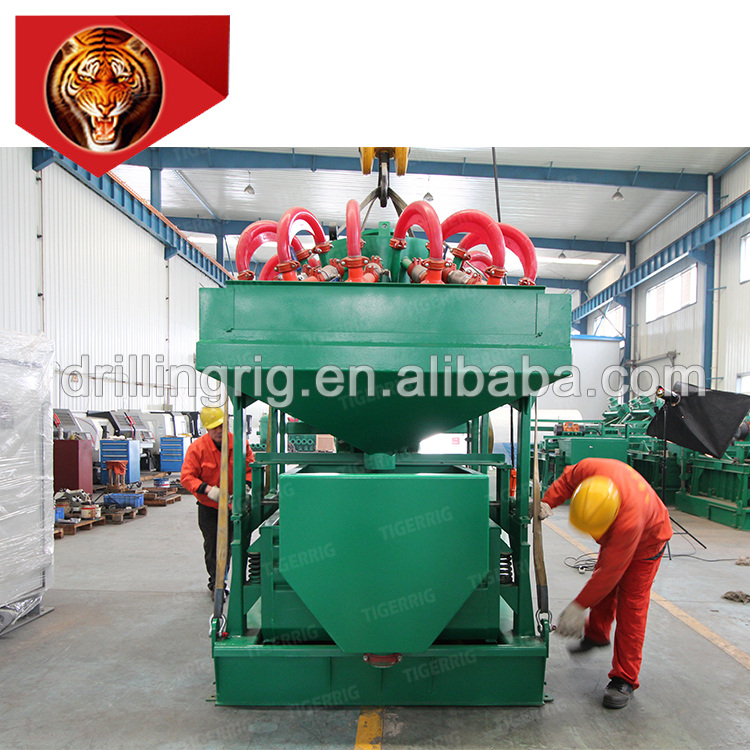

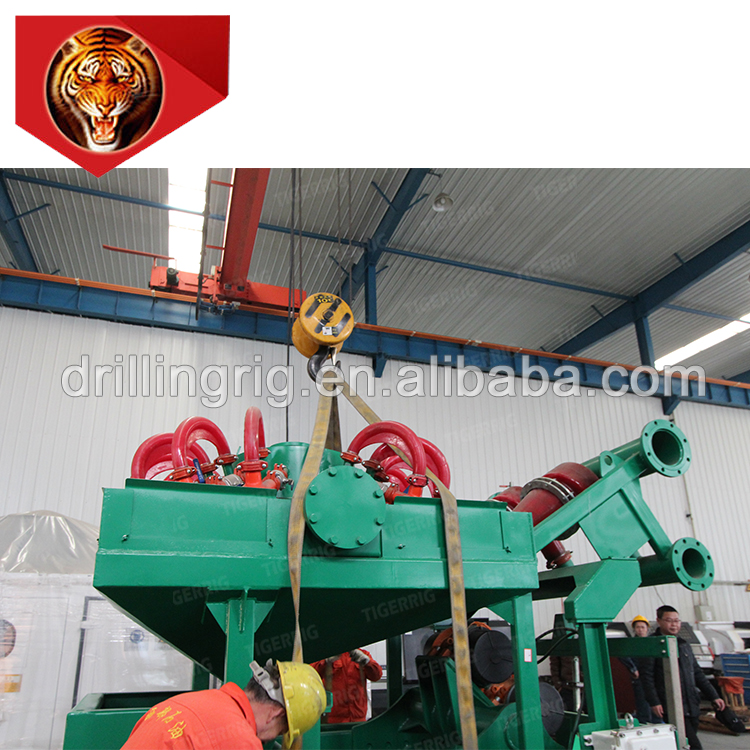

Tigerrig ZJ703E-D1S8N Mud Cleaner(1).JPG

Tigerrig ZJ703E-D1S8N Mud Cleaner(3).JPG

Tigerrig ZJ703E-D1S8N Mud Cleaner(10).JPG

Tigerrig ZJ703E-D1S8N Mud Cleaner(16).JPG

Tigerrig ZJ703E-2S12N Mud Cleaner(4).jpg

Tigerrig ZJ703E-2S12N Mud Cleaner(5).jpg

Tigerrig ZJ703E-2S12N Mud Cleaner(7).JPG

Tigerrig ZJ703E-2S12N Mud Cleaner(8).JPG

Tigerrig ZJ594E-2S12N Mud Cleaner(1).jpg

Tigerrig ZJ594E-2S12N Mud Cleaner(7).jpg

Tigerrig ZJ594E-2S12N Mud Cleaner(10).jpg

Tigerrig ZJ594E-2S12N Mud Cleaner(11).jpg

Specifications

Model	ZJ703E-D1S8N	ZJ703E-2S12N	ZJ594E-2S12N	ZJ703E-3S16N	ZJ594E-3S16N
Capacity	120m3/h(528GPM)	240m3/h(1056GPM)		360m3/h(1584GPM)
Desander Size	10 Inch
Desander Qty	1pcs	2pcs		3pcs
Desilter Size	4 Inch
Desilter Qty	8pcs	12pcs		16pcs
Working Pressure	0.25~0.4Mpa
Feeding Size	6 Inch
Output Size	8 Inch

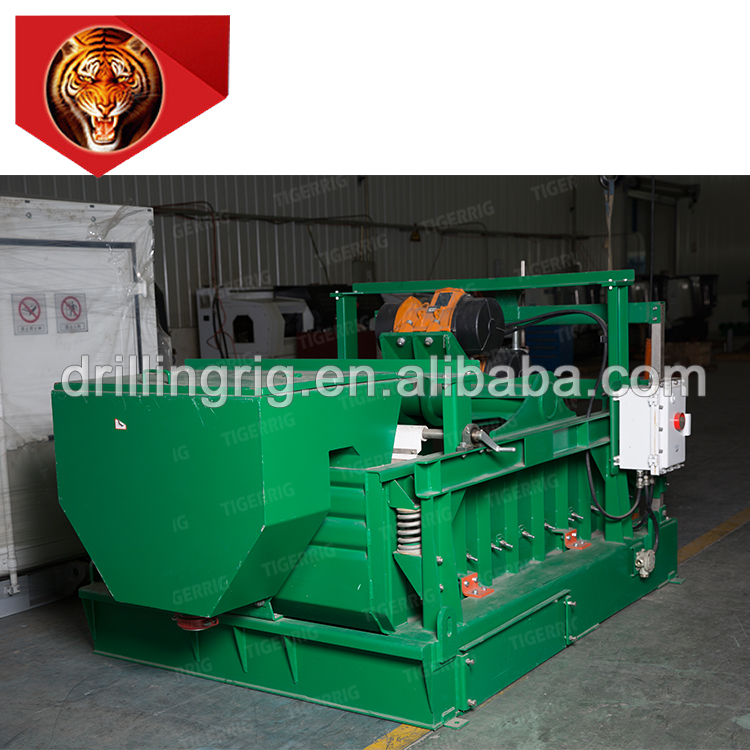

Bottom Shale Shaker Specs
Shaker Model	GNZS703E		GNZS594E	GNZS703E	GNZS594E
Vibration Mode	Linear Motion
Vibration Motor	2×1.72Kw
Screen Qty	3pcs		4pcs	3pcs	4pcs
Screen Size	700×1250mm		585×1165mm	700×1250mm	585×1165mm
Screen Area	2.63m2		2.73m2	2.63m2	2.73m2
Adjust G Force	≤7.5G
Vibration Amplitude	4.14~5.96mm
Deck Angle Range	-1°~+5° (Eletric & Mechanical)
EX Standard	ExdIIBt4 / IEC EX/ ATEX
Weight (Kg)	2071	2296	2343	2393	2440
Dimension(mm)	2419×2113×1848	2419×2113×2147	2639×2113×2147	2419×2113×2147	2639×2113×2147
