Gamboss High Efficiency API Standard Oil Well Drilling Rig Solid Control System Mud Cleaner For Solid Control Equipment

< >

Features
Specification

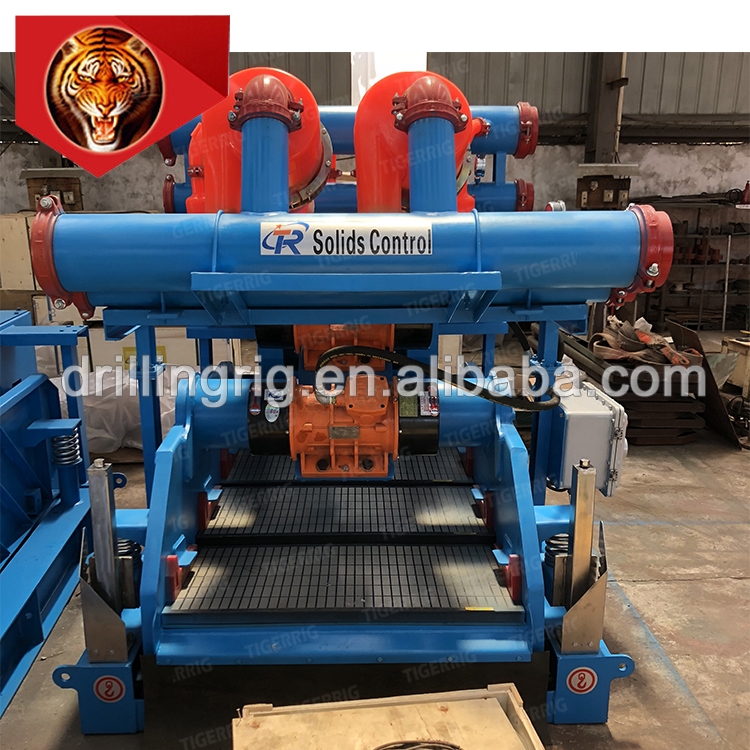

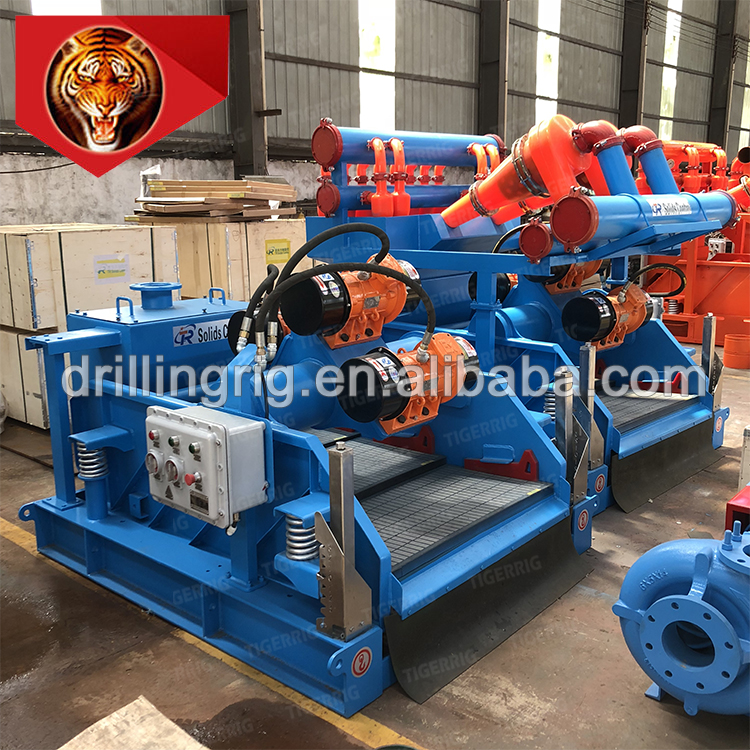

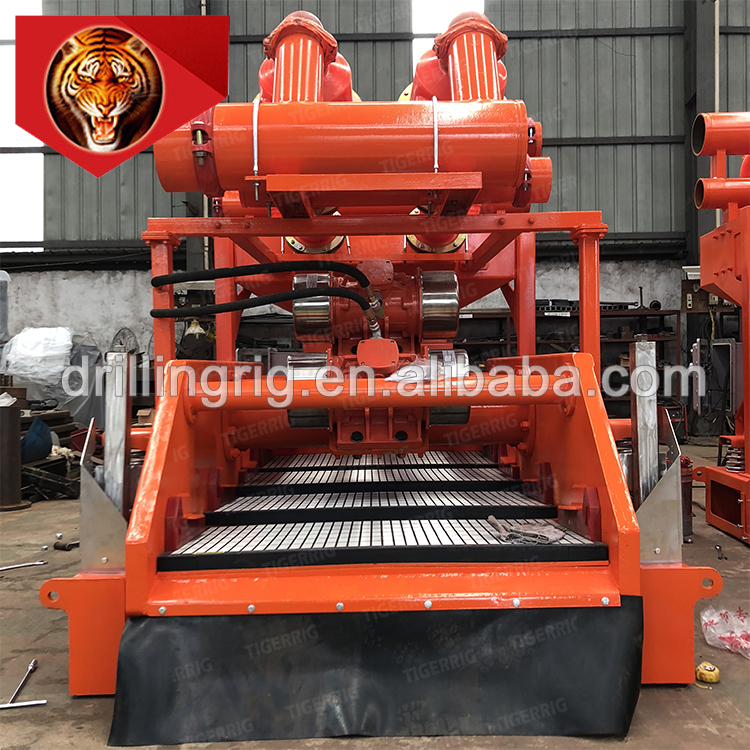

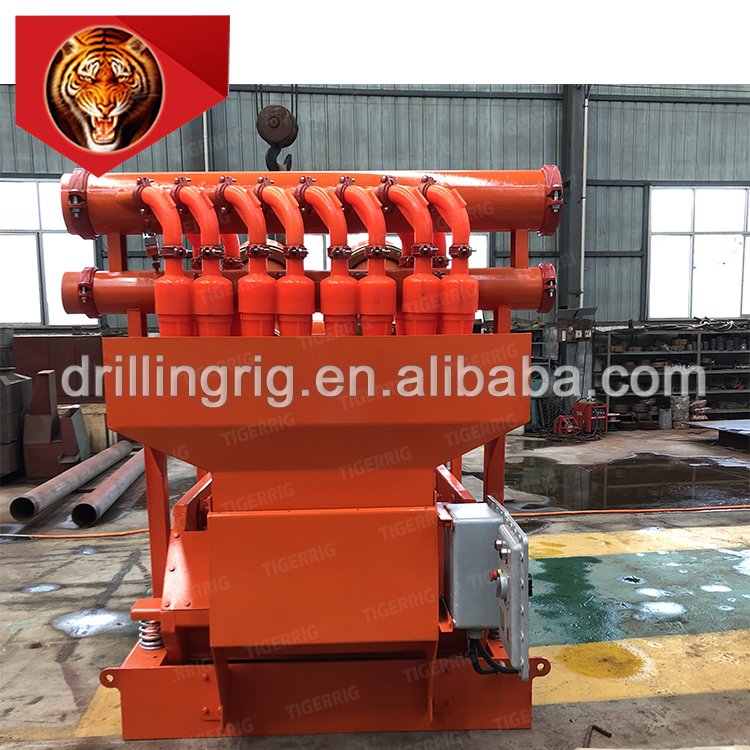

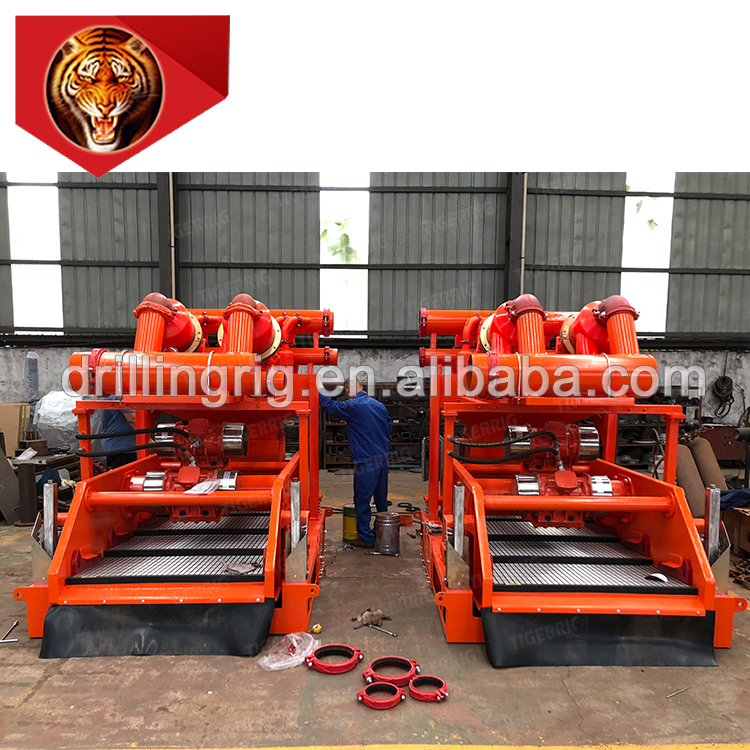

Gamboss High Efficiency API Standard Oil Well Drilling Rig Solid Control System Mud Cleaner For Solid Control Equipment

Main Characteristics:

1. Desander & Desilter & Shale Shaker 3 in one-unit mud cleaner for compact footprint.

2. Polyurethane Material hydro cyclone for long life

3. Removable hydro cyclone assembly from mud cleaner skid for adjust to be a shale shaker.

4. Patent electric shaker deck angle adjustable while working, mechanical deck angle adjustment for backup application.

5. Patent tighten rubber sealing for mud cleaner shaker deck and screen for fine screen

Shaker bottom deck made from Stainless Steel for long service life.

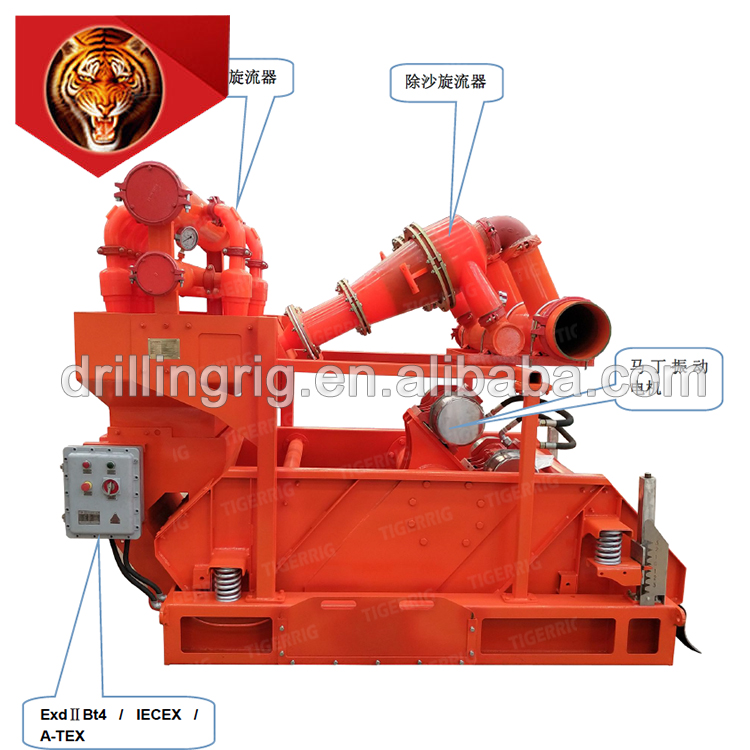

Tigerrig RQJ200X2S Mud Cleaner(1).jpg

Tigerrig RQJ200X2S Mud Cleaner(2).jpg

Tigerrig RQJ200X2S Mud Cleaner(3).jpg

Tigerrig RQJ200X2S Mud Cleaner(4).jpg

Tigerrig TRQJ2350X2S Mud Cleaner (1).jpg

Tigerrig TRQJ2350X2S Mud Cleaner (4).jpg

Tigerrig TRQJ2350X2S Mud Cleaner (5).jpg

Tigerrig TRQJ2350X2S Mud Cleaner (6).jpg

Tigerrig TRQJ250X3S Mud Cleaner(2).jpg

Tigerrig TRQJ250X3S Mud Cleaner(3).jpg

Tigerrig TRQJ250X3S Mud Cleaner(8).jpg

Tigerrig TRQJ250X3S Mud Cleaner(16).jpg

Tigerrig TRQJ300X2S Mud Cleaner(1).jpg

Tigerrig TRQJ300X2S Mud Cleaner(2).jpg

Tigerrig TRQJ300X2S Mud Cleaner(6).jpg

Tigerrig TRQJ300X2S Mud Cleaner(7).jpg

Specifications

Model		TRQJ200X2S-100X8N	TRQJ250X2S-100X12N	TRQJ250X3S-100X20N	TRQJ300×2S-100×12N
Shale shaker	Capacity	16 l/sec	45 l/sec	45 l/sec	45 l/sec
	Grid working surface	1.4m2	3 m2	3 m2	3 m2
	Quantity of grids	2pieces	4pieces	4pieces	4pieces
	Type of grid	Flat Screen	Cassette	Cassette	Cassette
	Regulation of the inclination angle of the frame	From -3 up to +3 degrees	From -3 up to +3 degrees	From -3 up to +3 degrees	From -3 up to +3 degrees
	Quantity of motors	2pieces	2pieces	2pieces	2pieces
	Motor Specification	0.75kw, 1500 rpm, explosion protection	1.7kw, 1500 rpm, explosion protection	1.7kw, 1500 rpm, explosion protection	1.7kw, 1500 rpm, explosion protection
	Overflow height	450mm	850mm	850mm	850mm
	Dimensions mm	183512801200	290017701330	290017701330	290017701330
	Weight	750kg	1600kg	1600kg	1600kg
Desander	Cyclone Specs	200mm	250mm	250mm	300mm
	Cyclone Qty	2 pieces	2 pieces	3 pieces	2 pieces
	Size of separated particles	0.06mm	0.07mm	0.07mm	0.08mm
	Capacity	33 l/sec	66 l/sec	88 l/sec	69 l/sec
Desilter	Cyclone Specs	100mm	100mm	100mm	100mm
	Cyclone Qty	8 pieces	12 pieces	20 pieces	6×2 pieces
	Size of separated particles	0.04mm	0.04mm	0.04mm	0.04mm
	Capacity	33 l/sec	57 l/sec	83 l/sec	57 l/sec
Mud cleaner	Dimensions mm	183512301810	298518602210	298518602210	298518602210
Mud cleaner	Weight	980kg	2250kg	2400kg	2300kg
