Gamboss Corrosion Resistance High Pressure Fast Packing Compact Structure Drilling Fluid Manifold And Mud Valve assembly

Purposes and scope of application

Well drilling fluid manifold is an important device of petroleum (gas) well drilling circulation system, which guide the high-pressure slurry discharged from slurry pump to the well to clean well bottom, remove bone meal and help finish well drilling fluid circulation. It designed, manufactured, inspected and tested following API, ASME and other international and related petroleum chemical engineering professional standards. Made of high-quality alloy material, it owns merits of compact structure, convenience in assembling and un- assembling, fine interchangeability, fine sealing performance, fine erosion resistance, fine corruption resistance and fine pressure bearing performance.

The manifold has been subject to computer programing control pressure experiment, X-ray crack detection and other credible inspection measures. It can fully satisfy international petroleum industry demands with fine pressure bearing performance and fine security.

Structural characteristics

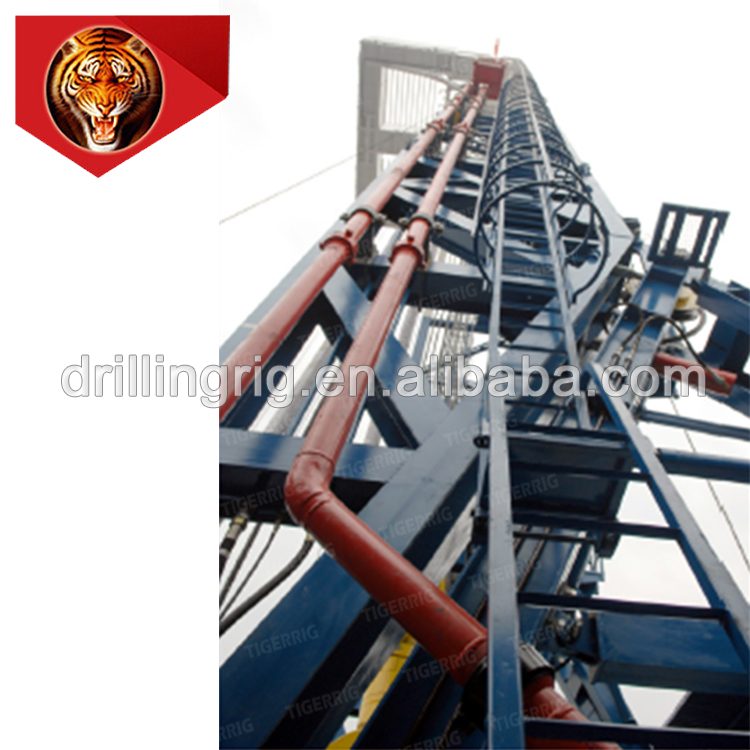

Well drilling fluid hose made up of rigid sealing slurry gate valve, high-pressure sphere union, high-pressure conical union, three-way valve, high-pressure hose, elbow, pressure gage and short connector, etc.

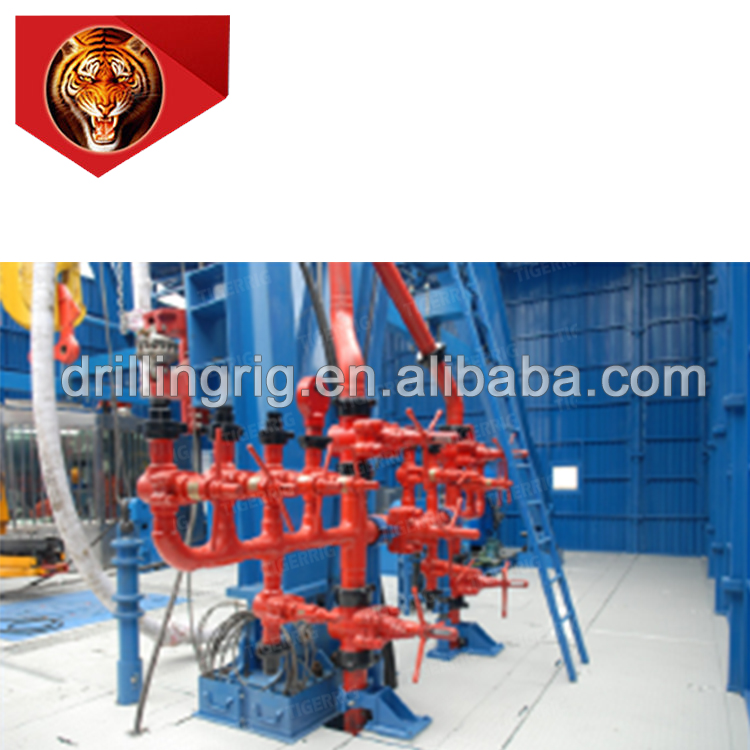

Ground valve group adopts swan-shaped 3-way structure with compact structure, small hydro-resistance and high-power efficiency.

Drilling valve group adopts reducing 4-way structure, where both single-stack pipe and double-stack pipe be sued directly. It is convenient to install in site.

High-pressure union is made of high-strength alloy steel subject to heat treatment. Its structure facilitates fast assembling and disassembling operation. It manufactured with special machines. Sealing fulfilled by means of spherical surface subject to smoothing, conical surface together with sealing ring.

Flashboard and valve base Rigid sealing slurry gate valve are both made of rigid alloy subject to jet welding. It owns fine abrasion resistance; erosion resistance and the like merits and valve service period is extended greatly. There are also other merits in it, for example, small operation torque and convenience in turning on and turning off.

Elbow, reducing pipe, 3-way or 4-way vale of the manifold is made of high-strength ally steel. Its tube well has properly thickened and it has been subject to fine heat treatment, satisfying demands on strength and erosion resistance.

Parts with strict precision demands processed with special processing techniques in order that manufacturing quality can be guaranteed; and static water pressure strength and sealing experiments have conducted on parts under high pressure and all the parts turn out conforming to SY/T5244 2006 standards.

Specifications
