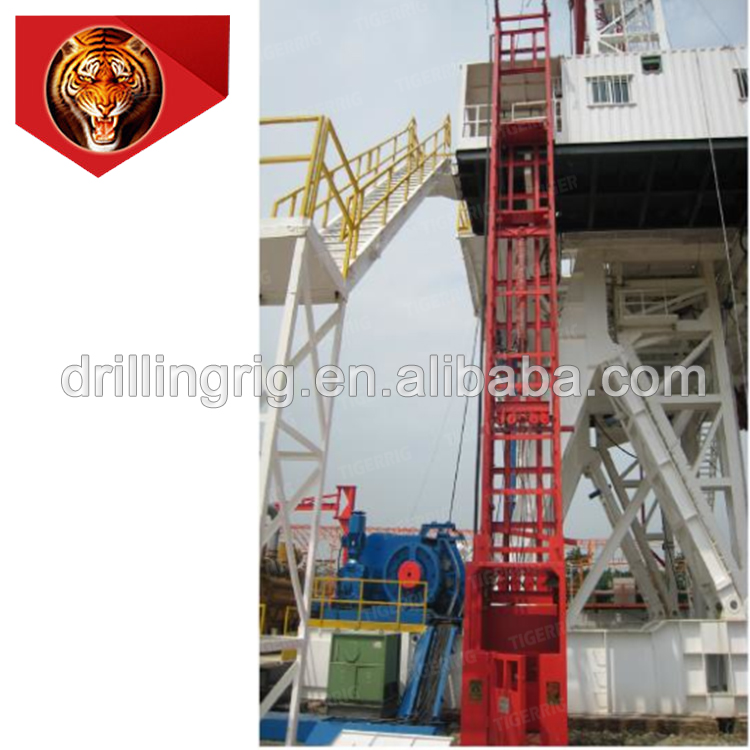

Gamboss High Quality API Standard Safely Hydraulic Elevator for Oil Well Drilling
Purposes and scope of application
Hydraulic elevator is a special equipment for lifting goods from surface to drilling floor. This product manufactured in the Company is with capable of flightiness structure, convenient reassemble, safe, reliable and high efficiency, especially with steeples speed regulation in lifting and falling movements. Therefore, it is safe and can greatly reduce work Intensity.
Safety: with double safely measurements of hydraulic self-locking and mechanically falling proof.
High carrying capacity rated loading is more than 1.5t.
Suitable power is optional with 440VAC, 60Hz.
Driving: by using hydraulic adjustable driving with smooth moving.
Specifications
Rated capacity
15KN
Hoisting height
9.5m
Hoisting speed
~0.4m/s
Hydraulic system
Rated flow rage
35.5/min
Rated pressure
20 Mpa
Electric control system
Motor power
11KW
Motor RPM
1460r/min
Input Voltage
~380V2
Control Voltage
~220V
