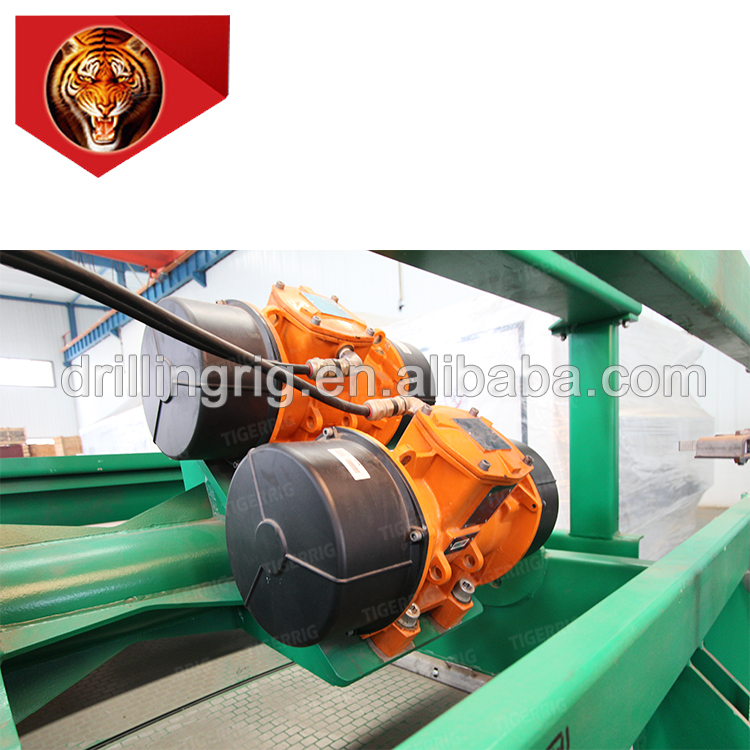

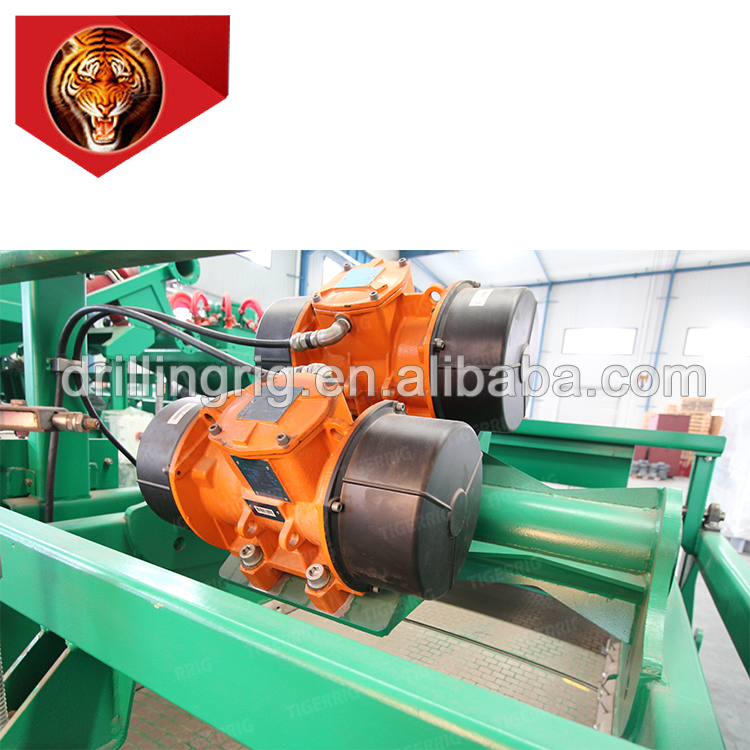

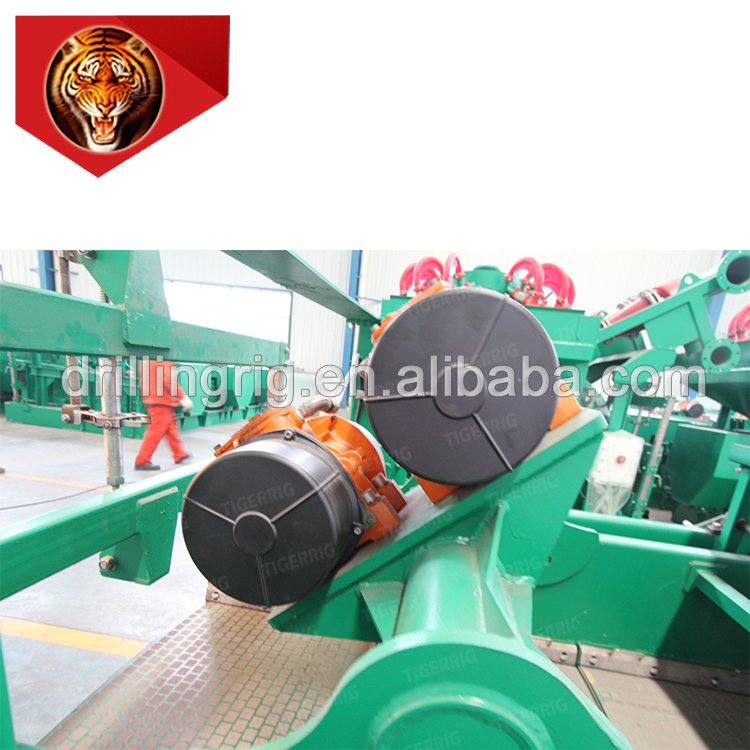

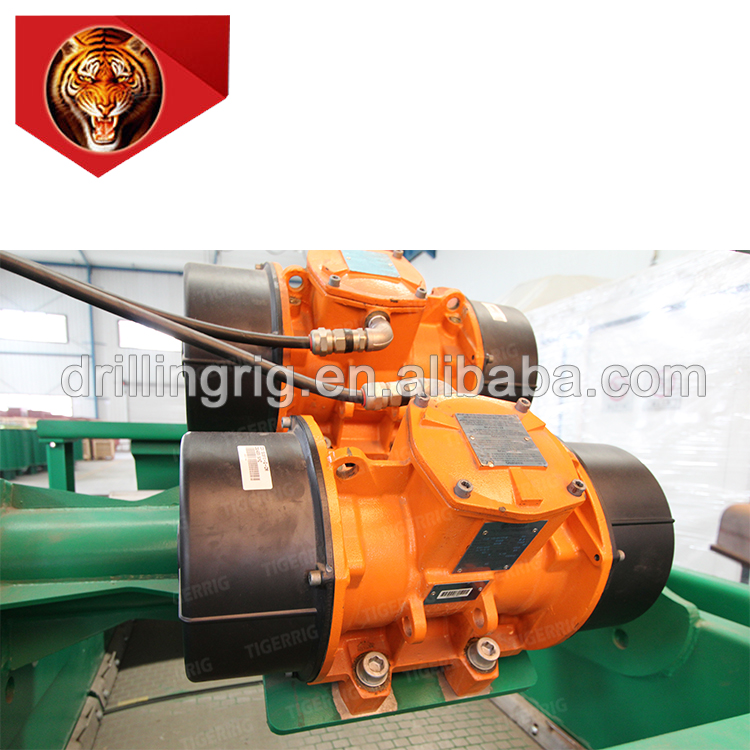

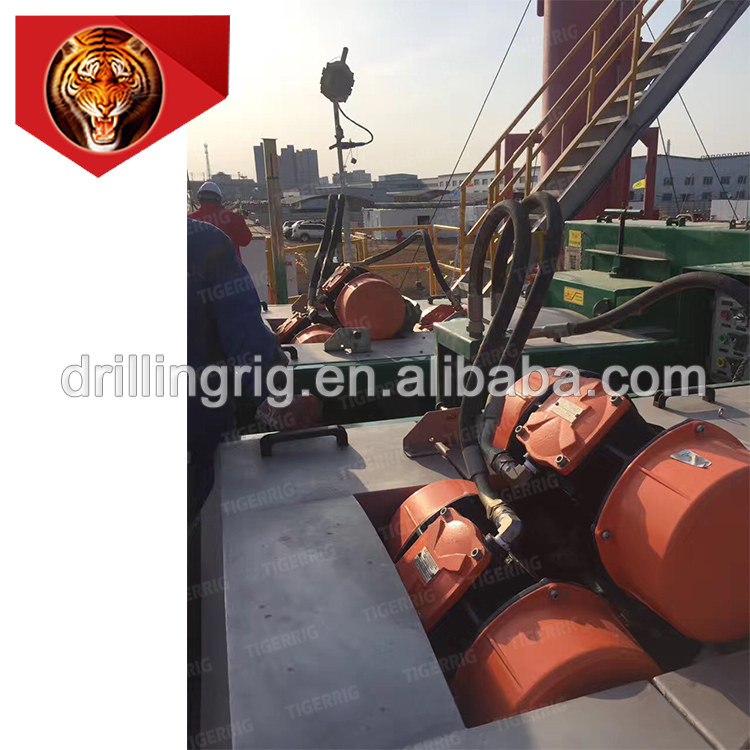

Gamboss 0.75/1.72/1.84kw Power Original Imported Oilfield Solid Control System Martin Motor for Shale Shaker

< >

Features
Specification

Gamboss 0.75/1.72/1.84kw Power Original Imported Oilfield Solid Control System Martin Motor for Shale Shaker

马丁电机 (5).JPG

马丁电机 (1).JPG

马丁电机 (2).JPG

马丁电机 (3).JPG

马丁电机 (4).JPG

马丁电机 (6).JPG

马丁电机 (7).JPG

Specifications

Model	Vibratory force	Rotating speed	Power	Weight	Voltage
CDX 3/300	304KG	3000	260	11.5	220/380VAC
CDX 3/500	503KG	3000	450	17.0	220/380VAC
CDX 3/800	785KG	3000	650	23.3	220/380VAC
CDX 3/1100	1105KG	3000	600	34.0	380VAC
CDX 3/1500	1625KG	3000	1000	56.1	380VAC
CDX 3/2100	2114KG	3000	1000	62.0	380VAC
CDX 3/2300	2236KG	3000	2000	82.5	380VAC
CDX 3/3200	3457KG	3000	3100	108	380VAC
CDX 3/4700	4710KG	3000	4500	144	380VAC
