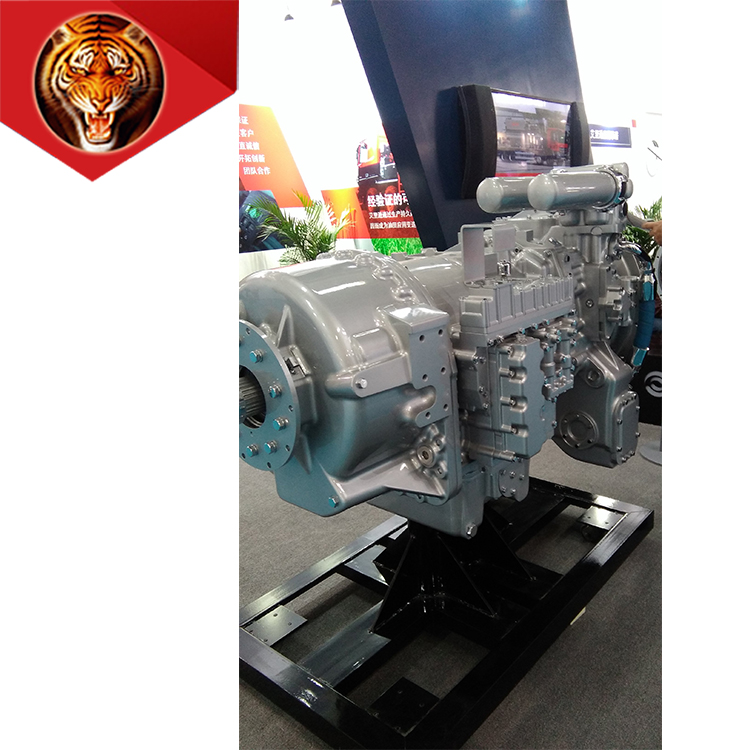

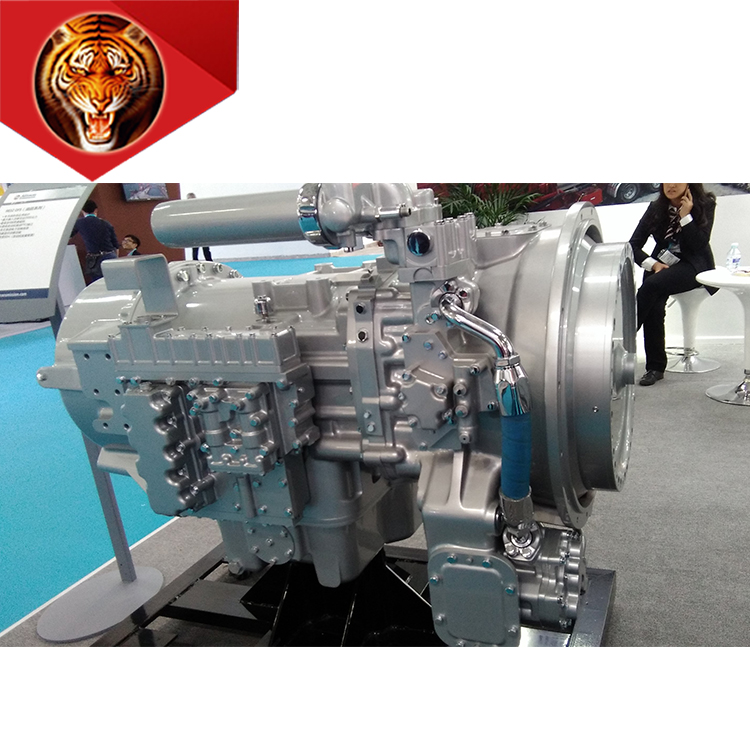

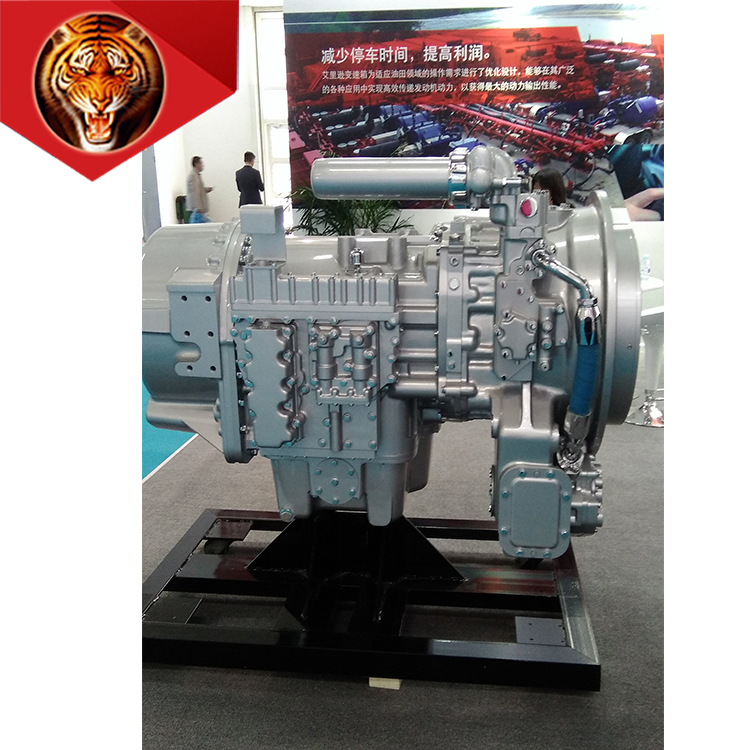

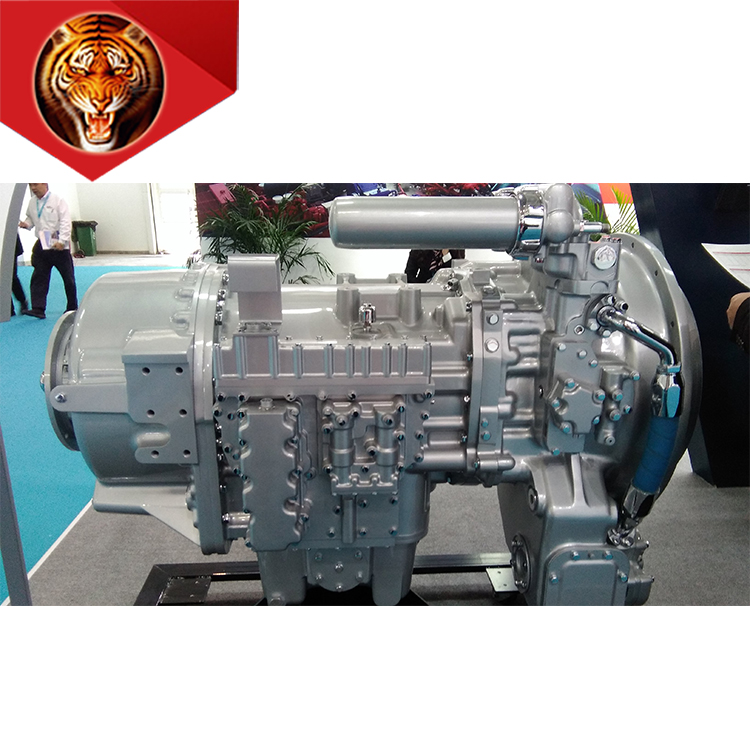

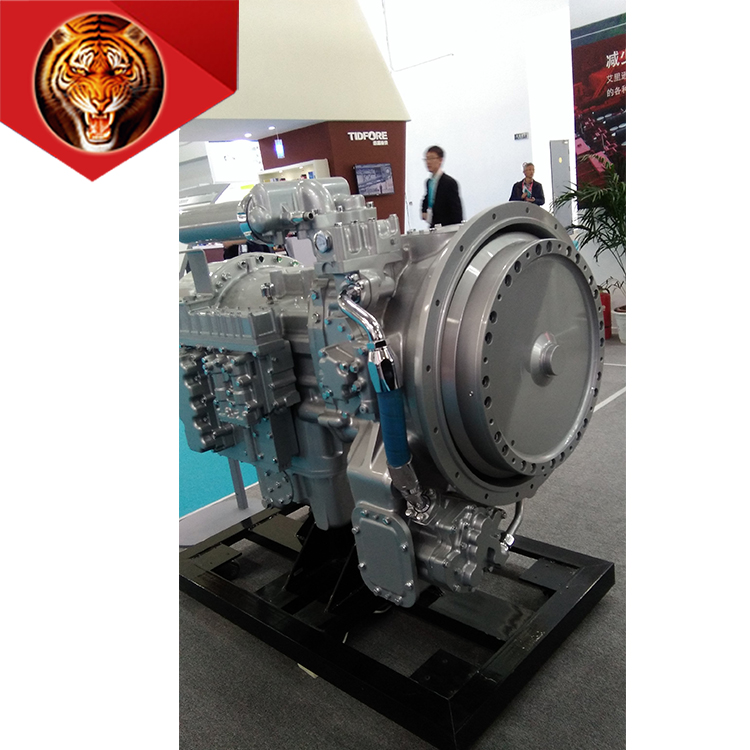

Allison 4700OFS 447KW/600HP For F800 Mud Pump Transmission Gear Box

< >

Features
Specification

Allison 4700OFS 447KW/600HP For F800 Mud Pump Transmission Gear Box

Company Information：

Allison Transmissions is the world's largest manufacturer of commercial automatic transmissions and hybrid systems. Our products are widely used in buses, garbage trucks, emergency rescue vehicles, construction vehicles, distribution vehicles and other fields for more than 300 leading global vehicle manufacturers.

Allison company was founded in 1915, headquartered in Indianapolis, Indiana, USA. Allison Transmissions has nearly 1,400 independent distributors and agents worldwide. It has about 2,600 employees worldwide. Allison transmission products are exported to more than 100 countries and regions.

Allison transmission (4).jpg

Allison transmission (1).jpg

Allison transmission (2).jpg

Allison transmission (3).jpg

Allison transmission (5).jpg

Allison transmission (6).jpg

Allison transmission (7).jpg

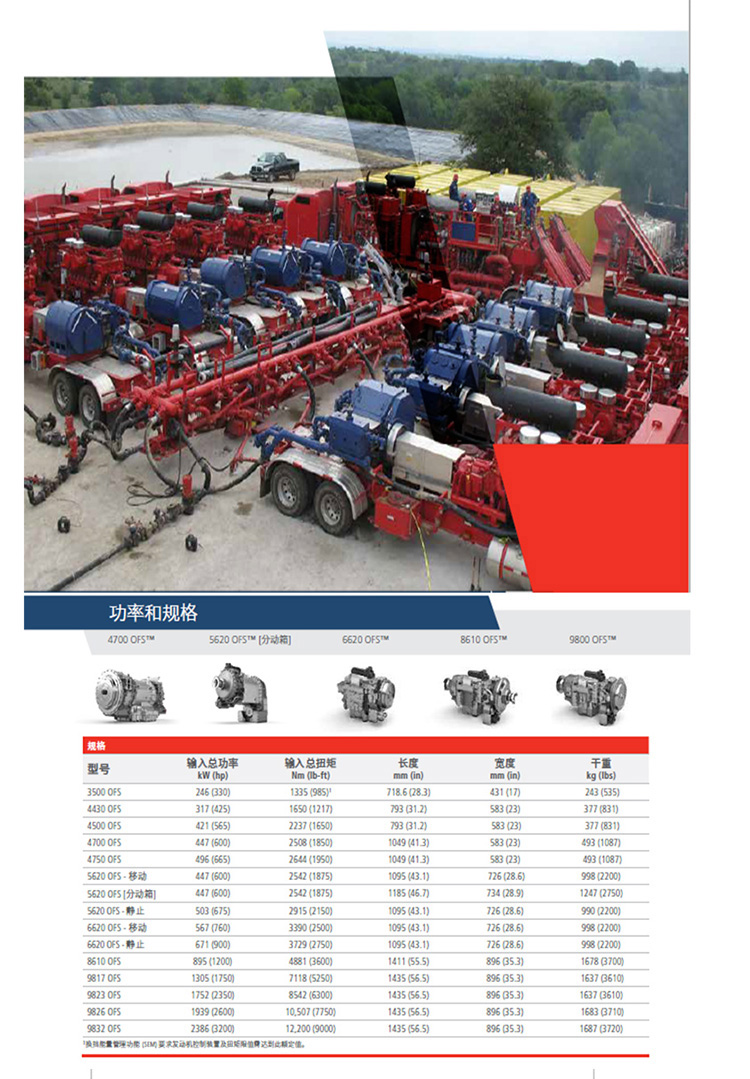

Specifications

Model	Input Torque Gross	Input Power Gross	Turbine Torque Net	GVW kg (lbs)	GCW kg (lbs)
4700	General, Construction	2400 (1770)	421 (565)	3525 (2600)	n/a
	Airport Rescue and Fire-Fighting Vehicle	2508 (1850)	447 (600)	3795 (2800)	n/a
	Heavy Equipment Transport	2508 (1850)	447 (600)	3525 (2600)	n/a
	Refuse Vehicles	2102 (1550)	373 (500)	3322 (2450)	n/a
4700 OFS	Oil Field Series	2508 (1850)	447 (600)	3525 (2600)	n/a
4700 SP	Specialty / Military	2508 (1850)	447 (600)	4067 (3000)	n/a
