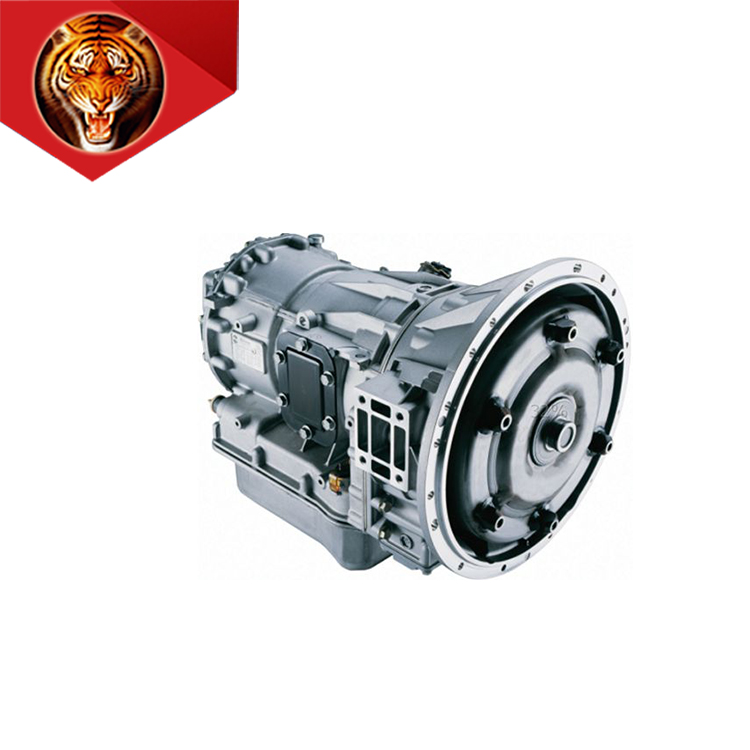

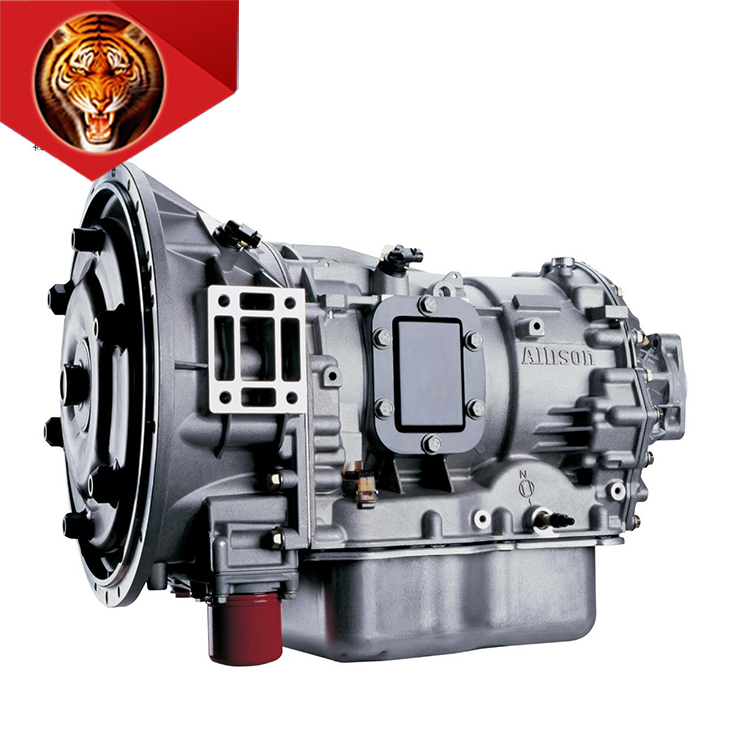

Allison 5600OFS 560KW/660HP For F1000 Mud Pump Transmission Gear Box

< >

Features
Specification

Allison 5600OFS 560KW/660HP For F1000 Mud Pump Transmission Gear Box

Company Information:

Allison Transmissions is the world's largest manufacturer of commercial automatic transmissions and hybrid systems. Our products are widely used in buses, garbage trucks, emergency rescue vehicles, construction vehicles, distribution vehicles and other fields for more than 300 leading global vehicle manufacturers.

Allison company was founded in 1915, headquartered in Indianapolis, Indiana, USA. Allison Transmissions has nearly 1,400 independent distributors and agents worldwide. It has about 2,600 employees worldwide. Allison transmission products are exported to more than 100 countries and regions.

Allison gear box 5600 (2).jpg

Allison gear box 5600 (1).jpg

Allison gear box 5600 (5).jpg





Specifications

Straight-Thru Model		Gross Input Torque N?m (lb-ft)	Gross Input Torque N?m (lb-ft)	Gross Input Torque N?m (lb-ft)
H5620	Rear Dump Truck, Coal Hauler, Articulated Dump, Hauling Applications	2542 (1875)	447 (600)	4711 (3475)
M5620	General, Oil Field, Crane Carrier Agricultural Tractor	2542 (1875)	447 (600)	4711 (3475)
	Crash Truck (ARFF Vehicle) General	2237 (1650)	373 (500)	4230 (3120)
	Oil Field Equipment Agricultural Tractor	3390 (2500)	559 (750)	5139 (3790)
S5620	Manual Shift (Non-Oil Field)	2542 (1875)	447 (600)	4711 (3475)
	Rear Dump Truck, Coal Hauler, Articulated Dump, Hauling Applications	2915 (2150)	503 (675)	4711 (3475)
	General, Oil Field, Crane Carrier Agricultural Tractor	2237 (1650)	373 (500)	4230 (3120)
	Crash Truck (ARFF Vehicle) General	2542 (1875)	447 (600)	4711 (3475)
Dropbox Model		Gross Input Torque N?m (lb-ft)	Gross Input Power kW (hp)	Turbine Torque Net N?m (lb-ft)
H5620	ear Dump Truck, Coal Hauler, Articulated Dump, Hauling Applications	2542 (1875)	447 (600)	4711 (3475)
M5620	General, Oil Field, Crane Carrier Crash Truck (ARFF Vehicle) General	2542 (1875)	447 (600)	4711 (3475)
M5620	Oil Field Equipment	2542 (1875)	447 (600)	4711 (3475)
S5620	ear Dump Truck, Coal Hauler, Articulated Dump, Hauling Applications	2542 (1875)	447 (600)	4711 (3475)
S5620	General, Oil Field, Crane Carrier Crash Truck (ARFF Vehicle) General	2542 (1875)	447 (600)	4711 (3475)
