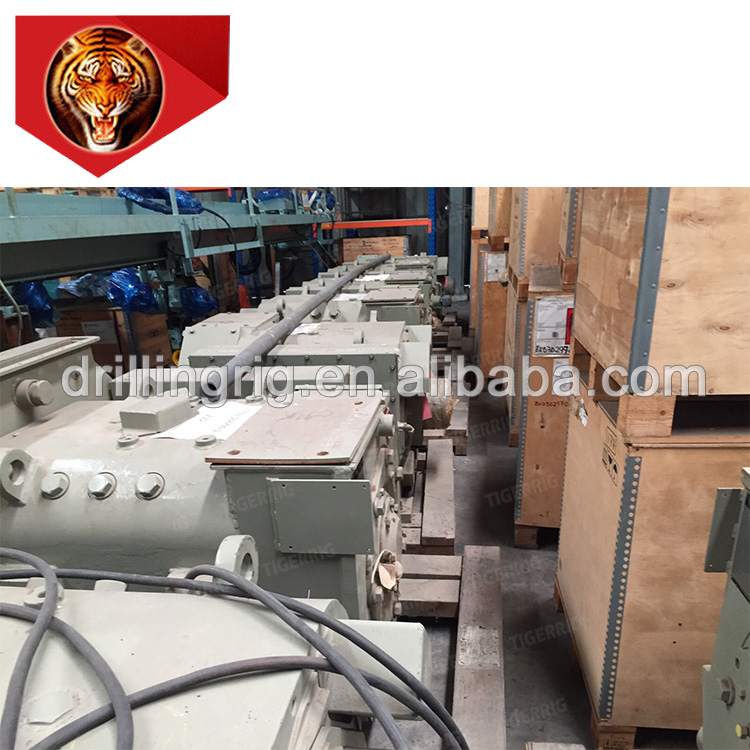

High quality exquisite workmanship GE725RB DC drill motor for mud pump
Features
1.Self excited series field
2.Class H insulation.
3.Single shaft extension with hub.
4.Pressurized connection box mounted on left "A" side of motor as viewed from 5.commutator end. with double bolt-on armature cable connections and terminations for space heater. auxiliary switch. and pressure sensor. Connection box con be specified on right "B" side (must be specified an order!
6.Two RTD's, 100-ohm platinum. embedded in 2 commutating coils.
7.Space heater. 240 volts. 185 watts. explosion --proof
8.Auxiliary lockout switch, explosion-proof
9.Pressure sensor explosion-proof
10.Blower assembly - 10 hp. 460volt, 60hz. 40°C motor
providing a minimum of 2800 scfm of ventilation
11.Marine features including ABS cert 巾 ed shaft and armored coble.
12.Approximate weigh:t7200lb..3265 kg
Specifications
Model
GE752RB
Ambient air
40℃
Armature volts DC
750
Armature AMPS DC
1185
Type Winding
SHUNT
Max,RPM
1070
Shaft Hp
1130
Torque, LB.FT
5705
Field Amps
60
Temp. rise(max)
155℃
Insulation class
H
