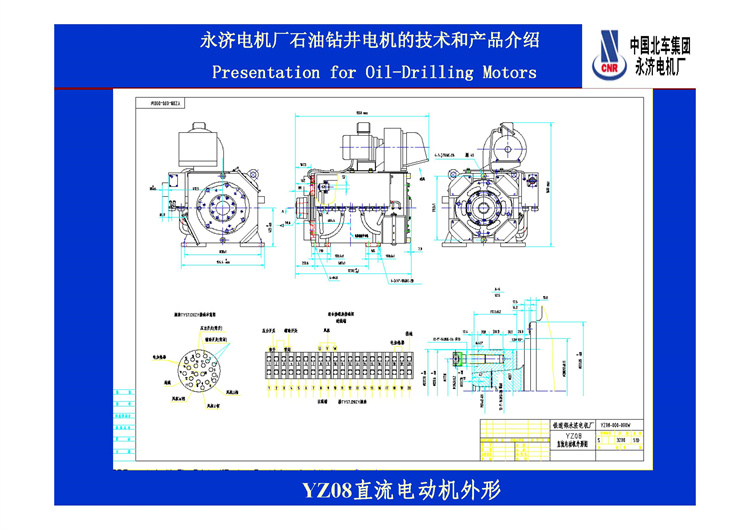

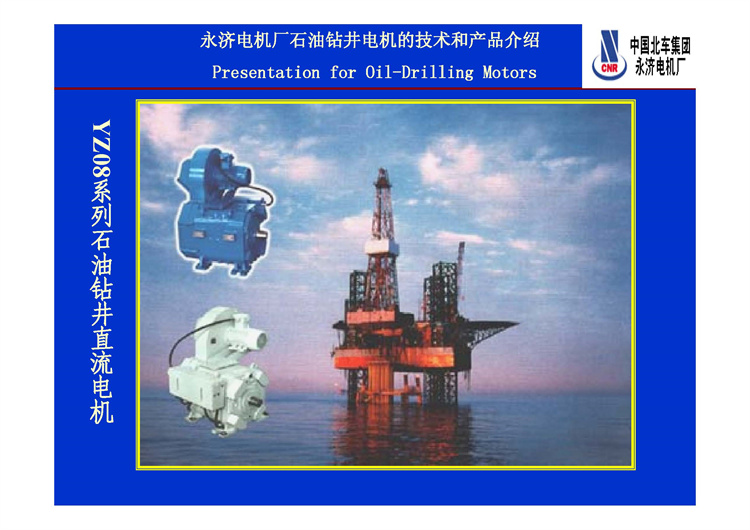

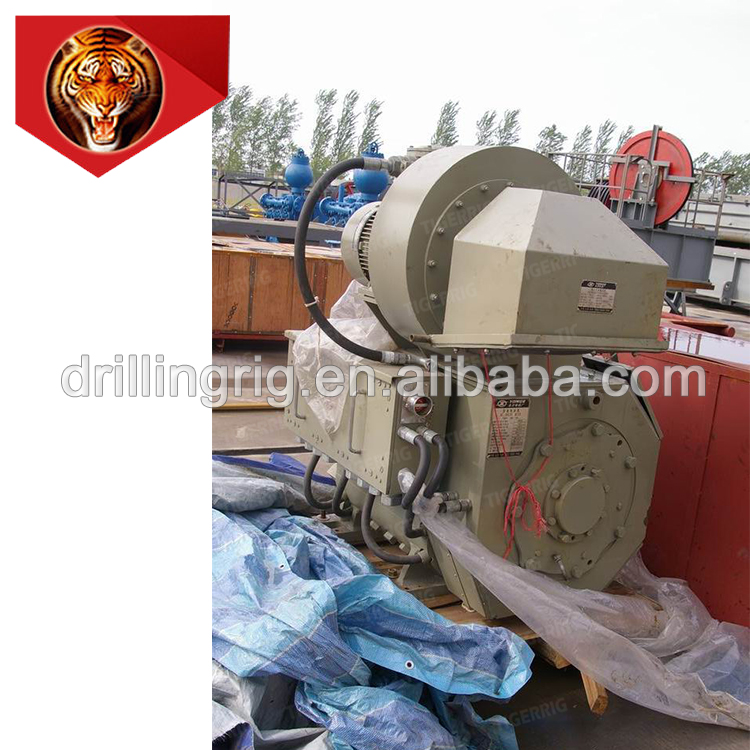

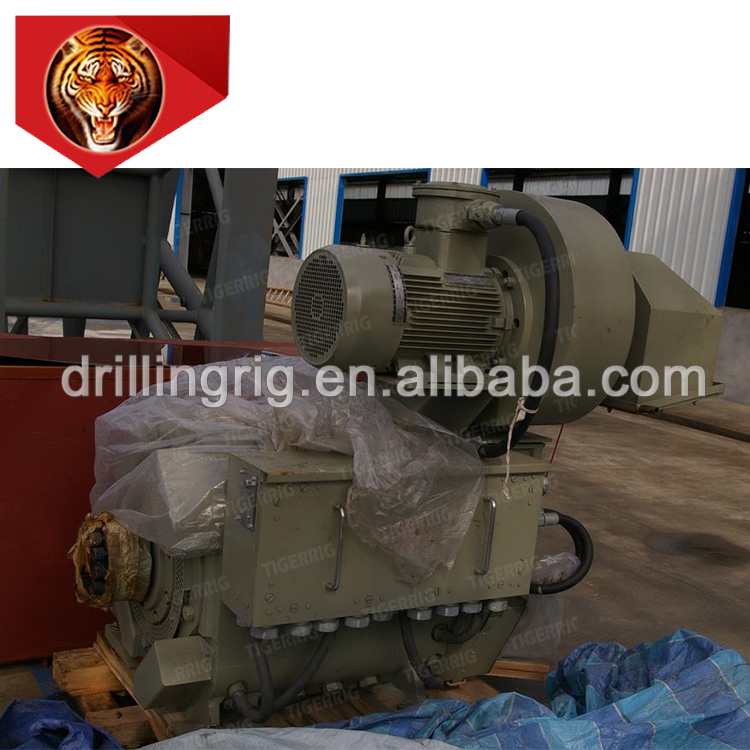

GE copy Yongji 800HP YZ08A/B DC drill motor for mud pump
Product introduction:
Dc motor is a rotating device that converts dc electric energy into mechanical energy. The motor stator provides the magnetic field, the DC supply provides the current to the windings of the rotor, and the commutator keeps the rotor current in the same direction as the torque generated by the magnetic field. Main features: good speed regulation performance, large starting torque.

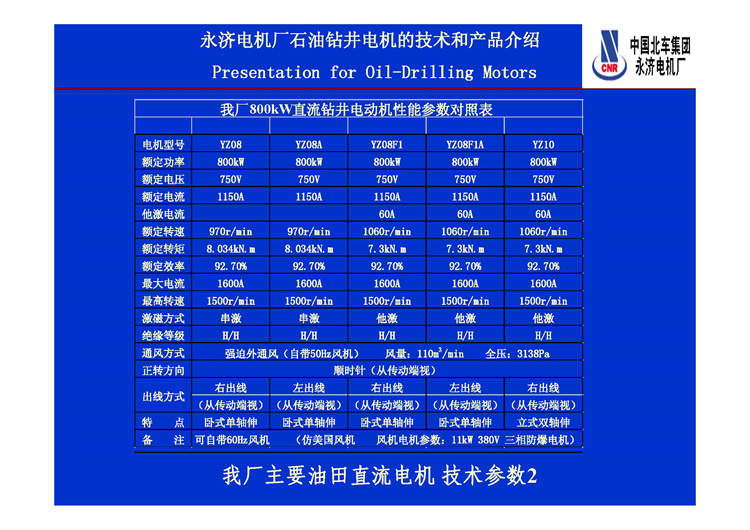

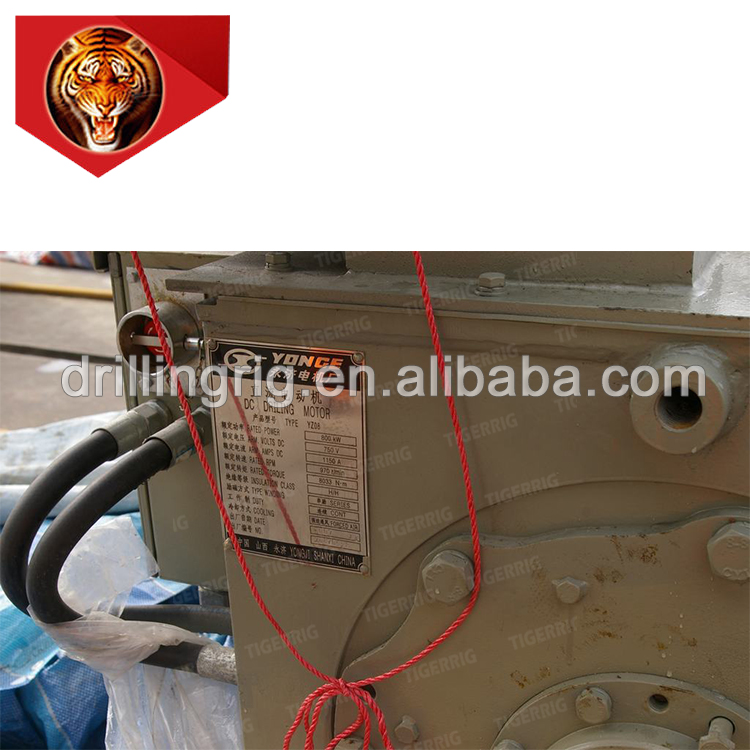

Specifications
Type
YZ08
Rated power
800KW
ARM VOLTS DC
750V
ARM AMPS DC
1150A
Rated Speed rpm
970 r/min
Rated torque
8033 N·m
Insulation class
H/H
Cooling
Forced Air
Weight
205Kg
