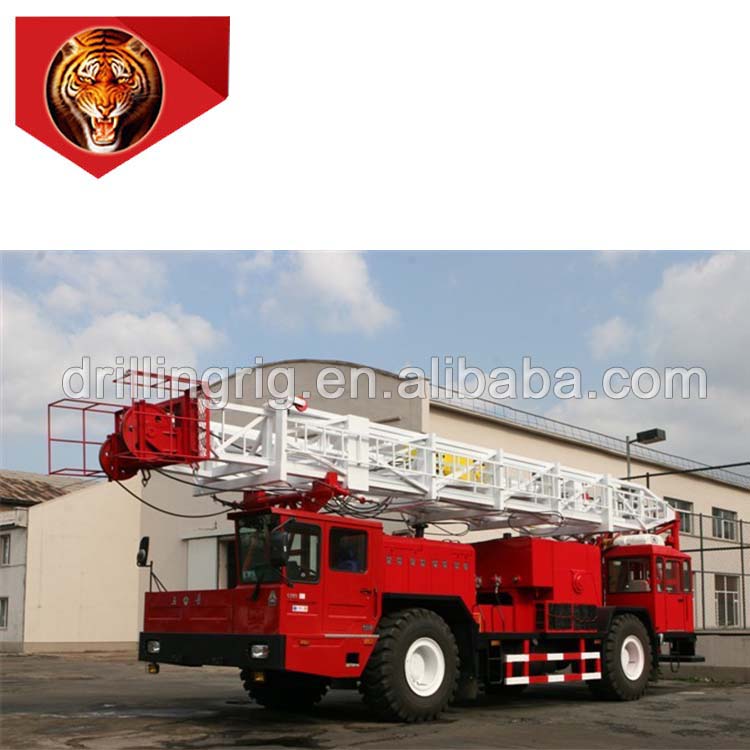

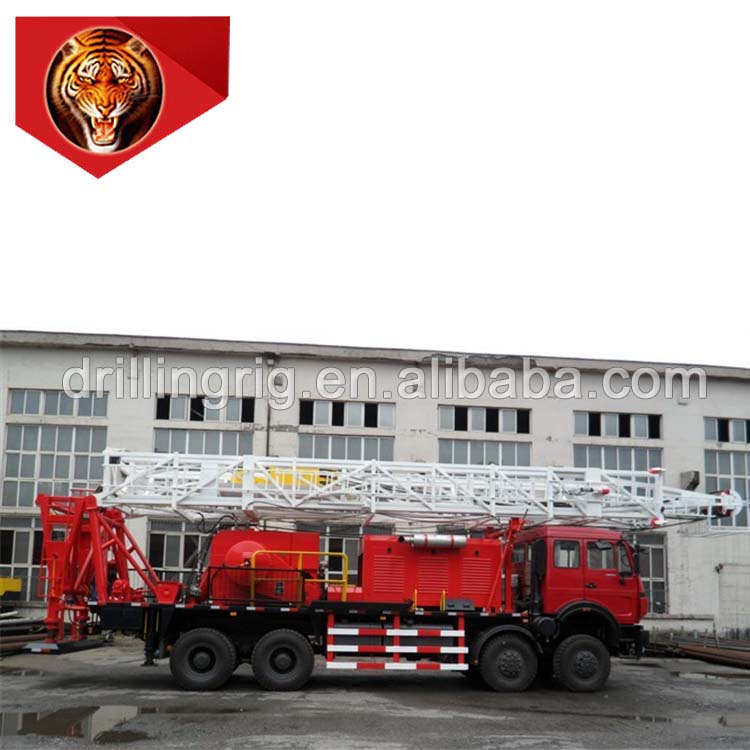

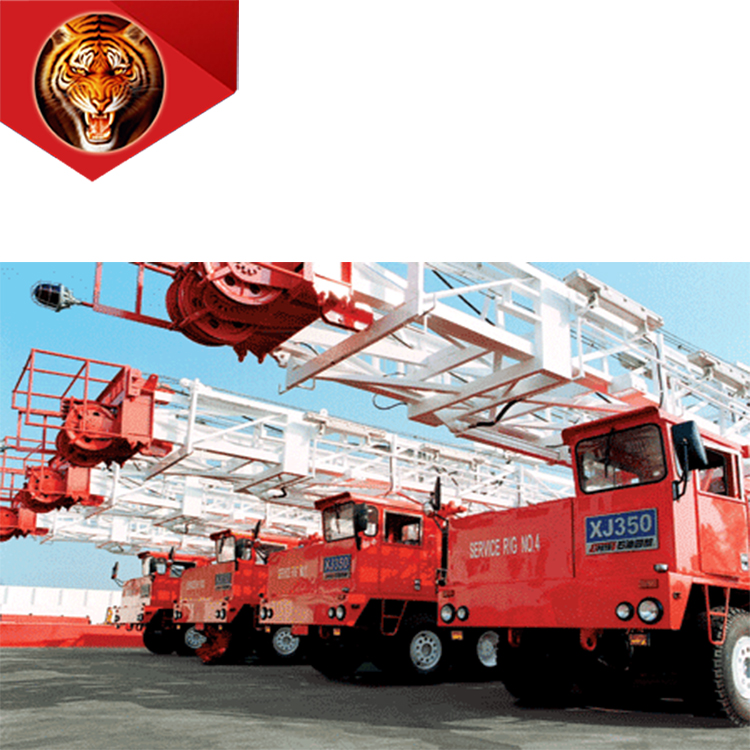

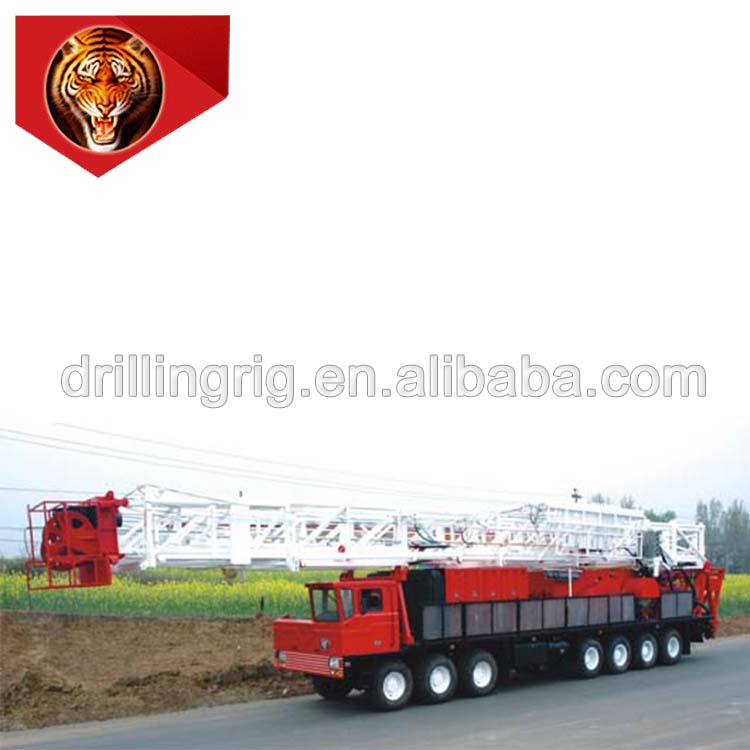

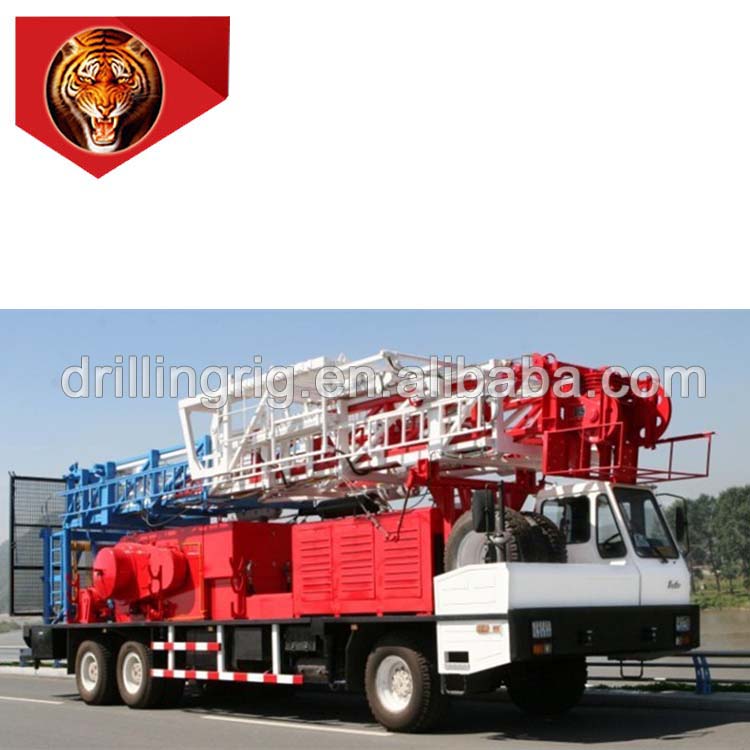

XJ350 Workover Drilling Rig
Product information
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ350（XJ20）
Nominal service depth(ft)（27/8″EUE tubing）
5200
Nominal workover depth (ft)（27/8″DP）
3280
Max. hook load (lbf)
80000
Rated hook load (lbf)
45000
Engine model
X6130
Engine power (hp)
233
Transmission type
Hydraulic + mechanical
Traveling system
4×3
Effective height of mast (ft)
50
Drilling line diameter (in)
7/8
Hook speed (ft/s)
0.66～5.7
Approaching/departure angle
18°/14°
Min. ground clearance (in)
14
Max. gradient ability
30%
Min. turning diameter (ft)
92
Rotary table model
ZP35
Traveling block model
YG20
Swivel model
SL35
