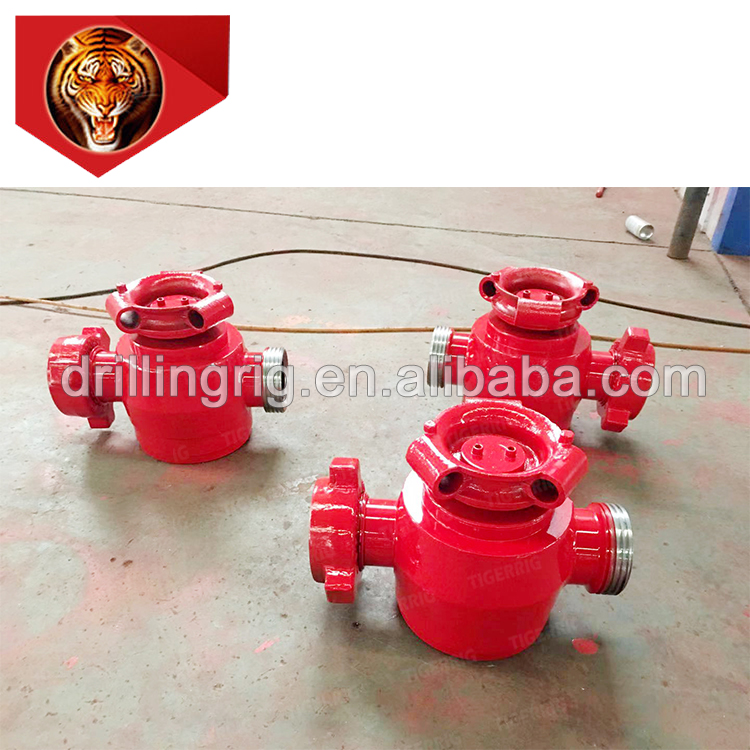

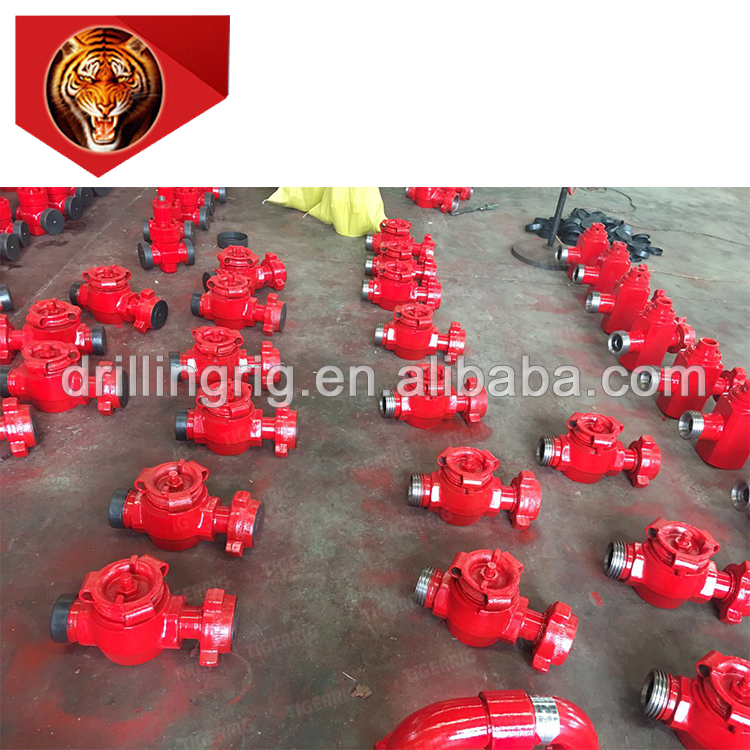

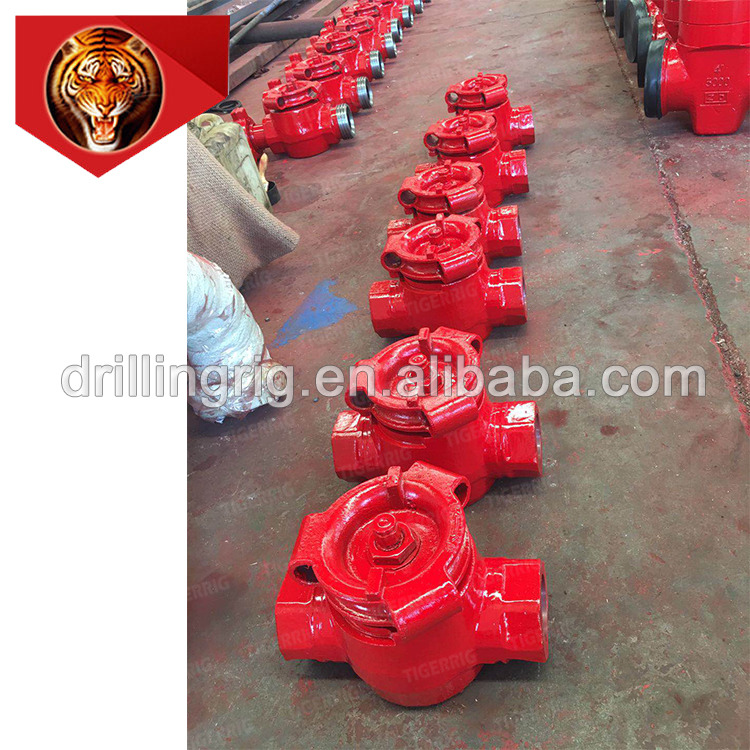

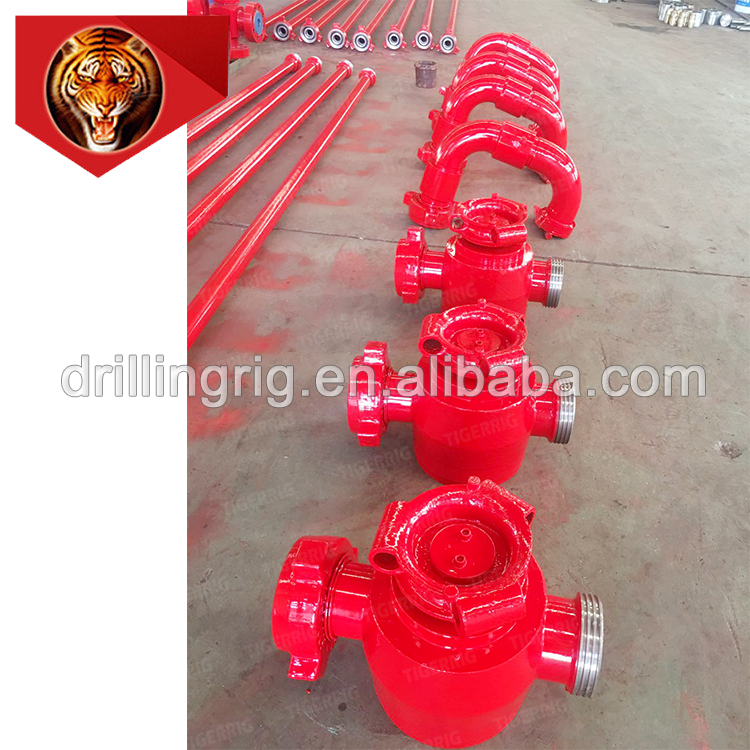

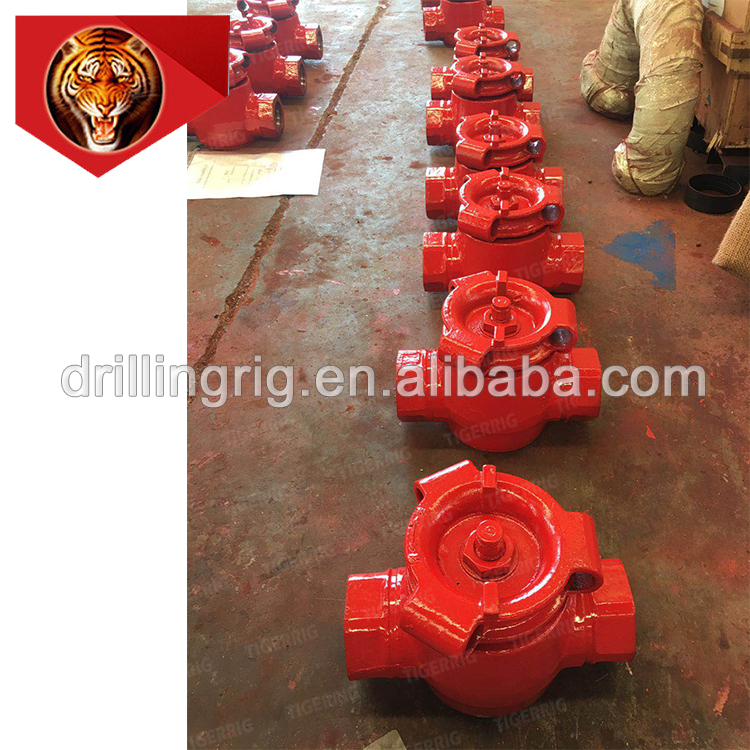

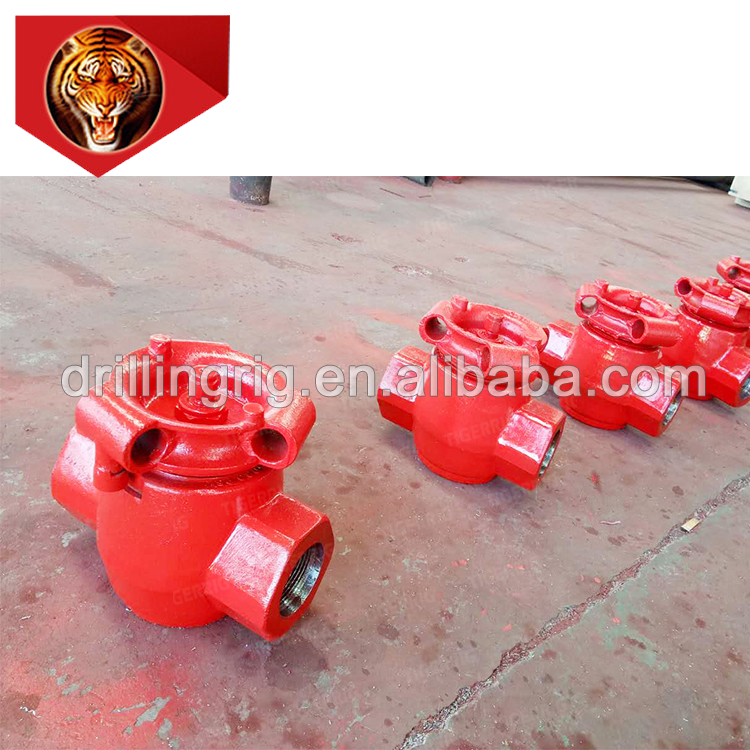

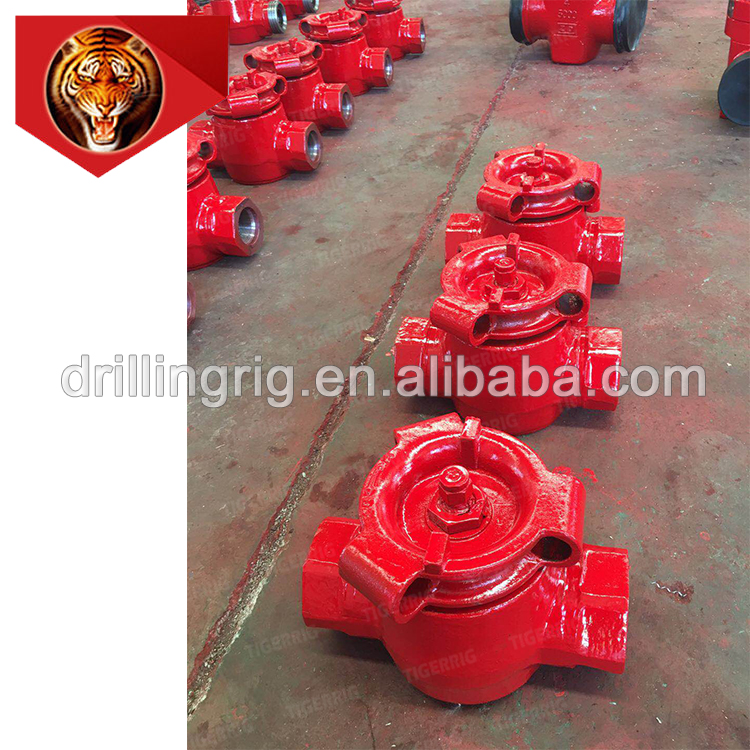

Tigerrig good quality and performance API 6A 15000psi Plug Valve for Well Drilling
Production Description：
The plug valve is an indispensable and important component for connecting high-pressure manifolds during cementing and fracturing operations in oil fields, and is also suitable for similar high-pressure liquid control. The product has compact structure, easy maintenance, low torque, quick opening, and labor-saving operation. It is currently the most ideal valve in cementing and fracturing manifolds.
The plug valve is mainly composed of valve body, hand wheel, plunger and other parts.
The inlet and outlet of the plug valve are connected in the form of a 1502 union (also can be customized according to customer requirements), the valve body and the bushing are matched with a cylinder, and the outer circle of the bushing is inserted into the seal to seal.
There is a cylindrical metal matching seal between the lining and the plunger, which is characterized by high matching accuracy and reliable sealing. Note: Under the high pressure of 15000psi, the valve can be opened or closed relatively easily.
Specifications
Work pressure
5000-15000psi
Operating temperature
PU（-29-121℃）
Product specification level
PSL1-4
Product performance level
PR1-2
Material grade
EE-FF
Nominal size
2in-4in
