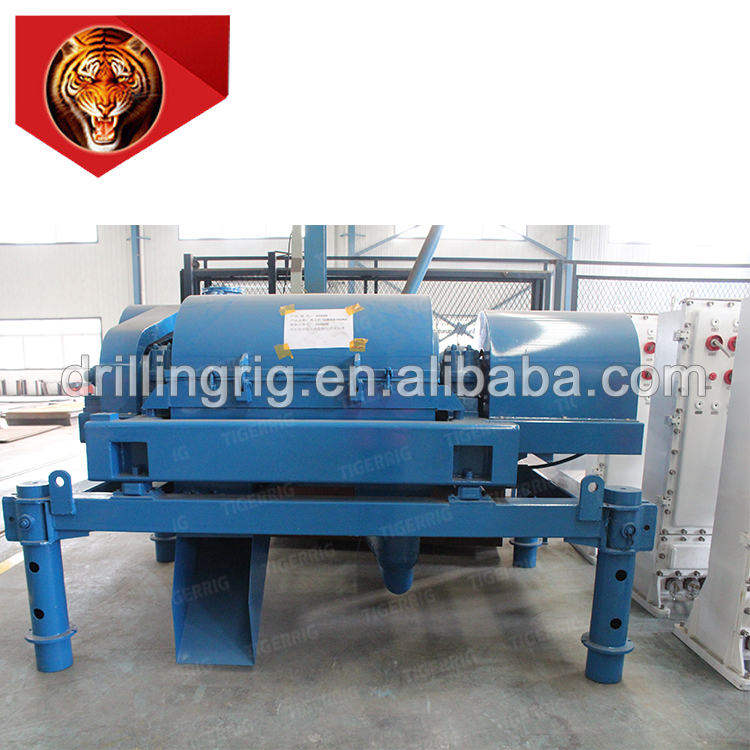

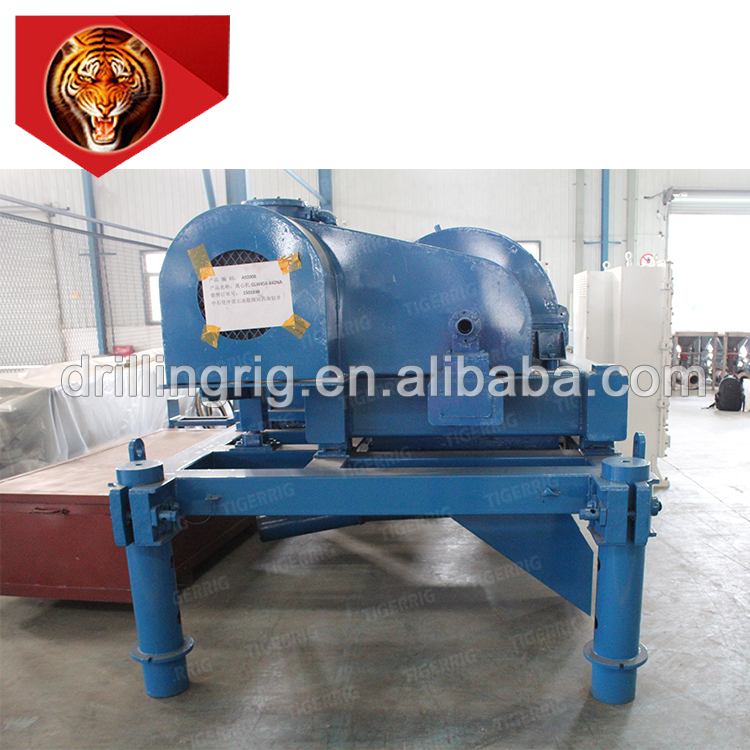

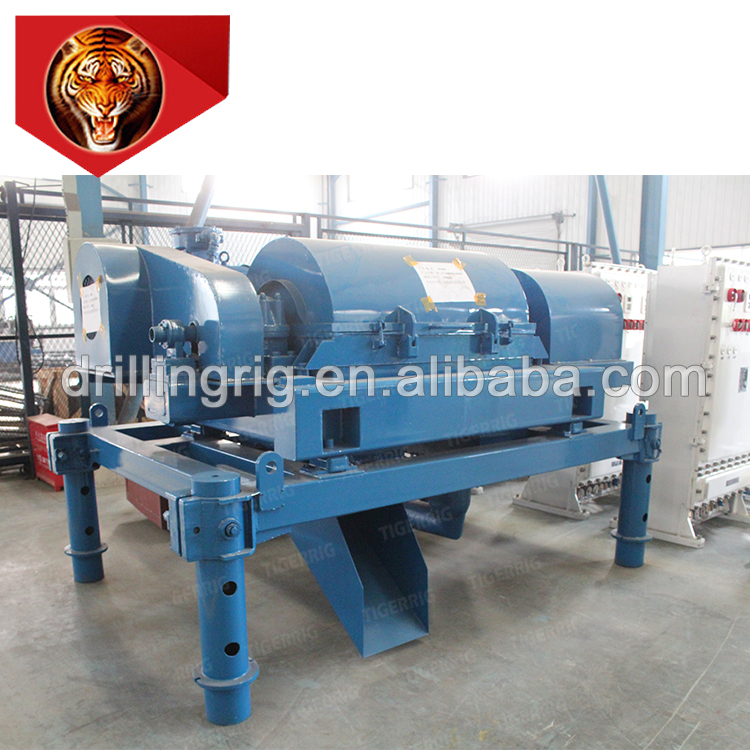

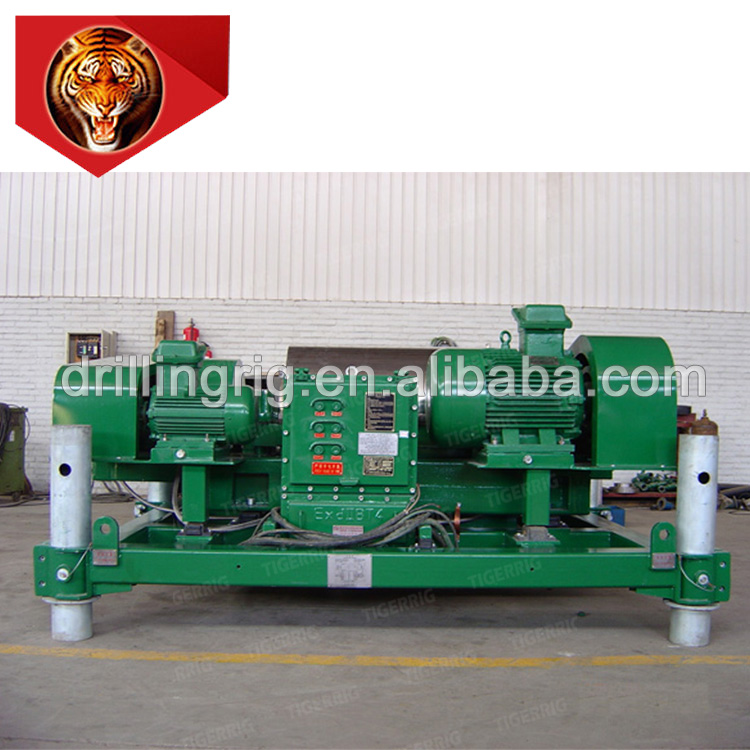

Gamboss Lw520×1320 Easily Adjustable Horizontal Oilfield Horizontal Decanter Centrifuge of Solid Control System
Main Characteristics：
1. Variable speed
2. Suitable for grids of 50Hz and 60Hz
3. The gyrator has the resistance to wearing and erosion, and the bowel cover, reset assembly; main transmission cover and auxiliary transmission cover are all made of stainless steel.
4. Double overload protection
5. Easily adjustable liquid discharge weir height

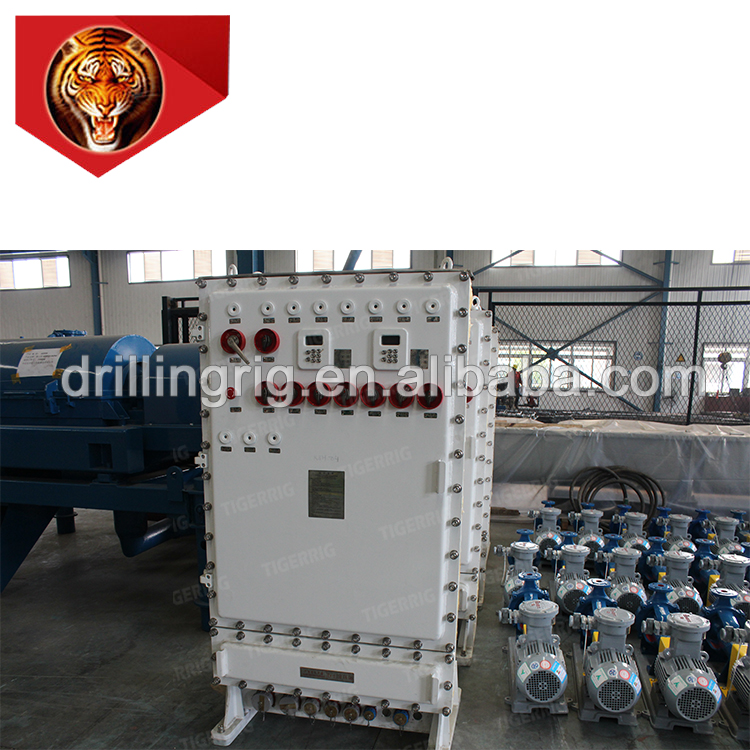

6. Pressurized EX Proof VFD control cabinet with PLC controlled.
7. SKF bearing
Specifications
Technical Parameters
Unit
Rated freq.
LW520×1320-N
Variable freq. LW520×1320BP-N/ Variable freq. LW520×1924BP-N
N1
N2
N3
Inner Diameter of Bowel
mm
520
Active Length of Bowel
1300/1924
Max. Rotation Speed of Bowel
r/min
2800
≤3000
Active Rotation Speed of Bowel
2300
2500
2700
1200～2800
Differential Speed of Conveyor
1537
1817
2119
≤2279
Rotation Direction of the Bowel and the Pulley of the Gear Box
15~25
10～30（adjustable）
Characteristics of Conveyor Flight
To be clockwise when observed from the small end of bowel.
Max. Throughput
(special gravity<1.1g/cm3)
Double-ended, Left-rotated
m3/h
50～60
55～65
60～70（adjustable）

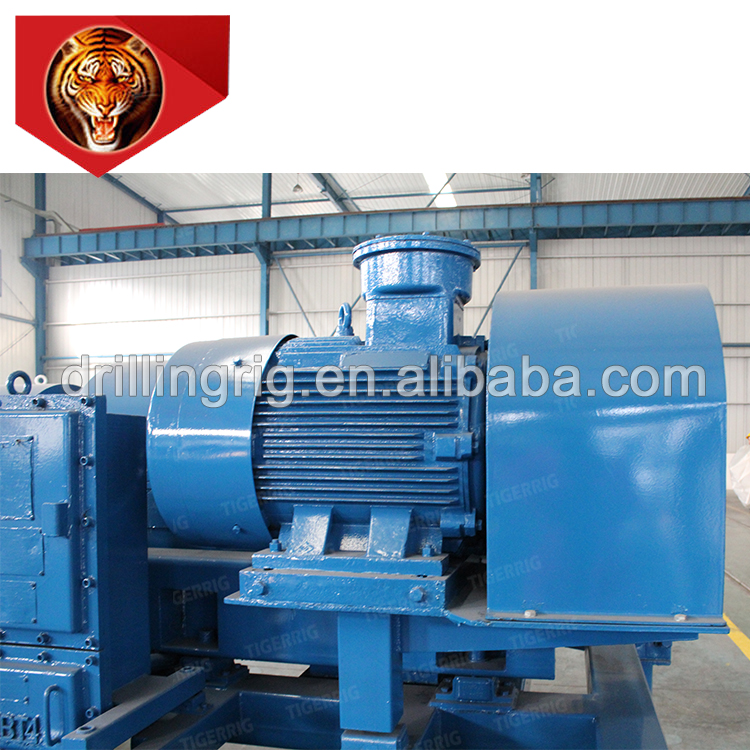

Main Motor
Model
YB250M-4
YB250M-4/YB280S-4
Rated Power
KW
55
55/75
Rated Speed
1480
Back Motor
YB160L-6
YB160L-6/YB180L-6
11
11/15
970
Model of Feed Pump
Centrifugal Pump LSB23J, SB23J or Screw Pump
Overall Dimension(L×W×H)
3300/3800×1708×1760（YB200M-4）
3300/3800×1708×1820（YB225S-4）
Overall Weight
(including feed pump)
Kg
4000/5200
4600/5800
（including control cabinet）
