Gamboss Advanced Design Long Service Life Solid Control System Mud Cleaner For Oil Well Drilling Rig

< >

Features
Specification

Gamboss Advanced Design Long Service Life Solid Control System Mud Cleaner For Oil Well Drilling Rig

Main Characteristics:

1. Desander & Desalter & Shale Shaker 3 in one-unit mud cleaner for compact footprint.

2. Polyurethane Material hydro cyclone for long life

3. Removable hydro cyclone assembly from mud cleaner skid for adjust to be a shale shaker.

4. Patent tighten rubber sealing for mud cleaner shaker deck and screen for fine screen

5. Shaker bottom deck made from Stainless Steel for long service life.

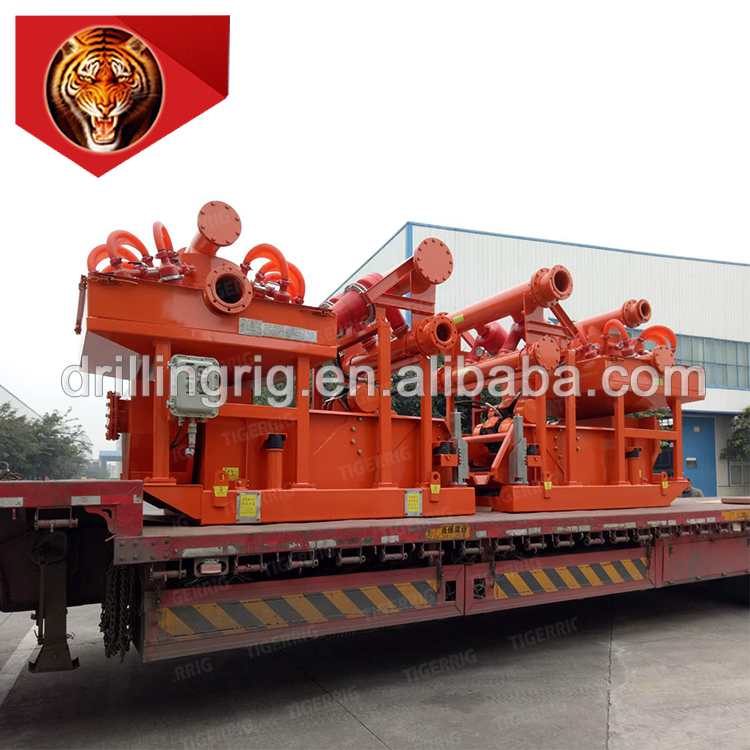

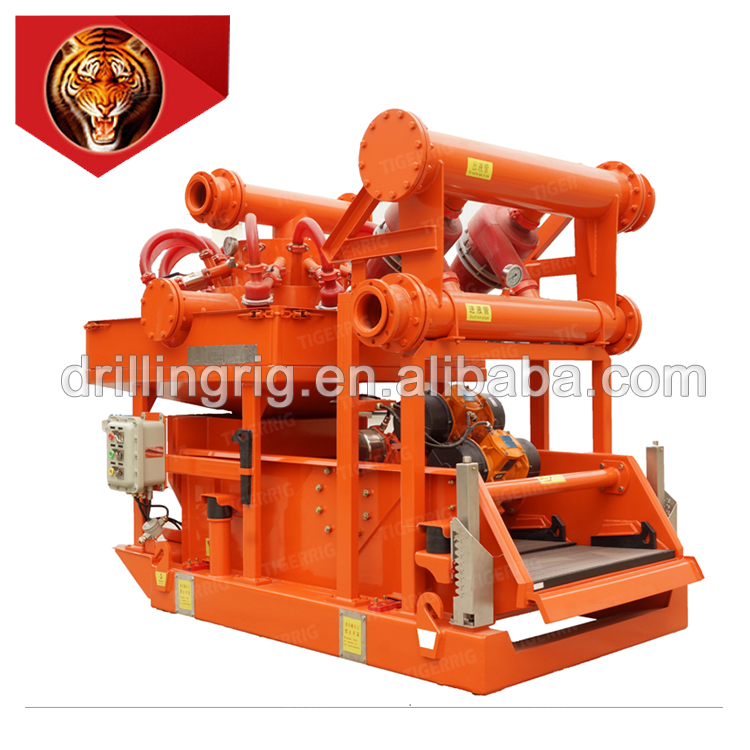

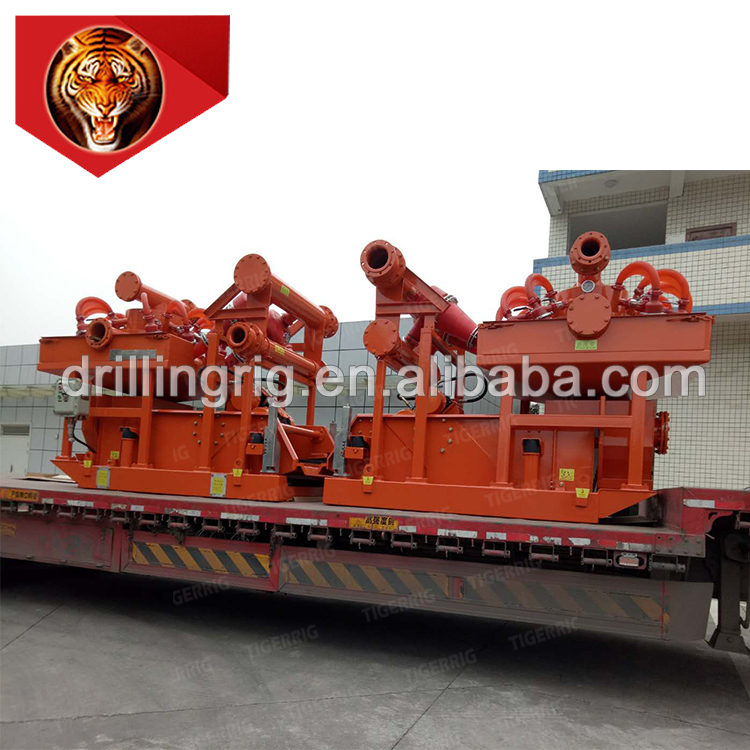

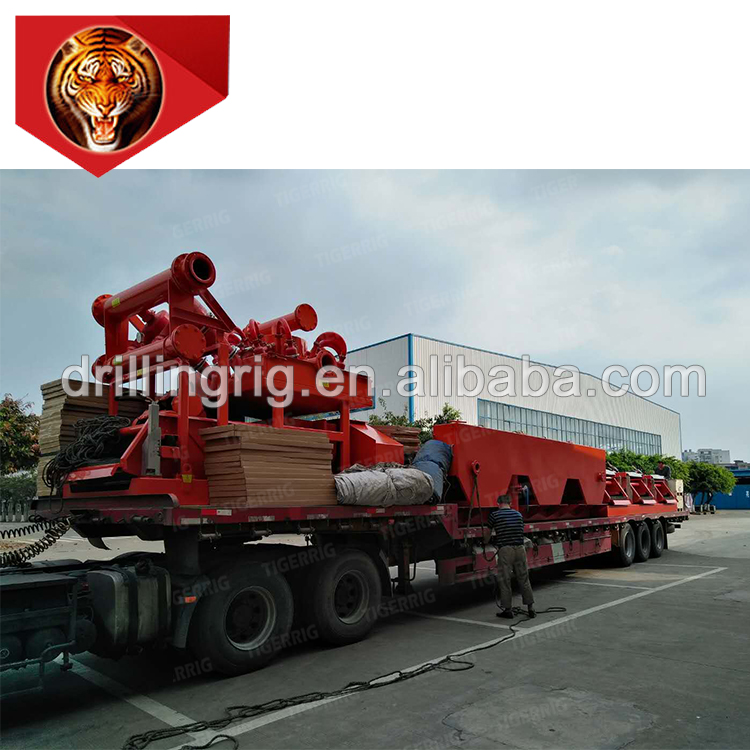

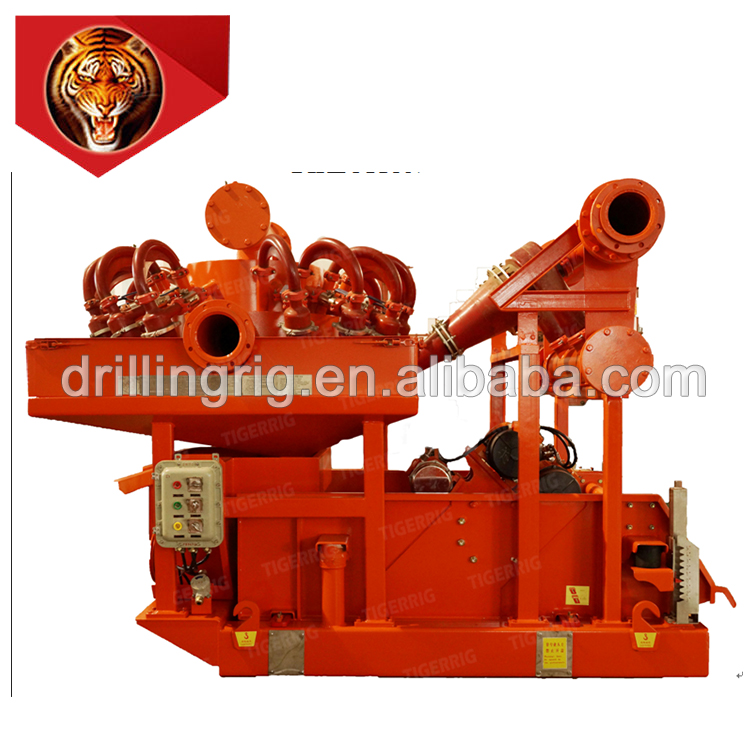

Tigerrig Mud Cleaner (5).jpg

Tigerrig Mud Cleaner (1).jpg

Tigerrig Mud Cleaner (2).JPG

Tigerrig Mud Cleaner (3).jpg

Tigerrig Mud Cleaner (4).jpg

Specifications

Model	ZQJ/Z 250×2-100×14-Ⅰ	ZQJ/Z 250×2-100×10-Ⅰ
Rated Frequency	50/60	50/60
Desander Cyclone Size	Φ250mm	Φ250mm
Desander Separation Point	40~74ΜM	40~74ΜM
Desander QTY& Material	Polyurethane 2ea	Polyurethane 2ea
Desander Capacity	200 M³/H	200 M³/H
Desander Inlet Pressure	0.15～0.35 Mpa	0.15～0.35 Mpa
Desalter Cyclone Size	Φ100mm	Φ100mm
Desander Separation Point	20~44ΜM	20~44ΜM
Desalter Capacity	155 M³/H。	115 M³/H。
Desander Inlet Pressure	0.25～0.45。	0.25～0.45。
Desander Separation Point	44~74ΜM	15-44ΜM
Desander QTY& Material	Polyurethane 14ea	Polyurethane 10ea
Bottom Shaker	GX/Z	GX/Z
Dimension	3260x2040x2530mm	3260x2040x2530mm
Weight	3515kg	3455kg
