Gamboss EXDIIBT4/IECEX Ex-Proof Motor Drive 24/36/48 Length 12/14/16inch Horizontal Diagonal Hopper Crew Conveyor

< >

Features
Specification

Gamboss EXDIIBT4/IECEX Ex-Proof Motor Drive 24/36/48 Length 12/14/16inch Horizontal Diagonal Hopper Crew Conveyor

Product information:

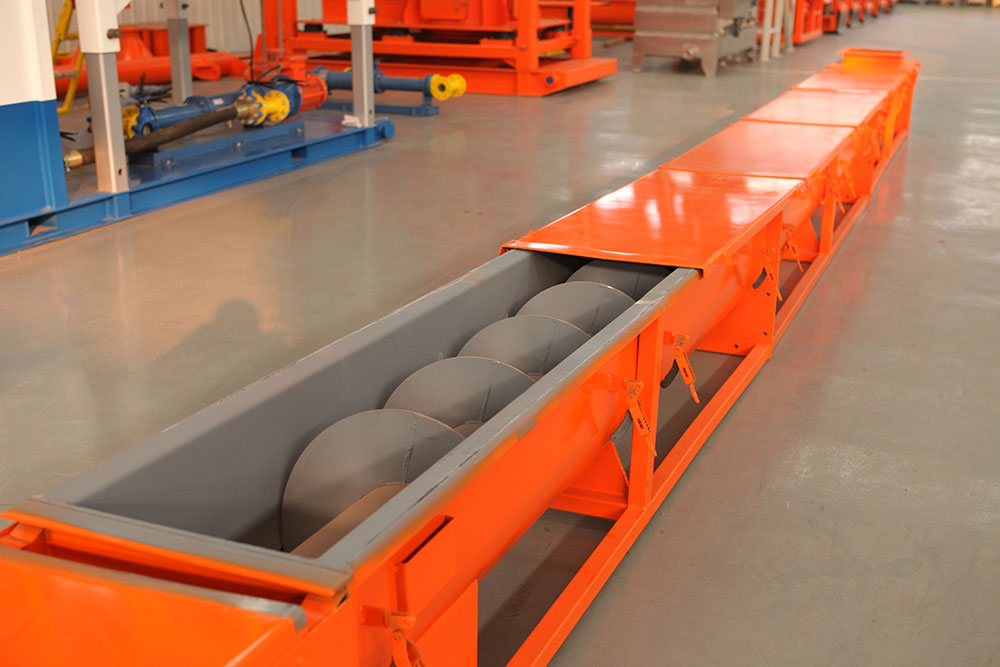

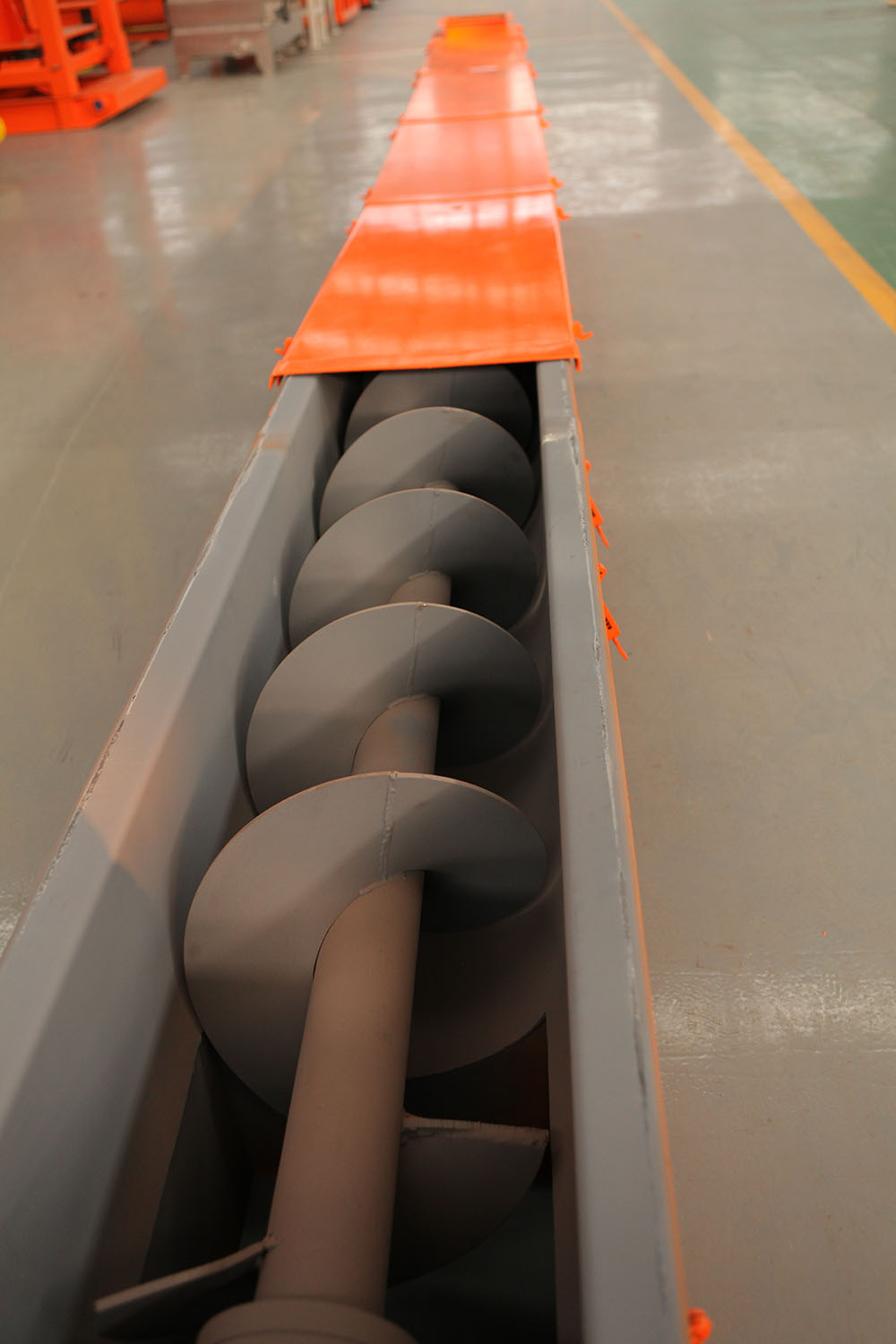

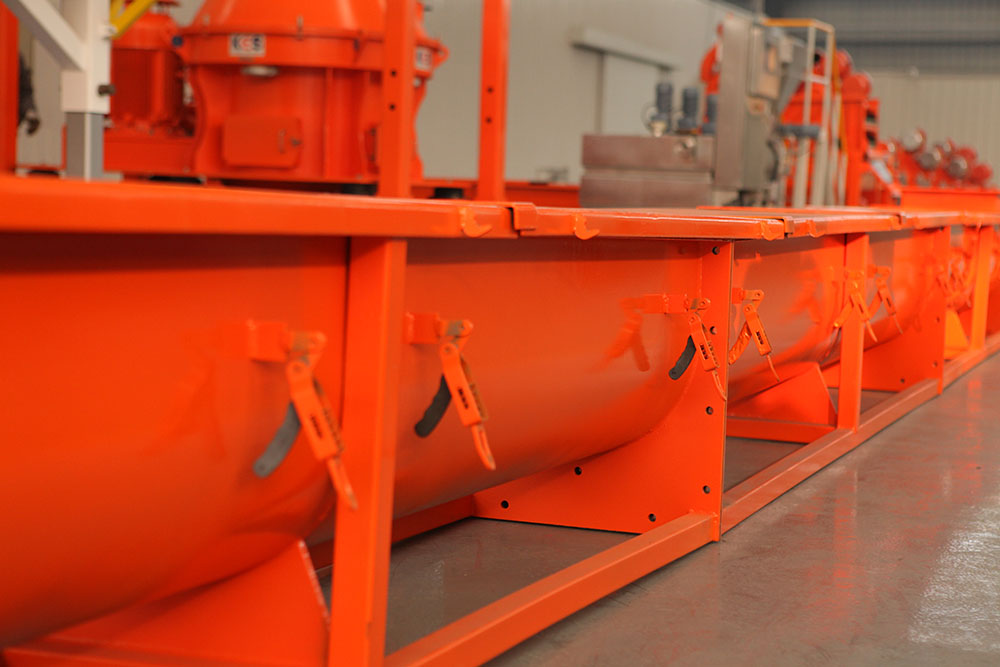

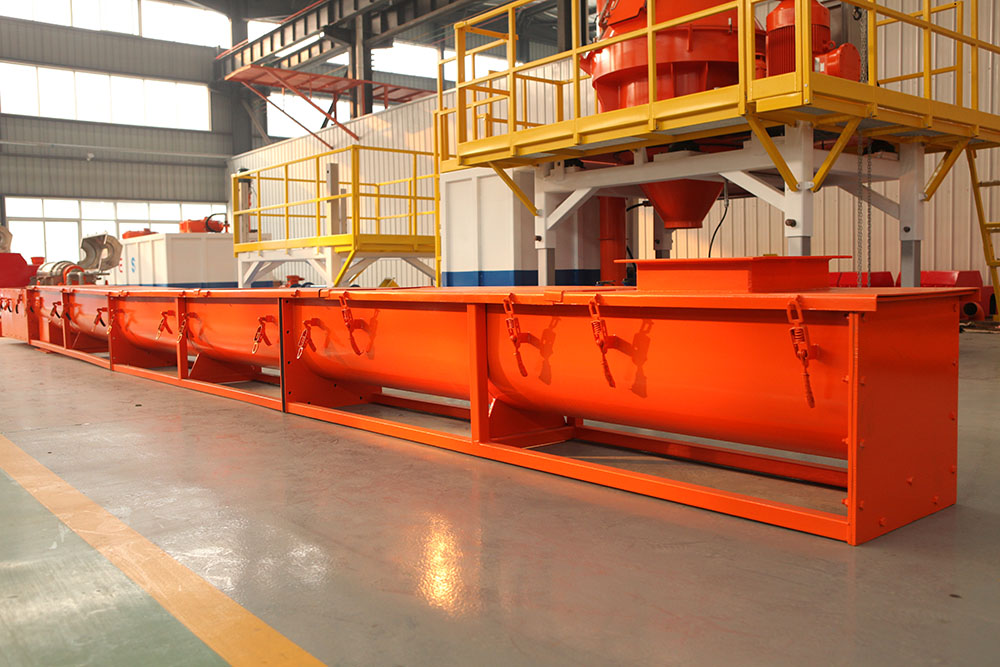

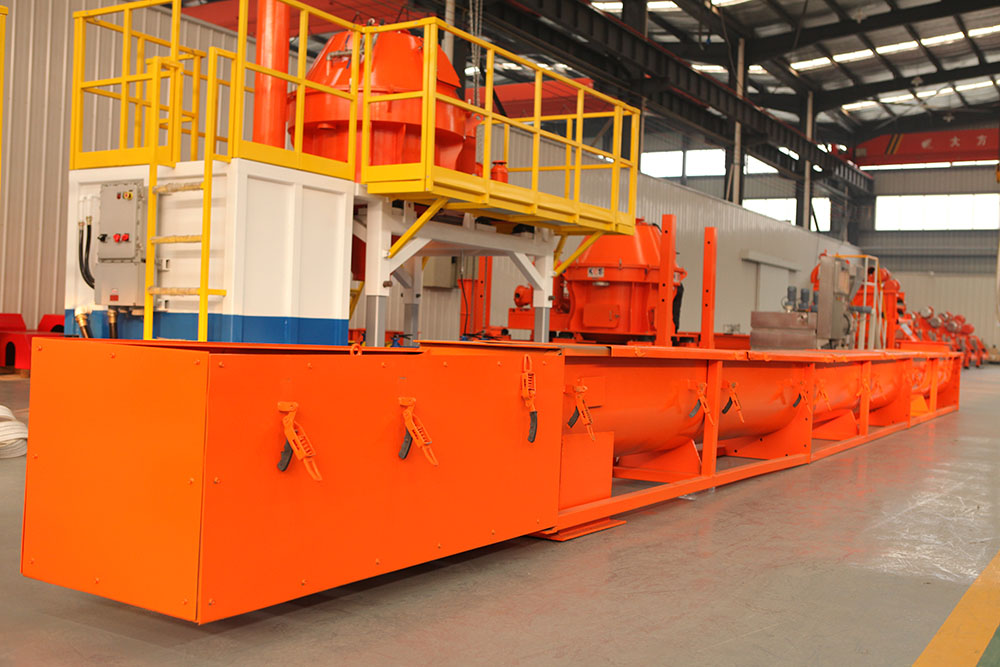

Screw conveyor, also called as screw feeding machine, mainly used for conveying drilling waste and works as support equipment in drilling waste management system. It can be classified as horizontal screw conveyor and diagonal hopper screw conveyor, can be matched with other transportation equipment to complete the combined or separate transportation etc.

Gamboss crew convyor (2).jpg

Gamboss crew convyor (3).jpg

Gamboss crew convyor (4).jpg

Gamboss crew convyor (5).jpg

Gamboss crew convyor (6).jpg

Gamboss crew convyor (7).jpg

Gamboss crew convyor (8).jpg

Gamboss crew convyor (9).jpg

Specifications

Model	Diameter (inch)	Length (inch)	Capacity (ton/h)	Power (kW)	Speed (rpm)	Weight (kg)	Dimensions(mm)
KALX12-24	12	24	20	5.5	60	1426	9150x450x600
KALX12-36	12	36	20	7.5	60	1855	12950x450x600
KALX12-48	12	48	20	11	60	2318	16750x450x600
KALX14-24	14	24	30	7.5	60	1515	9200x485x650
KALX14-36	14	36	30	11	60	2028	13000x485x650
KALX14-48	14	48	30	15	60	2549	16800x485x650
KALX16-24	16	24	45	11	60	1668	9200x545x680
KALX16-36	16	36	45	15	60	2269	13050x545x680
KALX16-48	16	48	45	18.5	60	3344	16950x545x680
Remark: The capacity is according to the speed 60rpm in horizontal layout
