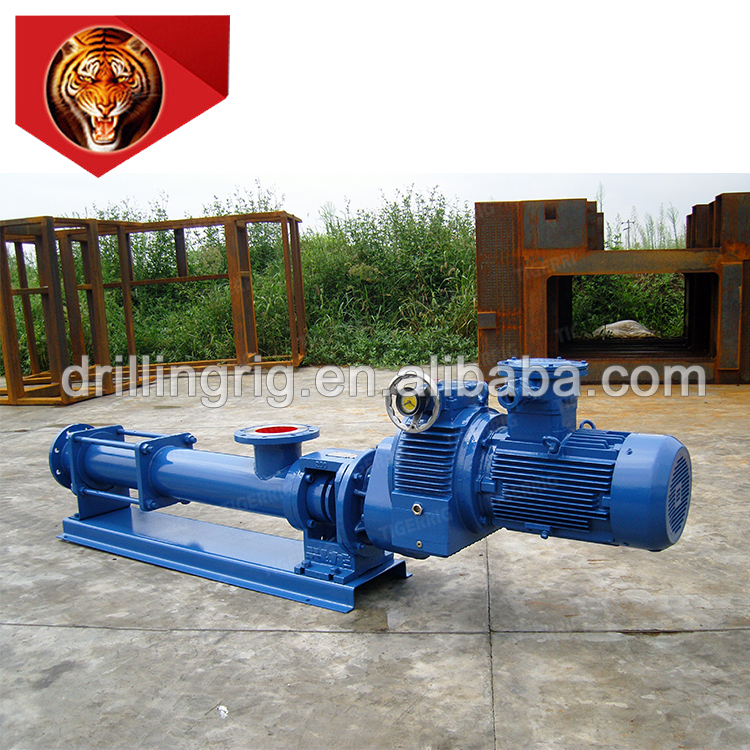

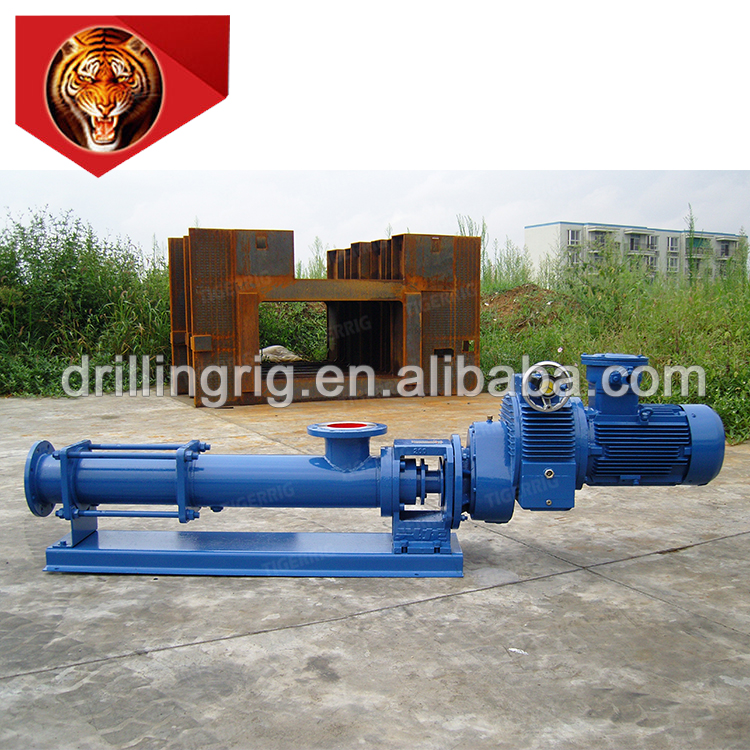

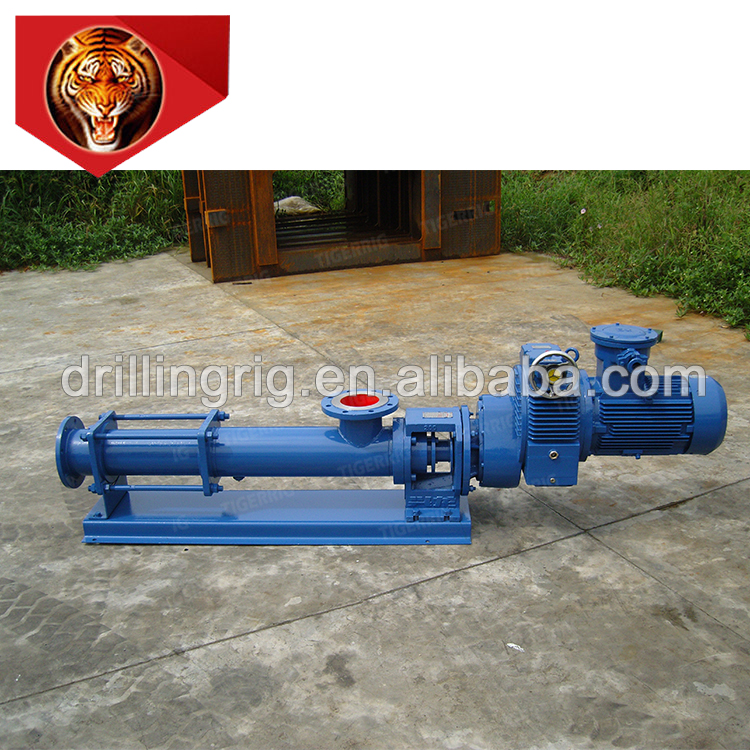

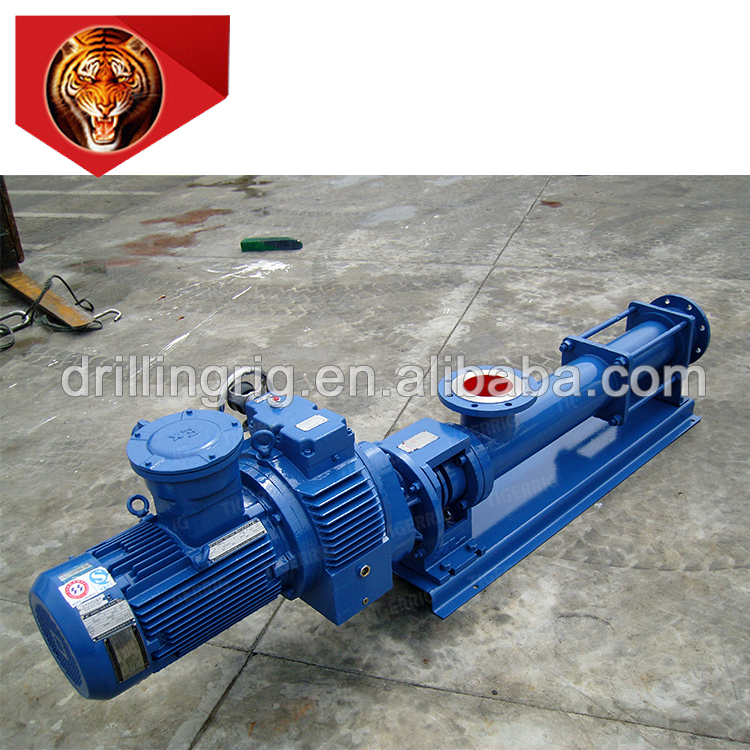

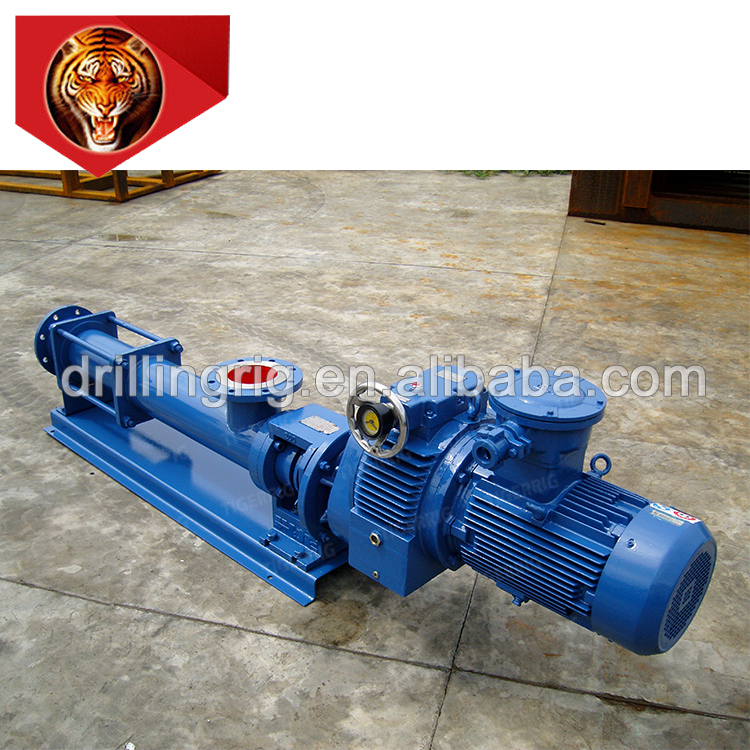

Gamboss Low Fluctuate High Quality Powerful Solid Control System Screw Pump

< >

Features
Specification

Gamboss Low Fluctuate High Quality Powerful Solid Control System Screw Pump

Main characteristics：

1. High viscidity medium.

2. Medium contain solid granule and fiber.

3. Continuous operation, stable pressure without fluctuation.

4. Low fluctuate, cannot destroy the structure of granule be transported.

5. Low fluctuate, cannot destroy the structure of granule be transported.

Gamboss screw pump specification (3).JPG

Gamboss screw pump specification (1).JPG

Gamboss screw pump specification (2).JPG

Gamboss screw pump specification (4).JPG

Gamboss screw pump specification (5).JPG

Gamboss screw pump specification (6).JPG

Gamboss screw pump specification (7).JPG

Specifications

Model	Flow（m3/h)	Pressure（Mpa）	Motor power（KW）	Max rotating speed	Inlet size	Outlet size	Explosion proof standard	Weighth（KG)	Size：(mm)
G10A-040	10	0.3	4	244	DN80	DN80	EXdIIBt4/ IECEX/A-TEX	245	2245×320×550
G20A-055	20	0.3	5.5	210	DN80	DN80		323	2450×340×562
G30A-075	30	0.3	7.5	258	DN100	DN100		386	2761×370×600
G40A-110	40	0.3	11	252	DN100	DN100		454	3270×370×665
G50A-110	50	0.3	11	273	DN125	DN125		608	3790×400×782
G60A-150	60	0.3	15	225	DN125	DN125		649	3322×550×740
G70A-220	70	0.3	22	230	DN150	DN150		875	3740×420×785
G80A-220	80	0.3	22	283	DN150	DN150		875	3740×420×785
G90A-220	90	0.3	22	205	DN150	DN150		875	3740×420×785
